Daikin EPRA12EAW1 - Installing the Outdoor Unit

7 | Unit installation
Installer reference guide
74
EPRA08~12EAV3+W1 + ETVH12SU18+23EA6V
Daikin Altherma 3 H MT F
4P644482-1 – 2021.03

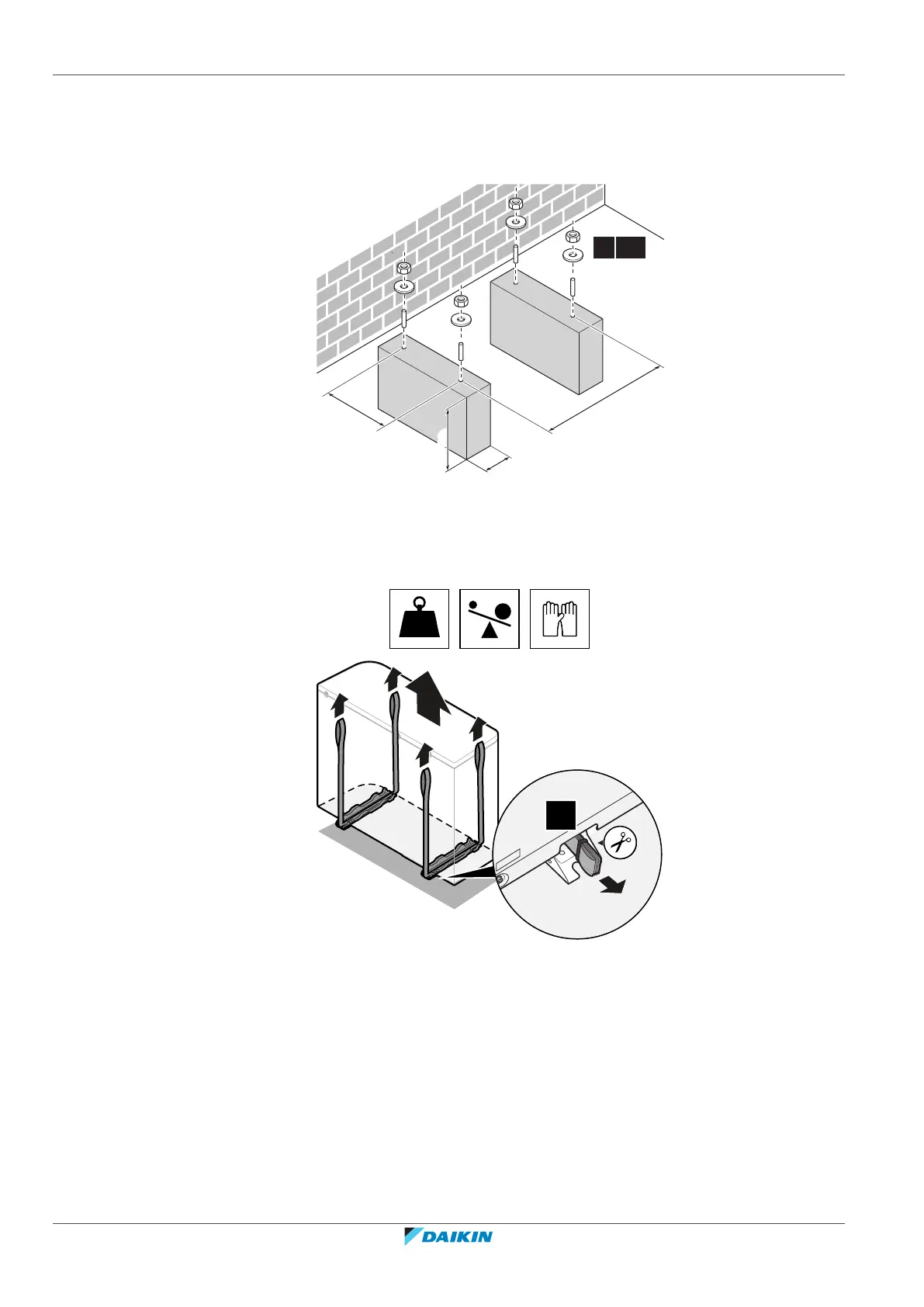

Pedestal
When installing on a pedestal, make sure that the discharge grille still can be put in
its safety position. See "7.3.7To remove the discharge grille, and put the grille in
safety position"[478].
800
479
a
≥150
(mm)
4× M12
a Make sure not to cover the drain hole in the bottom plate of the unit.
7.3.4 To install the outdoor unit
1 Carry the unit by its slings, and put it onto the installation structure.
±120
kg
4×
2 Fix the unit to the installation structure.
