Daikin FDYB30CV1M - Refrigerant Piping

3
English
Note: If the obstacle is higher than 2 m or if there is any obstruction at the upper part of the unit allow more space than indicated in
the table above.
Return Air
Service
Access
Discharge
Air
Return Air
Obstacle
Obstacle

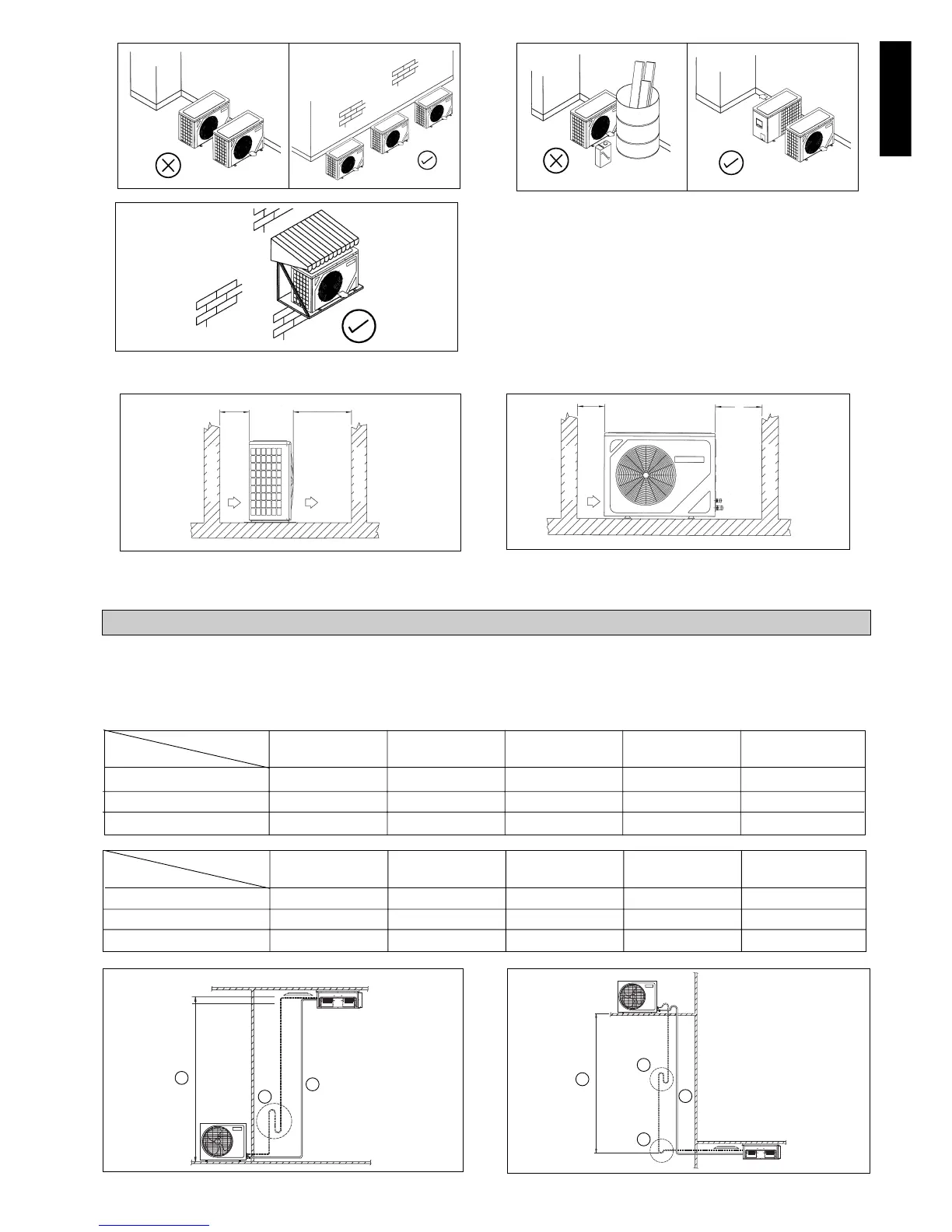

Outdoor Unit SL Series Clearance (in mm)
Obstacle
Obstacle
300
1000
300
500
REFRIGERANT PIPING
Maximum Pipe Length And Maximum Number Of Bends
When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping
resistance to the refrigerant flow increases, thus lowering the cooling capacity. As a result, compressor reliability will be affected.
Always choose the shortest path and follow the recommendation as tabulated below:
Model FDYM30CV1M FDYM40CV1M FDYM60CV1M FDYM71CV1M FDYM80CV1M
Data FDYB30CV1M FDYB40CV1M FDYB60CV1M FDYB71CV1M
Maximum Length, A m (ft) 12 (39.4) 12 (39.4) 15 (49.2) 15 (49.2) 15 (49.2)
Maximum Elevation, B m (ft) 5 (16.4) 5 (16.4) 8 (26.2) 8 (26.2) 8 (26.2)
Maximum No. of Bends, C 10 10 10 10 10
Model FDYM90CV1M FDYM100CV1M FDYM125CV1M FDYM140CV1M FDYM160CV1M
Data FDYB90CV1M FDYB125CV1M FDYB140CV1M FDYB160CV1M
Maximum Length, A m (ft) 45 (147.6) 45 (147.6) 45 (147.6) 45 (147.6) 35 (114.8)
Maximum Elevation, B m (ft) 25 (82.0) 25 (82.0) 25 (82.0) 25 (82.0) 15 (49.2)
Maximum No. of Bends, C 10 10 10 10 10
The location must be well-ventilated, so that the unit can draw
in and distribute plenty of air thus lowering the temperature.
A place capable of bearing the weight of the outdoor unit as
well as isolating noise and vibration.
A place protected from the direct sunlight. Use an awning for
protection if necessary.
The installation location must not be susceptible to highly
concentrated dust, oil, salt or sulfide gas.
A
C
B
A
C
B
C
