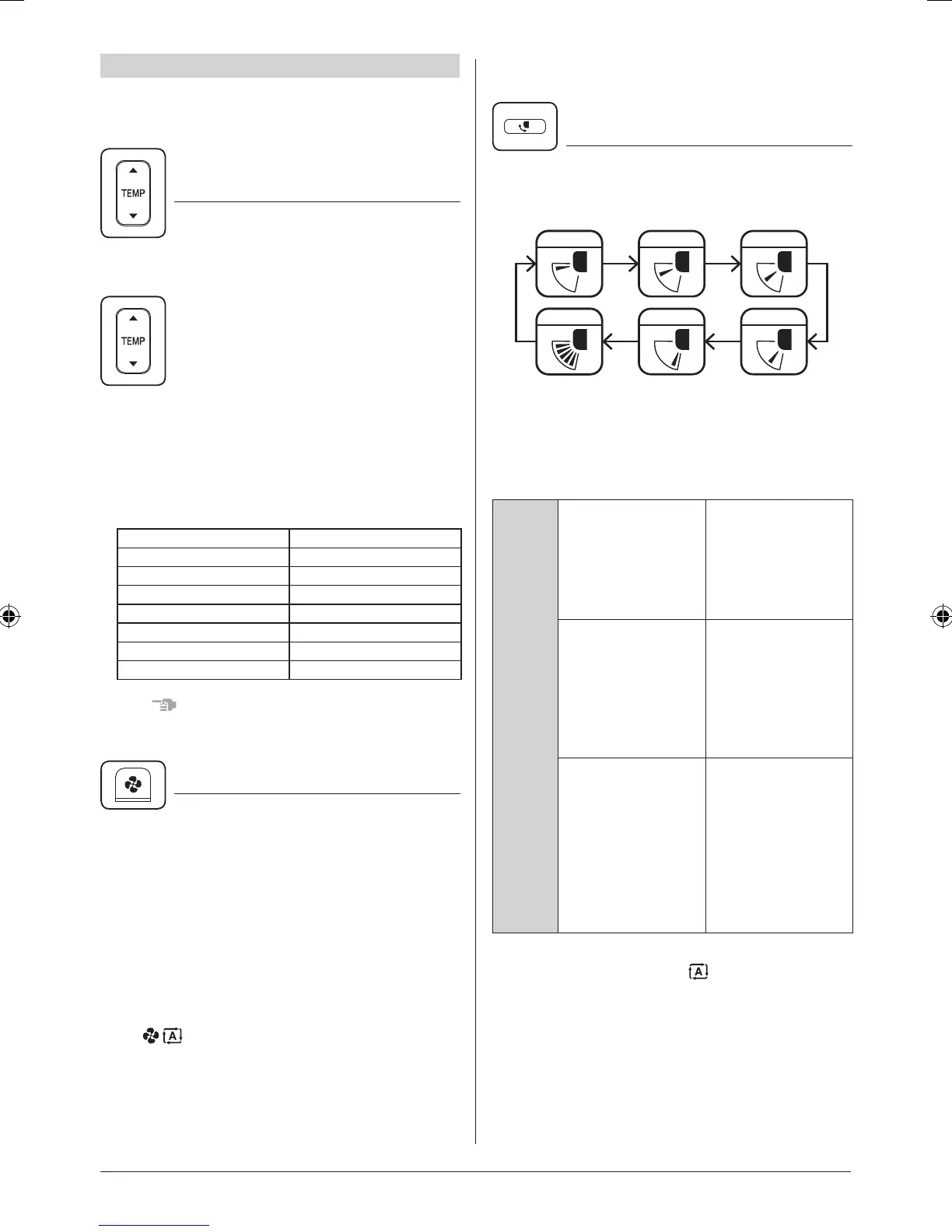

ADJUSTMENT
For programming TEMPERATURE, FAN SPEED
and AIRFLOW DIRECTION, follow the procedure
shown below.
TEMPERATURE SETTING
Press TEMPERATURE SETTING button
and programme the set temperature.
Each time this button is pressed, set
temperature rises 1°C.
Each time this button is pressed, set
temperature lowers 1°C.
•Temperature cannot be set in FAN
OPERATION and DRY OPERATION modes.
In case of AUTOMATIC OPERATION
•In AUTOMATIC OPERATION mode, the
relative temperature as compared to the
standard set temperature is displayed.
Remote controller display Set temperature [°C]
STD -3 19
STD -2 20
STD -1 21
STD 22
STD +1 23
STD +2 24
STD +3 25
NOTE
•The set temperature range of the remote
controller is 16°C to 32°C.
FAN SPEED CONTROL
Press FAN SPEED CONTROL button.
Fan speed can be selected.
•The micro computer may sometimes control
the fan speed in order to protect the unit.
•The fan speed may be changed automatically
depending on the indoor temperature.
The fan may be stopped, but this is normal.
•Itmaytakesometimeuntiltheairowswitchis
completed, but this is normal.
•Fan speeds supported depend on the model
that is connected.
•In “ ” (Auto), the fan speed is adjusted
according to the set temperature and the
temperature in the room.
However, in FAN OPERATION mode, fan
speedisxed.
•The fan speed will not be displayed if the indoor
unit does not have fan speed control function.
UP AND DOWN AIRFLOW
DIRECTION ADJUSTMENT
Theup/downairowdirectionpositionswitches
eachtimetheup/downairowdirectionbuttonis
pressed.
P0
P0 P1 P2
P0
Swing
P4 P3
Movementoftheairowdirectionblades
Under the operating conditions described below,
airowdirectioniscontrolledautomatically,soit
maydifferfromtheairowdirectiondisplayedon
the remote controller.
Operating
conditions
When the room
temperature is
higher than the
set temperature
(for HEATING
OPERATION)
The air is blown
horizontallyso
thattheairowis
not directed at the
body.
When HEATING
OPERATION
starts and when
in DEFROST
OPERATION mode
(for HEATING
OPERATION)
The air is blown
horizontallysothat
thecoldairowis
not directed at the
body.
During continuous
operation with
the air blowing
downward or
horizontally
The air conditioner
operates with a
differentairow
direction for a
certain period of
time to prevent
condensation build-
upontheairow
direction blades.
* HEATING OPERATION mode includes cases in
which operation is set to “ ”.
English 8
