11
Application Information
C series

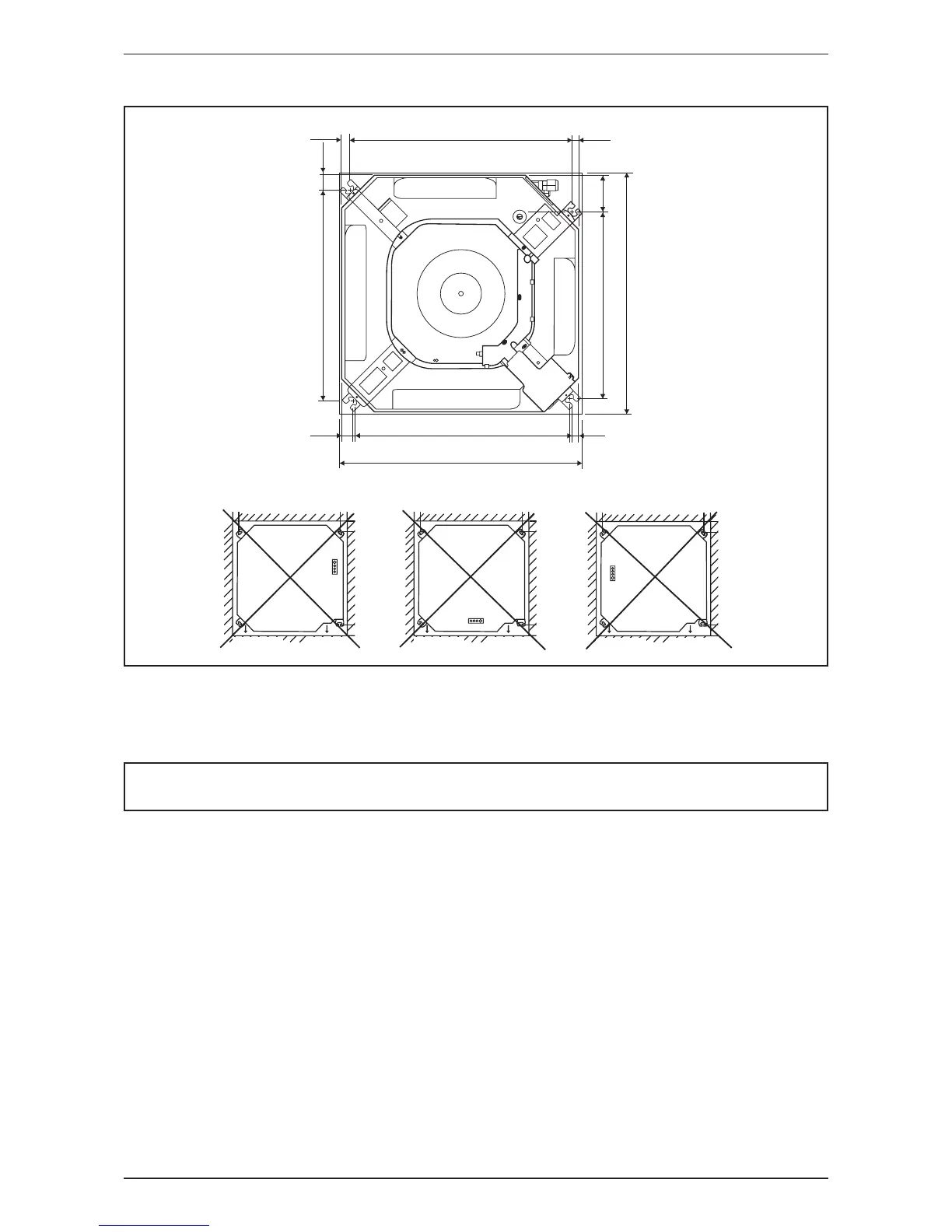

WATER DRAINAGE
PIPING DIRECTION
REFRIGERANT
PIPING DIRECTION
LED
WATER DRAINAGE
PIPING DIRECTION
LED
REFRIGERANT
PIPING DIRECTION
WATER DRAINAGE
PIPING DIRECTION
LED
REFRIGERANT
PIPING DIRECTION
538.0
18.0
32.0 529.0
580.0 ~ 610.0mm (CEILING OPENING MEASUREMENT)
580.0 ~ 610.0mm (CEILING OPENING MEASUREMENT)
505.0
448.0
38.0
15.0
19.0
88.0
All dimensions are in mm
• Measure and mark the position for the hanging rod. Drill the hole for the angle nut on the ceiling and x the hanging
rod.
• The installation template is extended according to temperature and humidity. Check on dimensions in use.
• The dimensions of the installation template are the same as those of the ceiling opening dimensions.
• Before ceiling laminating work is completed, be sure to t the installation template to the indoor unit.
NOTE
Be sure to discuss the ceiling drilling work with the installers concerned.
