Application Information
Unit Installation
F Series C Series
Indoor Unit
Ceiling Board
38mm
570 (UNIT SIZE)
30
250
All dimensions are in mm
• Hold the unit and hang it on the hanging rod with the nut and washer.
• Adjust the unit height to 38mm and 30mm respectively depending on series between the indoor unit bottom surface
and the ceiling surface.
• Conrm with a level gauge that the unit is installed horizontally and tighten the nut and bolt to prevent unit falling and
vibration.
• Open the ceiling board along the outer edge of the paper installation template.

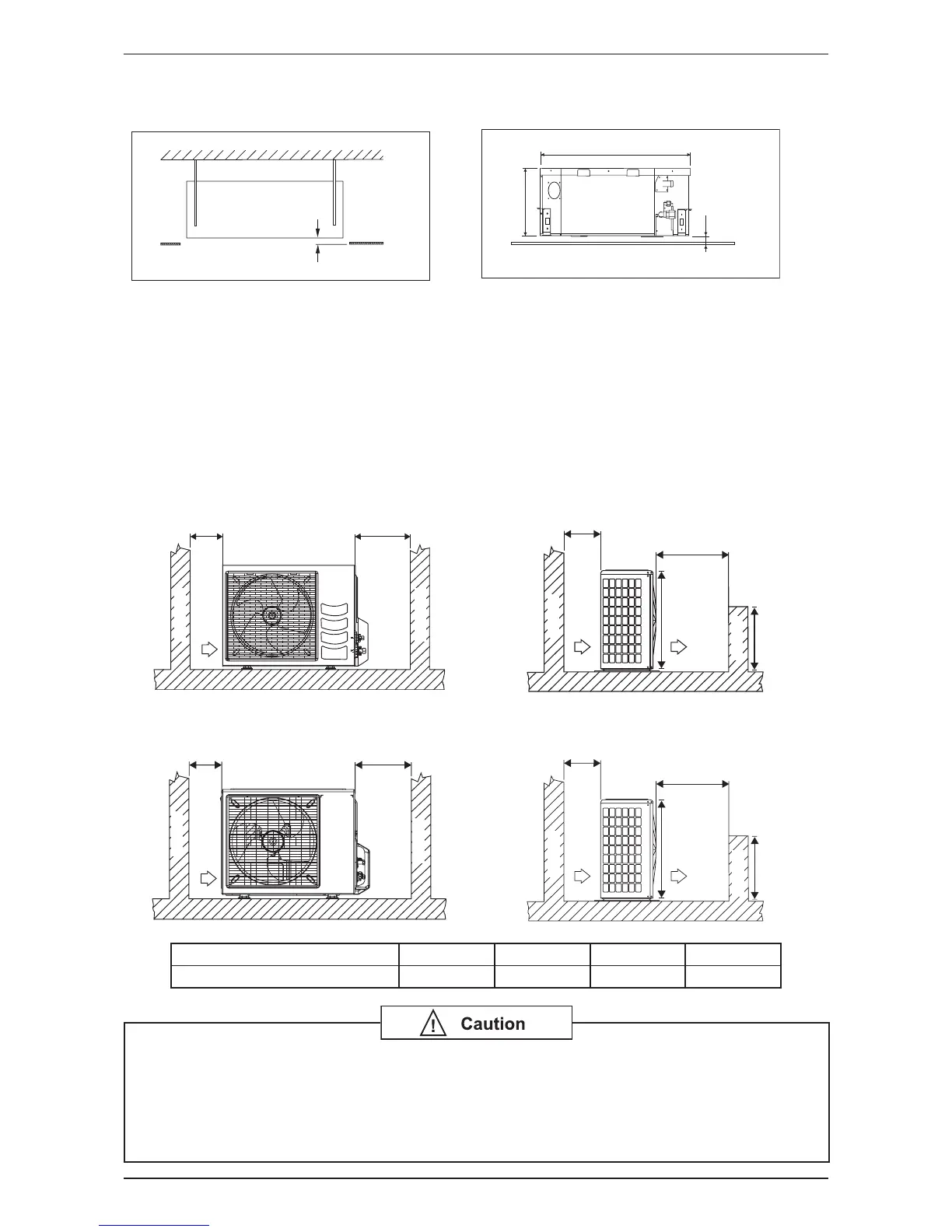

2) Outdoor Installation Clearance
Outdoor unit must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth
air ow. Select the coolest possible place where intake air should not hotter than the outside temperature
(Max. 45°C).
RN10/15FV1
Return air
Service access
C
D
Obstacle
Obstacle
Return air
Discharge air
A
Obstacle
Obstacle
B
H/2
H
RN20/25/30/35DV1, RN40/50DY1
Obstacle
Return air
Service access
DC
Obstacle
Return air
Discharge air
A
Obstacle
Obstacle
B
H/2
H
Dimensions A B C D
Minimum Distance, mm 300 1000 300 500
Avoid installing or operating the condensing unit in the environment that is exposed to the
following substances:
• Oils (including machine oils)
• Salt (e.g. coastal area)
• Sulphide gas (e.g. hot spring areas, oil renery plant, etc)
Such substance may lead to the failure of the unit.
