NOTE
Install the front frame panel À rmly to prevent cool air leakage which will cause condensation and water dripping.

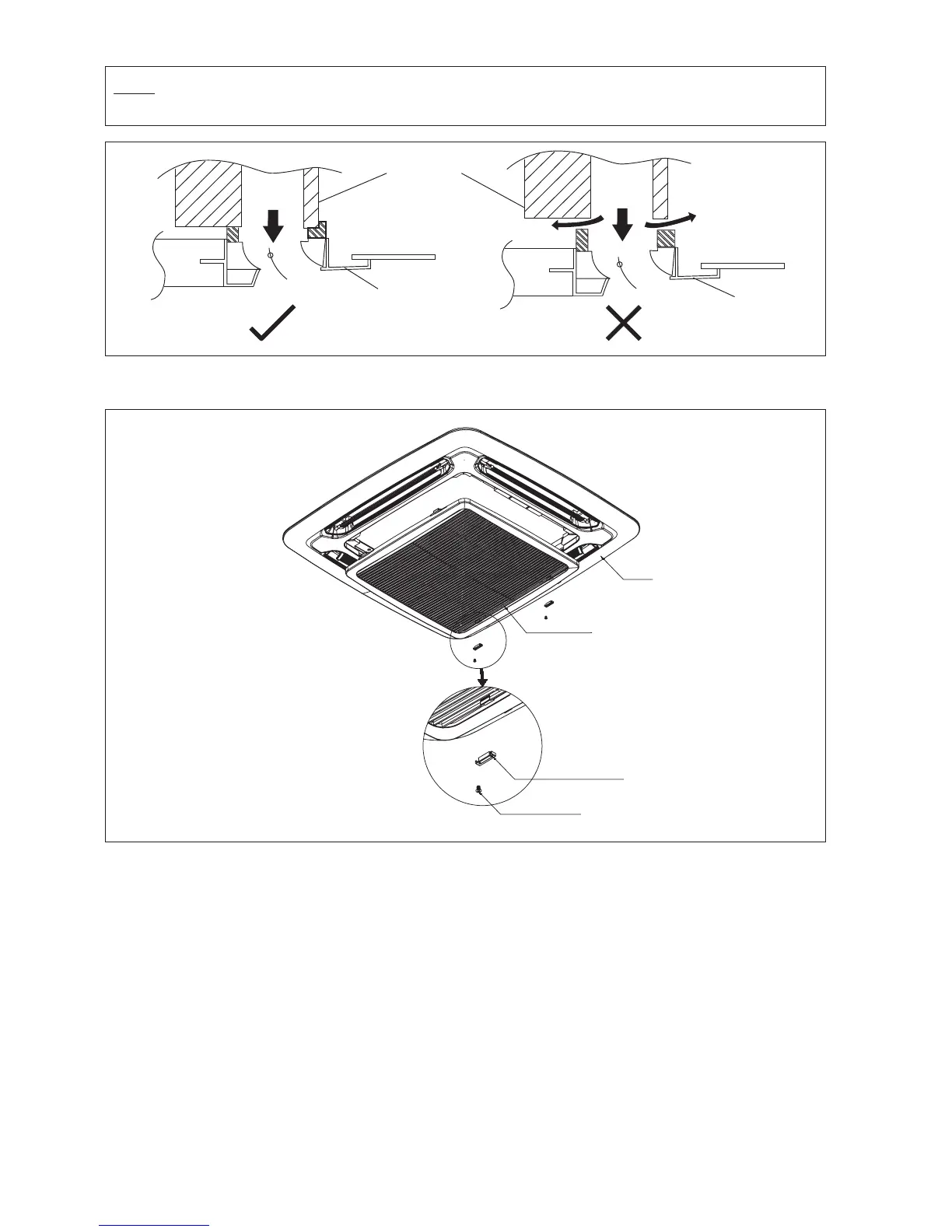

Grille Lock Cover (The moving part protection for user direct touching)
Grille lock cover must be installed as the À gure below.
If the unit need to be service, steps below shall be followed:
ConÀ rm that the unit had been switched off before servicing the unit.
Use screwdriver to unlock the screw on the grille lock cover.
Remove the grille lock cover and open the intake grille for the service purpose.
Install the intake grille and screw the grille lock cover after service and make sure the unit is proper install.
1.
2.
3.
4.
Frame
Intake Grille
Grille Lock Cover
(2pcs)
Screw 4 x 6
(2pcs)
Indoor Unit
Cool
Air
Ceiling Board
Panel
Air Leak
Cool
Air
Air Leak
Ceiling Board
Panel
