1-1
English
N
L
KL
QN
M
A
D
O
BP
RS
C
HG
E
IJ
F
All dimensions are in mm
A
B
C
D
E
F
H
K
J
I
G
Outdoor Unit
All dimensions are in mm

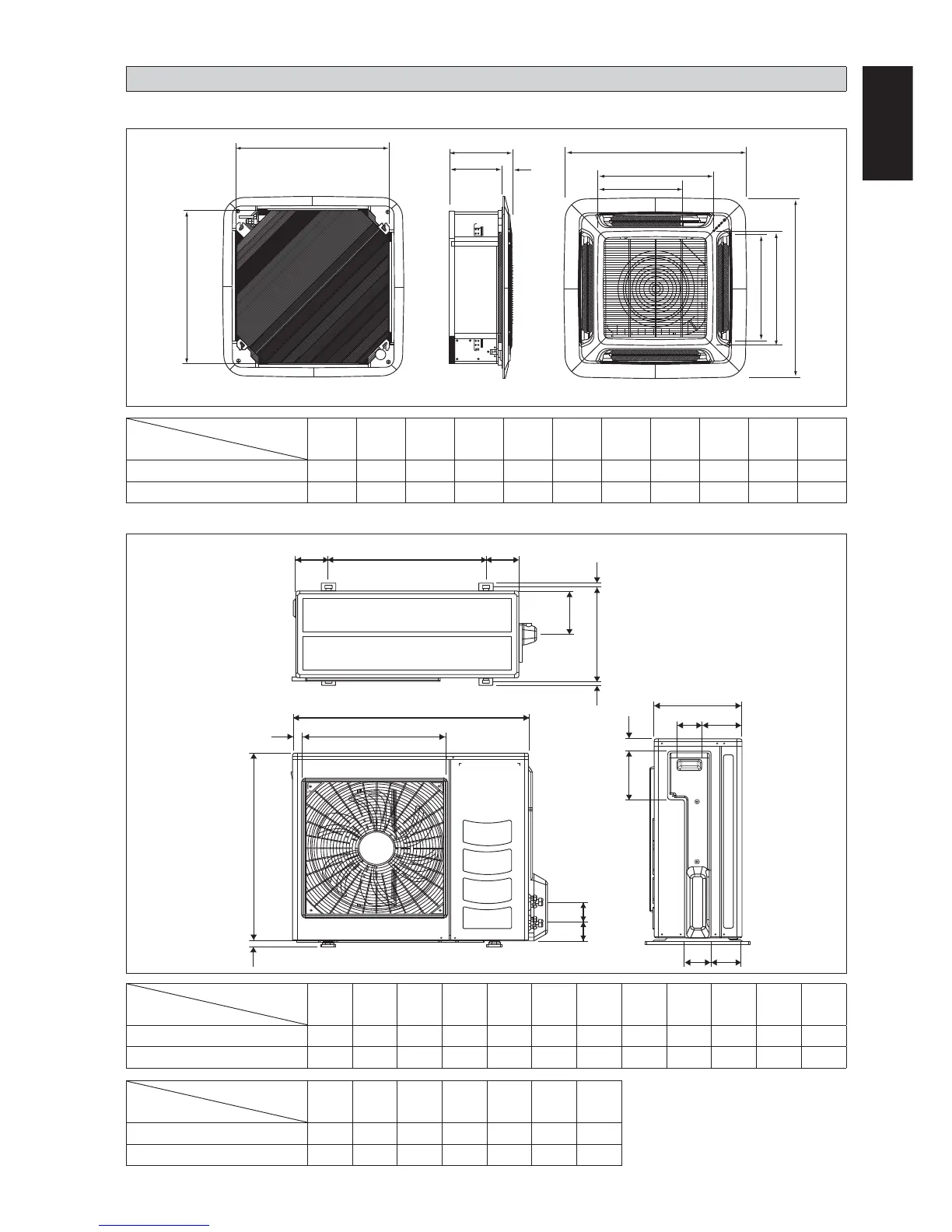

OUTLINE AND DIMENSIONS
Indoor Unit
Dimension
Model
ABCDEFGH I JKL
R(Y)D20JEVLK 855 628 328 520 179 46 93 149 101 113 603 126
R(Y)D25/30JEVLK 855 730 328 520 179 46 93 149 101 113 603 126
Dimension
Model
MNO PQR S
R(Y)D20JEVLK 164 15 34 23 362 73 75
R(Y)D25/30JEVLK 164 15 34 23 362 73 75
Dimension
Model
ABCDEFGH I JK
FH(Y)C20/25/30JEVLK 820 820 340 300 40 990 990 627 627 607 430
FH(Y)C40/50JEVLK 820 820 375 335 40 990 990 627 627 607 430
Original Instruction
EN CKE-0911(0)DK(saso).indd 1 12/6/11 3:05:07 PM
