7 Maintenance and service
User reference guide
7
FNA25~60A2VEB(9)
Split system air conditioners
4P543324-3 – 2018.08
NOTICE
Maintenance MUST be done by an authorized installer or
service agent.
We recommend performing maintenance at least once a
year. However, applicable legislation might require shorter
maintenance intervals.
DANGER: RISK OF ELECTROCUTION
To clean the air conditioner or air filter, be sure to stop
operation and turn all power supplies off. Otherwise, an
electric shock and injury may result. In case the unit is
equipped with a refrigerant leakage sensor, turn the power
supply breaker back on immediately after cleaning in order
to maintain detection functionality.
WARNING
To prevent electric shocks or fire:
▪ Do NOT rinse the unit.
▪ Do NOT operate the unit with wet hands.
▪ Do NOT place any objects containing water on the unit.
CAUTION
After a long use, check the unit stand and fitting for
damage. If damaged, the unit may fall and result in injury.
CAUTION
Do NOT touch the heat exchanger fins. These fins are
sharp and could result in cutting injuries.
NOTICE
When cleaning the heat exchanger, make sure to remove
the switch box and fan motor. Water or detergent might
deteriorate the insulation of electronic components and
result in burnout of these components.
WARNING
Be careful with ladders when working in high places.
7.2 Cleaning the air filter, suction
grille, air outlet and outside panels
7.2.1 To clean the drain pan
Clean the drain pan so that it does NOT become clogged and dusty.
Cover the drain pan to prevent dust from entering it.
7.2.2 To clean the air outlet and outside panels
WARNING
Do NOT let the indoor unit get wet. Possible
consequence: Electric shock or fire.
NOTICE
▪ Do NOT use gasoline, benzene, thinner polishing
powder or liquid insecticide. Possible consequence:
Discoloration and deformation.
▪ Do NOT use water or air of 50°C or higher. Possible
consequence: Discoloration and deformation.
▪ Do NOT scrub firmly when washing the blade with
water. Possible consequence: The surface sealing
peels off.
Clean with a soft cloth. If it is difficult to remove stains, use water or
neutral detergent.
7.2.3 To clean the air filter
When to clean the air filter:
▪ Rule of thumb: Clean every 6 months. If the air in the room is
extremely contaminated, increase the cleaning frequency.
▪ Depending on the settings, the user interface can display the
TIME TO CLEAN AIR FILTER notification. Clean the air filter
when the notification is displayed.
▪ If the dirt becomes impossible to clean, change the air filter
(=optional equipment).

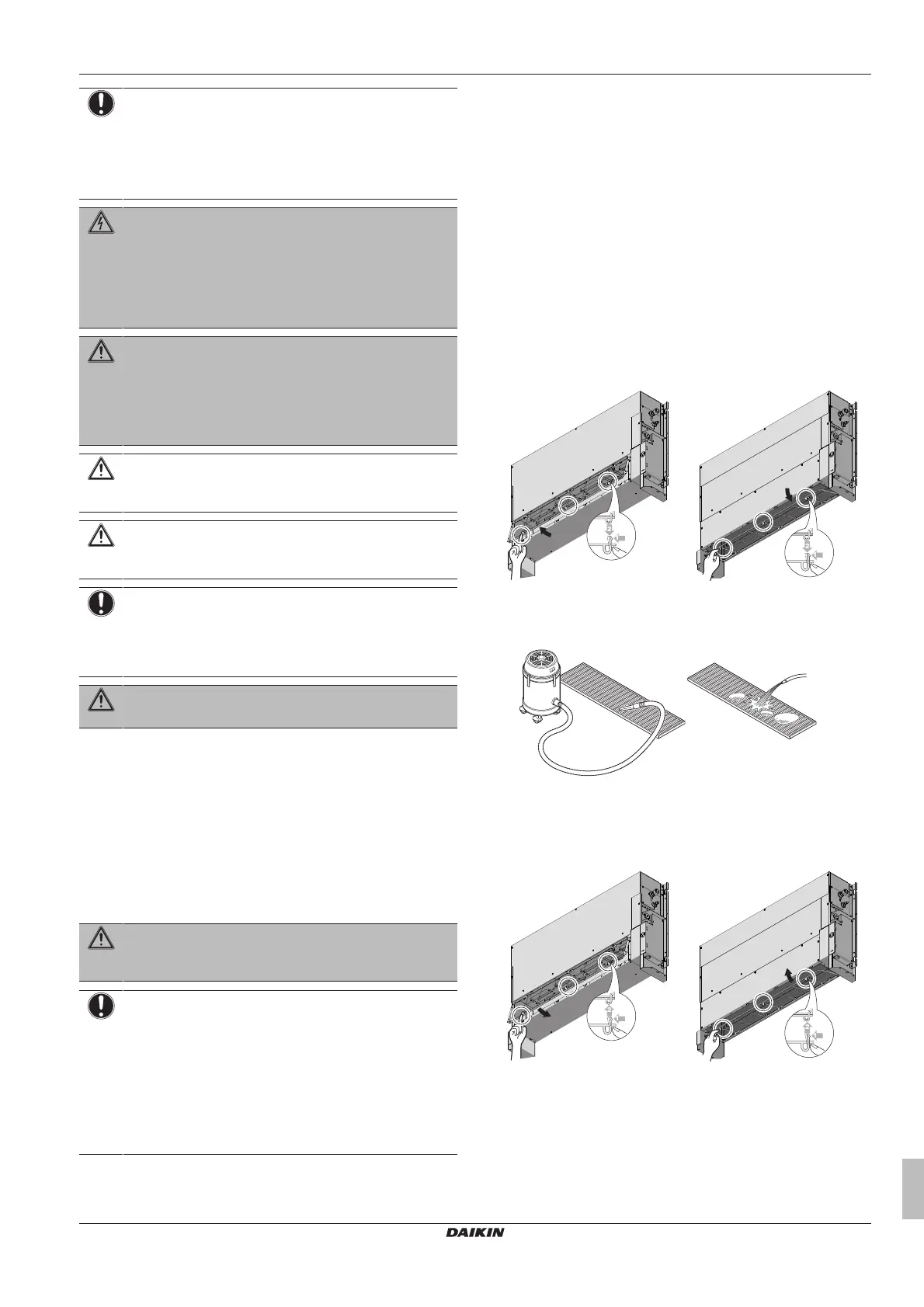

How to clean the air filter:
1 Turn OFF the power.
2 Remove the air filter. Push the hooks and pull the filter as
shown in the illustration below. (2 hooks for 25 and 35 type or 3
hooks for 50 and 60 type)
front suction bottom suction
2
1
2
1
3 Clean the air filter. Use a vacuum cleaner or wash with water.
If the air filter is very dirty, use a soft brush and neutral
detergent.
4 Dry the air filter in the shadow.
5 Reattach the air filter. Hook the filter behind the flap and
attach the filter to the main unit while pushing down the hooks.
front suction bottom suction
2
1
2
1
6 Turn ON the power.
7 Press the FILTER SIGN RESET button.
Result: The TIME TO CLEAN AIR FILTER notification disappears
from the user interface.
