Daikin FT18BV1LS - Air Flow Direction Adjustment (Continued); Manual Vertical Louver Adjustment (13 Class); Louver Angle Safety Notes

13
■

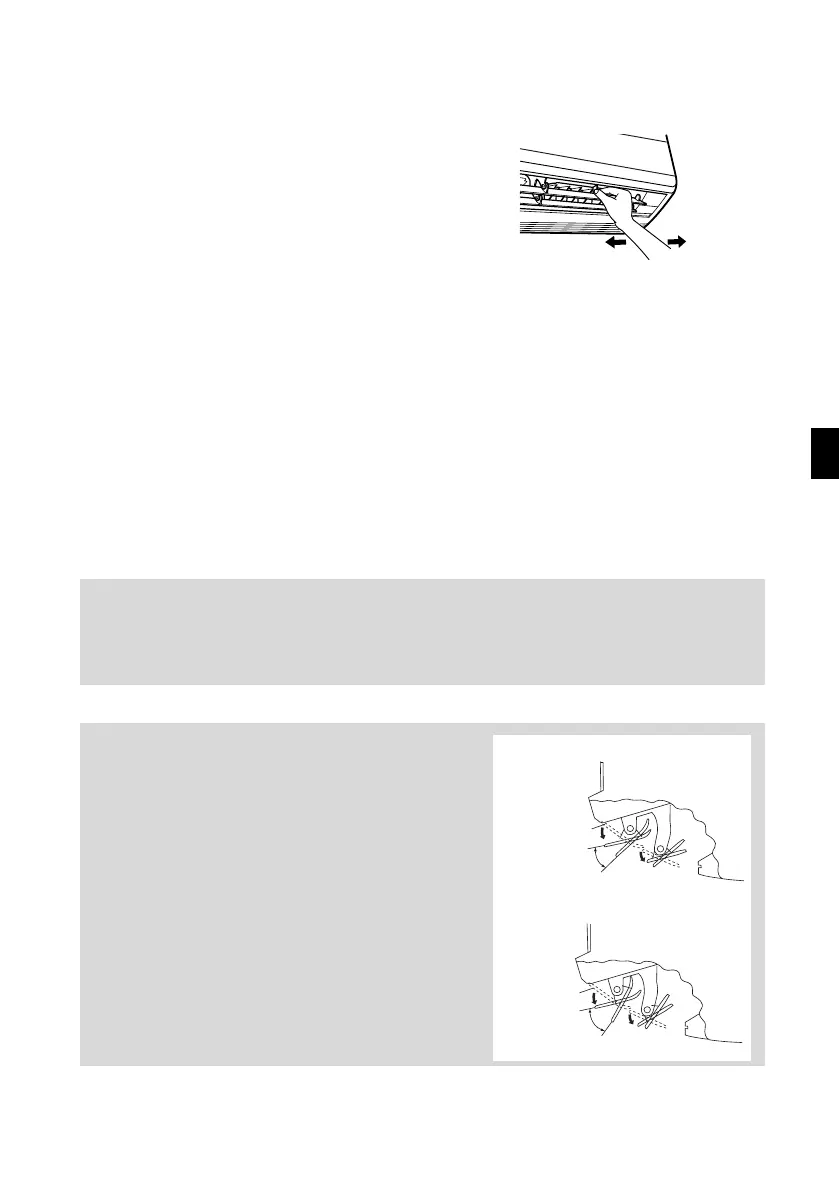

To adjust the vertical blades
(louvers)
(13 class only)
Hold the knob and move the louvers.
(You will find a knob on the left-side and the right-side blades.)
Notes on louvers angles
Notes on flap angle
■ ATTENTION
• Always use a remote controller to adjust the louvers angles. In side the air outlet, a fan is rotating at a
high speed. (18, 24 class only)
• Be careful when adjusting the louvers. Inside the air outlet, fan is rotating at a high speed.
(13 class only)
• When “ SWING button ” is selected, the flaps swinging
range depends on the operation mode. (See the figure.
)
Three-Dimensional (3-D) Airflow
• Using three-dimensional airflow circulates cold air,
which tends to collected at the bottom of the room, and
hot air, which tends to collect near the ceiling, through-
out the room, preventing areas of cold and hot develop-
ing.
■ ATTENTION
• Always use a remote controller to adjust the flaps angle.
If you attempt to move it forcibly with hand when it is
swinging, the mechanism may be broken.
STOP
COOL
approx. 10˚~40˚
DRY
approx. 5˚~35˚
In COOL or DRY mode
STOP
In FAN mode
FAN
approx. 5˚~55˚
