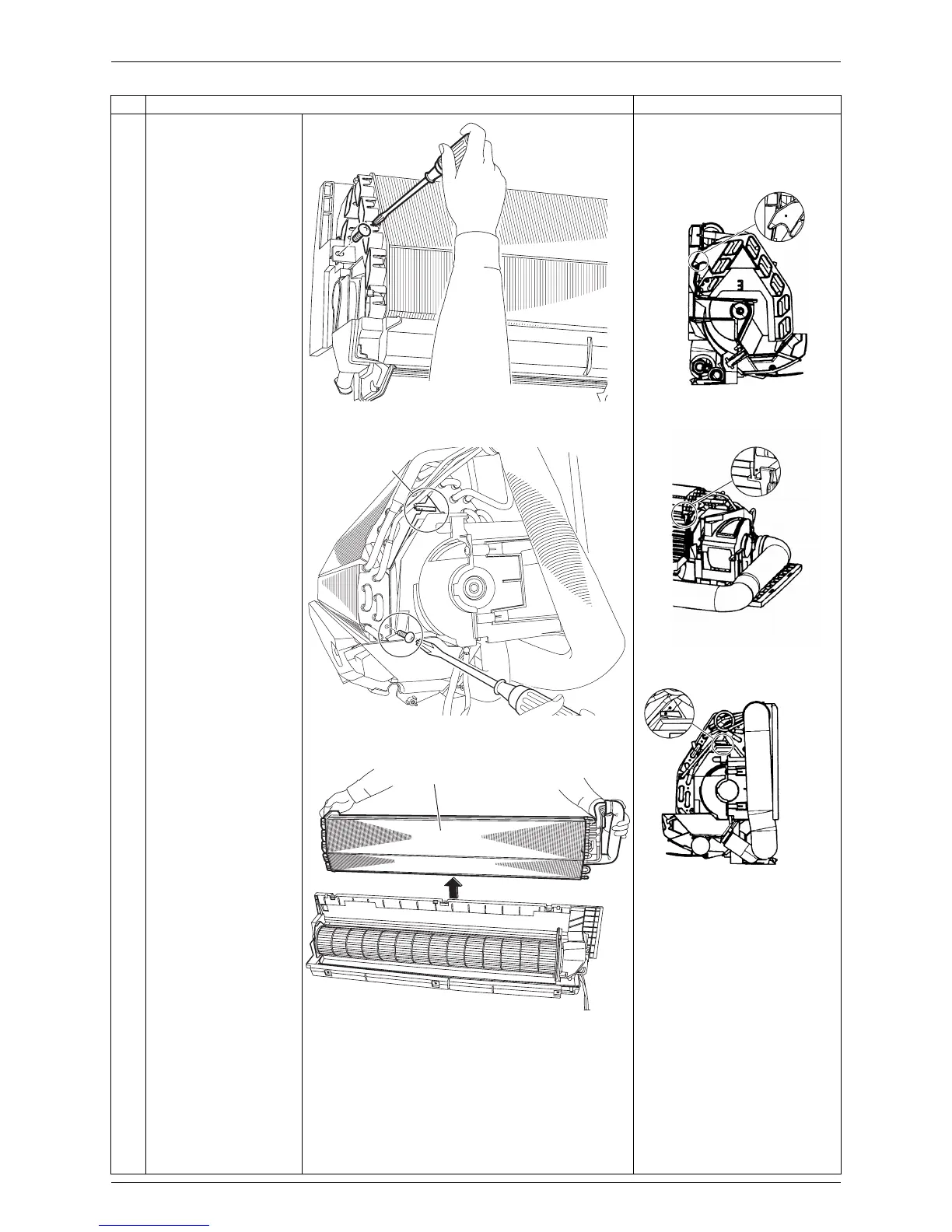

Daikin FTC50PRV16 - Remove Heat Exchanger

Si041257EC Indoor Heat Exchanger
Removal Procedure 11
6 Remove the screw on
the left side.

When reassembling, fasten
the 3 hooks of the indoor
heat exchanger.
7
8
Remove the screw on
the right side.
Unfasten the hook on
the right side.
9 Lift up and remove the
indoor heat exchanger.
Step Procedure Points
(R19799)
(R19768)
Left side
(1) Insert the protrusion
into the gap of the
bottom frame.
(R19769)
Right side
(2) Fit the heat exchanger
plate into the slit of the
bottom frame.
(R19770)
Right side
(3) Fit the slit of the heat exchanger
plate into the bottom frame.
(R20349)
Hook
(R19800)
Indoor heat exchanger
