Daikin FTC50PRV16 - Remove Horizontal Blade; Remove Vertical Blade ASSYS

Si041257EC Air Filters / Front Panel / Horizontal Blade / Vertical Blade ASSYs

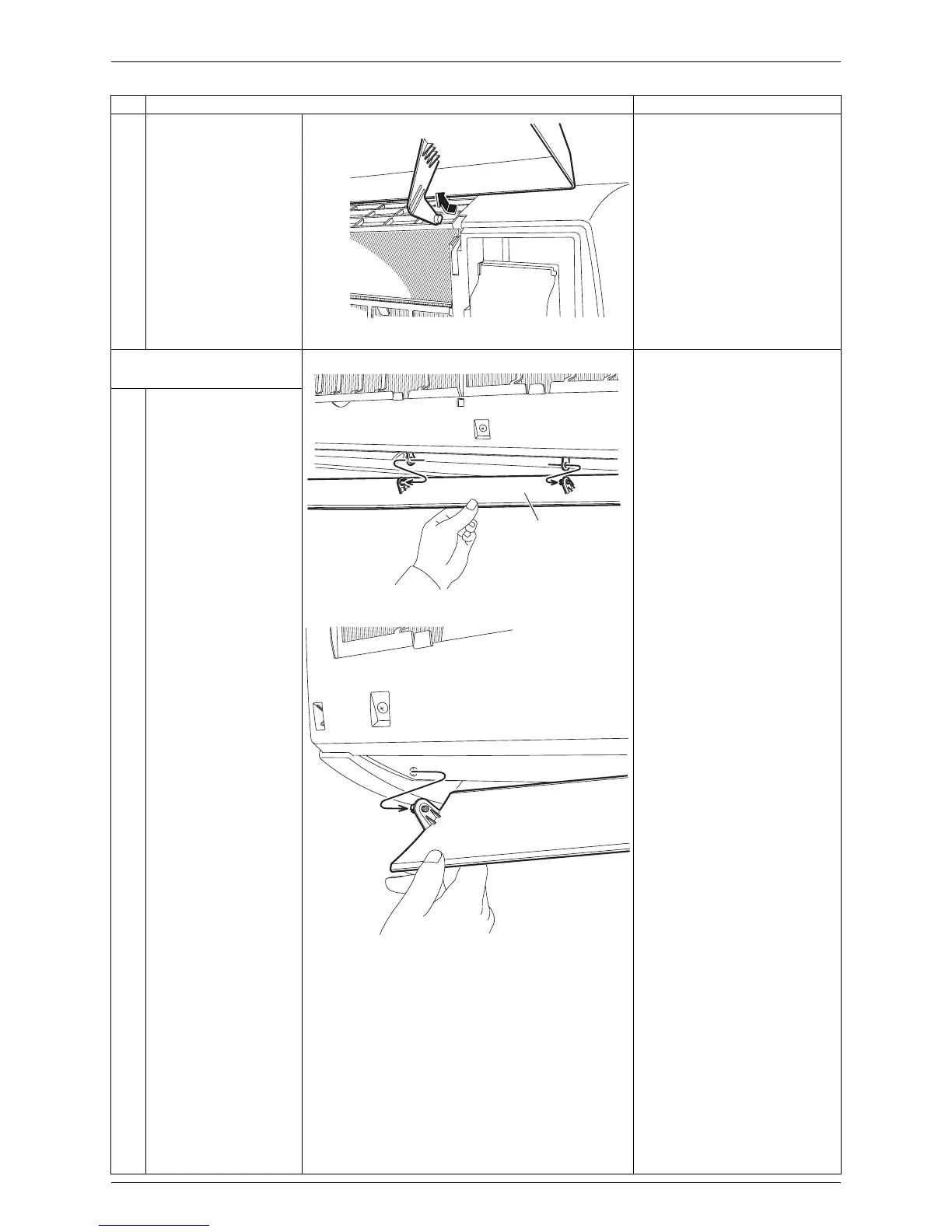

Removal Procedure 3
3
4
Remove the right shaft
in the same way.
Remove the front panel.
3. Remove the horizontal
blade.
1 Release the 2 center
shafts of the horizontal
blade.
2 Release the left shaft.
Step Procedure Points
(R19774)
(R19775)
Horizontal blade
(R19776)
