Daikin FTC50PRV16 - Disconnect Connectors and Remove Box

Si041257EC Electrical Box

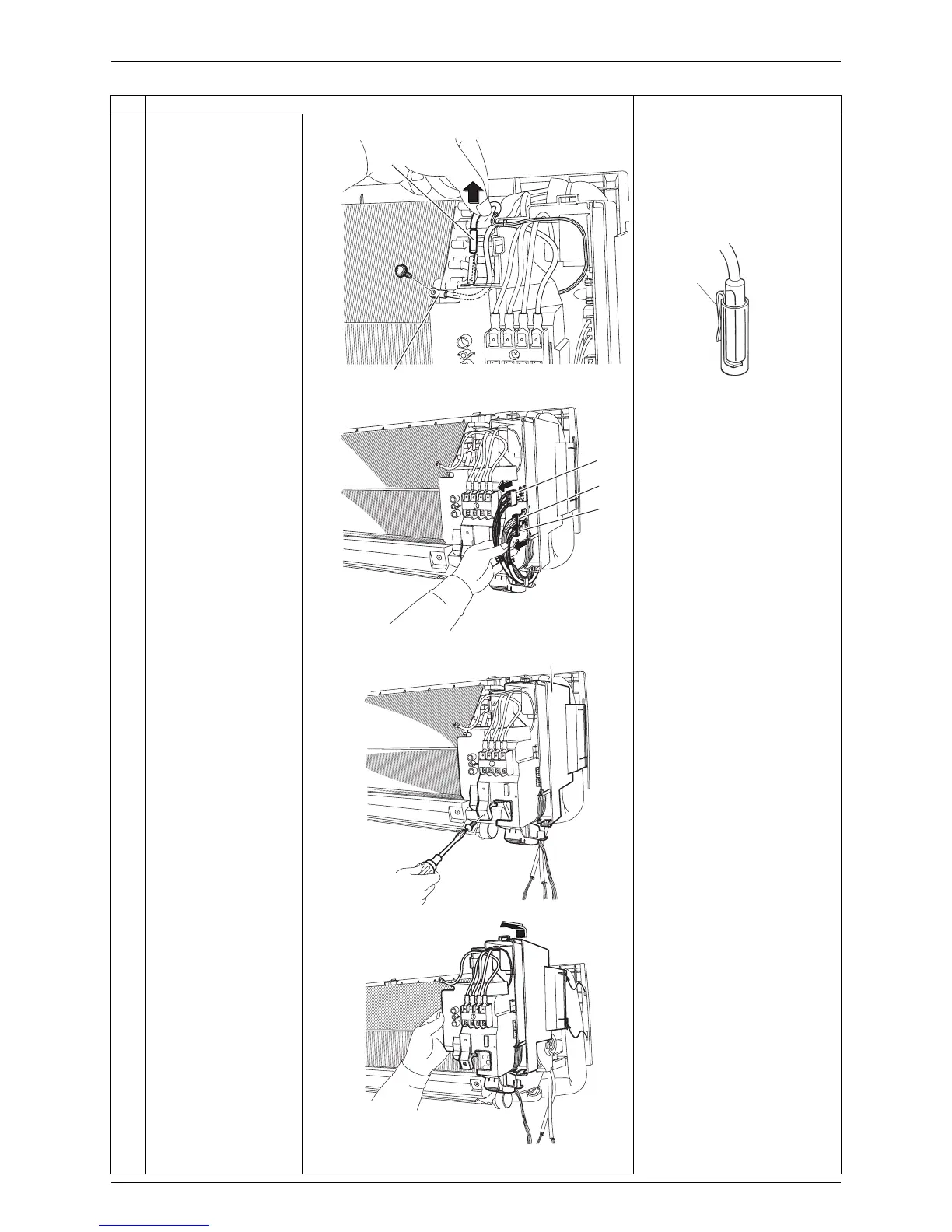

Removal Procedure 7
5
6
Remove the screw and
release the earth/
ground wire.
Pull out the indoor heat
exchanger thermistor.

The position of the indoor
heat exchanger thermistor
varies depending on the
model.

Be careful not to lose the clip
of the thermistor.
7 Disconnect the 3
connectors.
(a)fan motor:
[CN_FAN] or [S1]
(b)swing motor:
[CN_STP] or [S6]
(c) fan motor (Hall IC):
[CN101] or [S7]
8 Remove the screw of
the electrical box.
9 Lift up the electrical box
from the bottom frame
and remove the
electrical box.
Step Procedure Points
(R19786)
Earth/ground wire
Indoor heat
exchanger
thermistor
Clip
(R11268)
(R19787)
(a)
(b)
(c)
(R19788)
Electrical box
(R19789)
