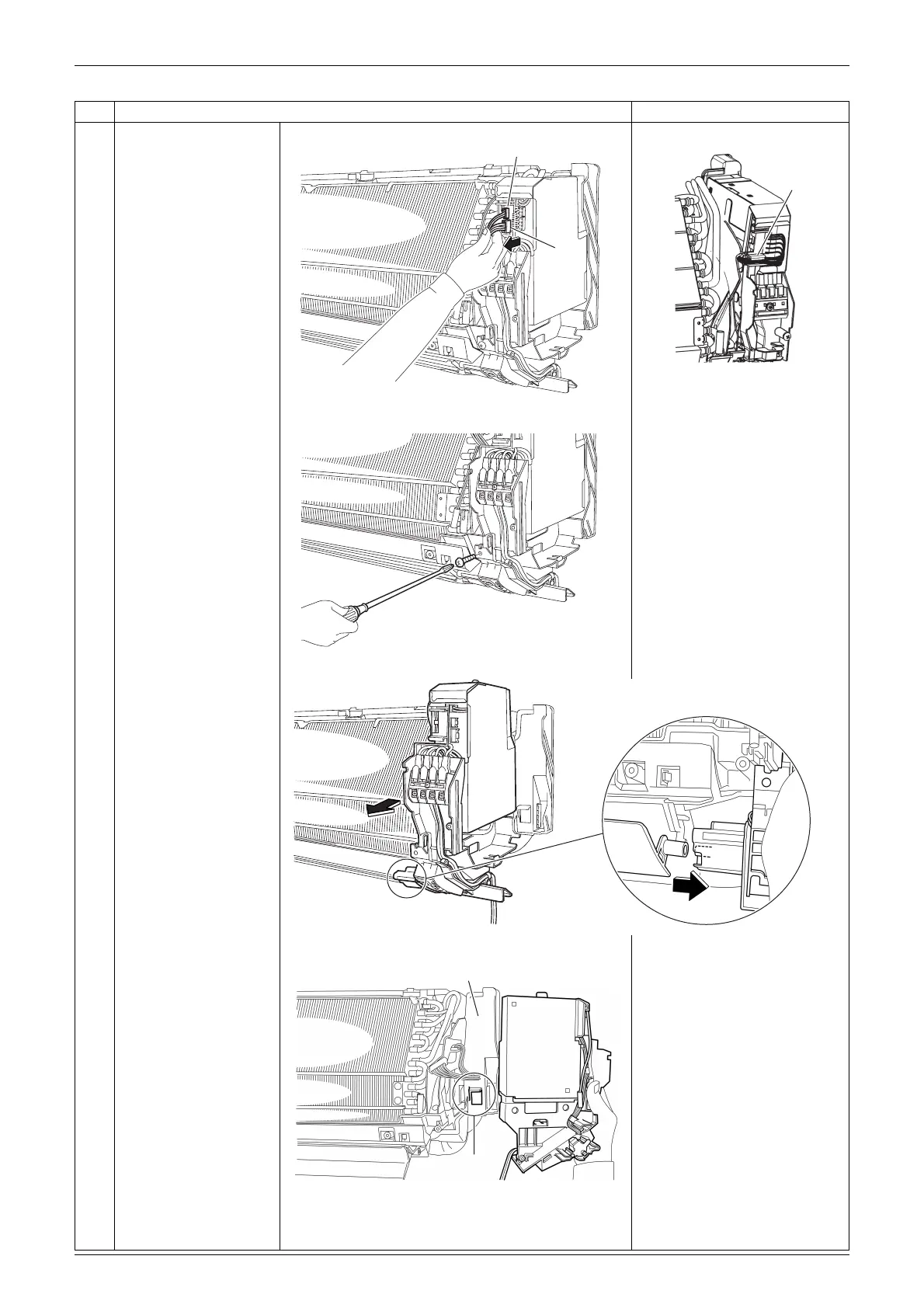

Removal of Electrical Box / Vertical Blades (Pattern 2) Si041051
14 Removal Procedure
2
Disconnect the
connectors for the fan
motor [S1] [S7].
Release the fan motor
harnesses from the
hook.
3
Remove the screw of
the electrical box.
4
Slide the electrical box
to the right first and
detach the horizontal
blade from the electrical
box.
5
Pull the electrical box.

There is a hook on the
bottom frame. When
reassembling, fit the rear
side of the electrical box to
the hook.
Step Procedure Points
(R14601)
[S7]
[S1]
(R14602)
Hook
(R12048)
(R15845)
(R11657)
Hook
Bottom frame
