Daikin FTK15JEVM - Removal of Front Grille

Si041051 Removal of Front Grille
Removal Procedure 7
4. Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

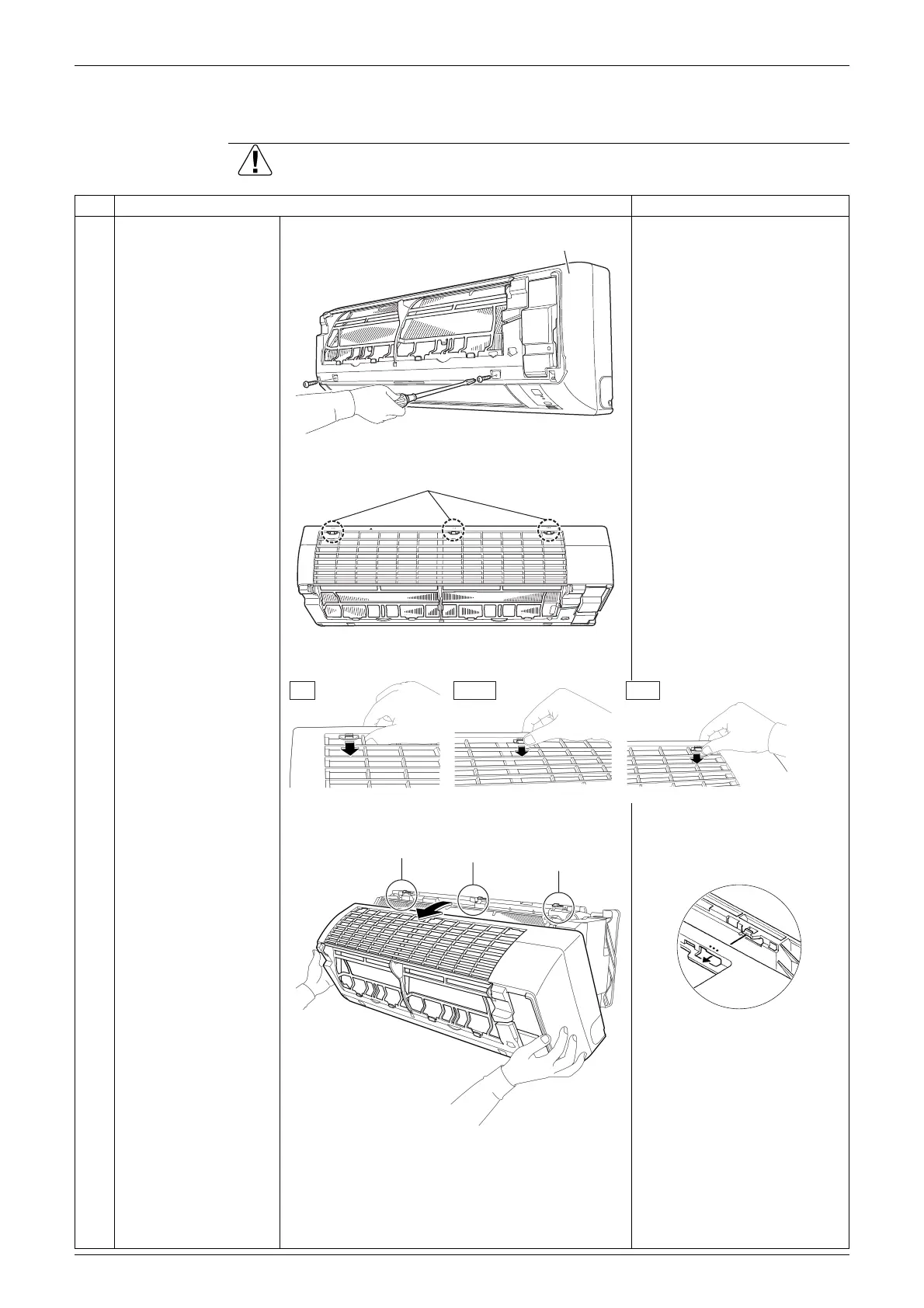

Step Procedure Points
1
Remove the 2 screws,
which fix the front grille
to the main body.
Preparation

Remove the front panel
according to the “Removal
of Front Panel”.
2
The front grille has 3
hooks on the upper
part.

Refer to the removal
procedure in a reverse way
when reassembling.
3
Press each hook, and
also lift the grille up to
unfasten the hooks.
4
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.

The convex marks (...) on
the front panel indicate the
position of the hooks.

When reassembling, make
sure that all the 3 hooks are
fastened as they were.
(R11631)
Front grille
(R14618)
Hook
Left Center Right
(R8030)
(R11633)
Left
Center
Right
(R12715)
