Removal of Swing Motor / PCBs Si041051
18 Removal Procedure
2

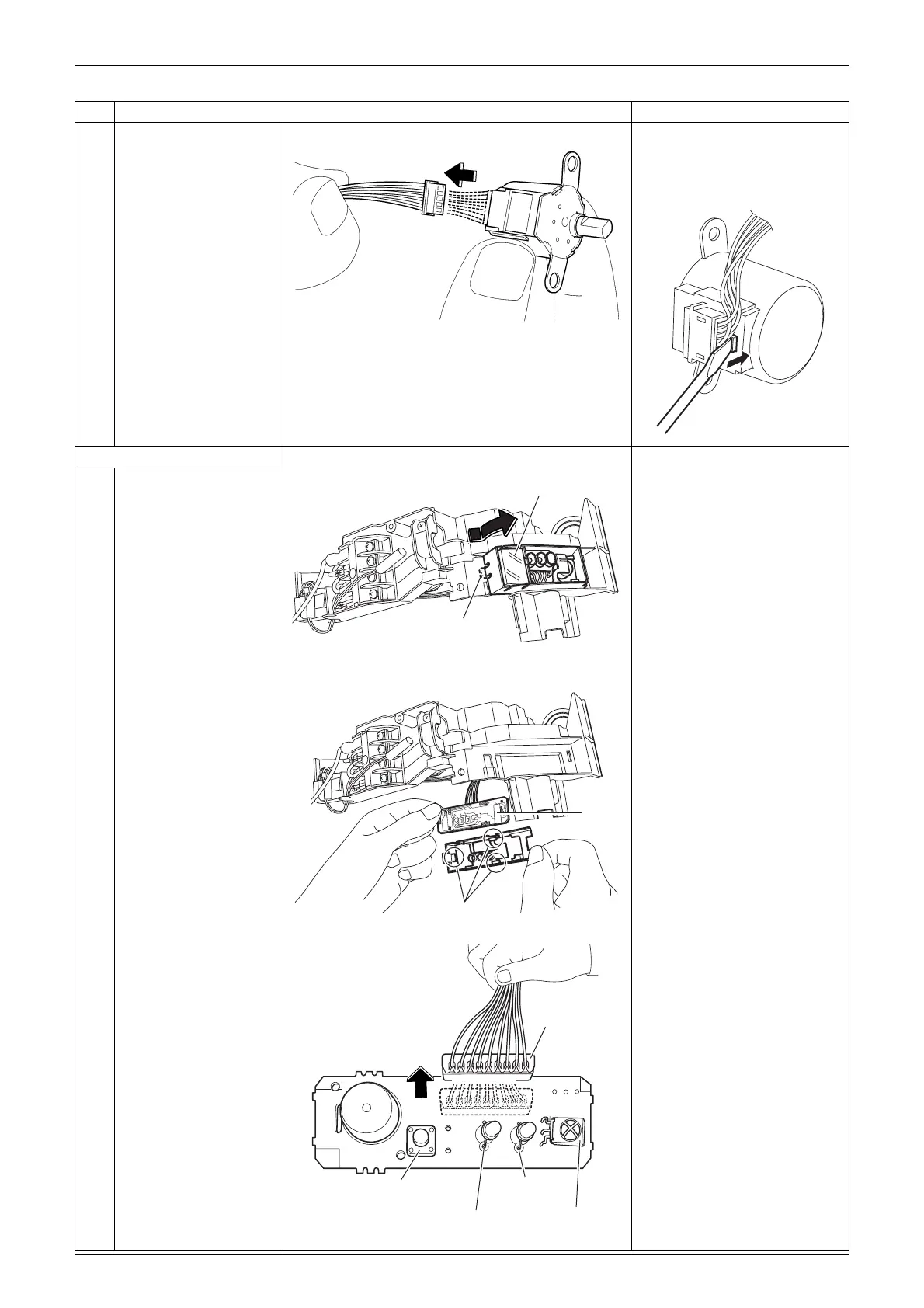

Unfasten the hook, and
disconnect the
connector.

The connector of the swing
motor has a hook.
Press the hook with a flat
screwdriver to unfasten it.
3. Remove the display PCB.
1
Unfasten the hook, and
release the display PCB
ASSY.
2
Turn over the display
PCB ASSY, and
unfasten the 3 hooks to
remove the display
PCB.
3
Disconnect the
connector [S27] from
the display PCB.
4
The figure shows the
component parts of the
display PCB.
[S27]: for control PCB
Step Procedure Points
(R8037)
(R14847)
(R17335)
Hook
Display PCB ASSY
(R11653)
Hook
Display
PCB
(R14848)
[S27]
TIMER lamp
Signal receiver
Operation lamp
ON/OFF button
(Forced cooling operation
[ON/OFF] button)
