Specifications 20
50 Hz, 230 V
Model
ATX25JV1B ATX35JV1B
Cooling Heating Cooling Heating
Rated Capacity 2.5 kW Class 3.5 kW Class
Front Panel Color White White
Airflow Rates
H
m³/min
(cfm)
9.2 (325) 9.7 (342) 9.3 (328) 10.1 (356)
M 7.6 (268) 8.0 (283) 7.7 (272) 8.4 (295)
L 6.0 (212) 6.3 (222) 6.1 (215) 6.7 (235)
SL 4.8 (169) 5.5 (194) 4.9 (173) 5.7 (201)

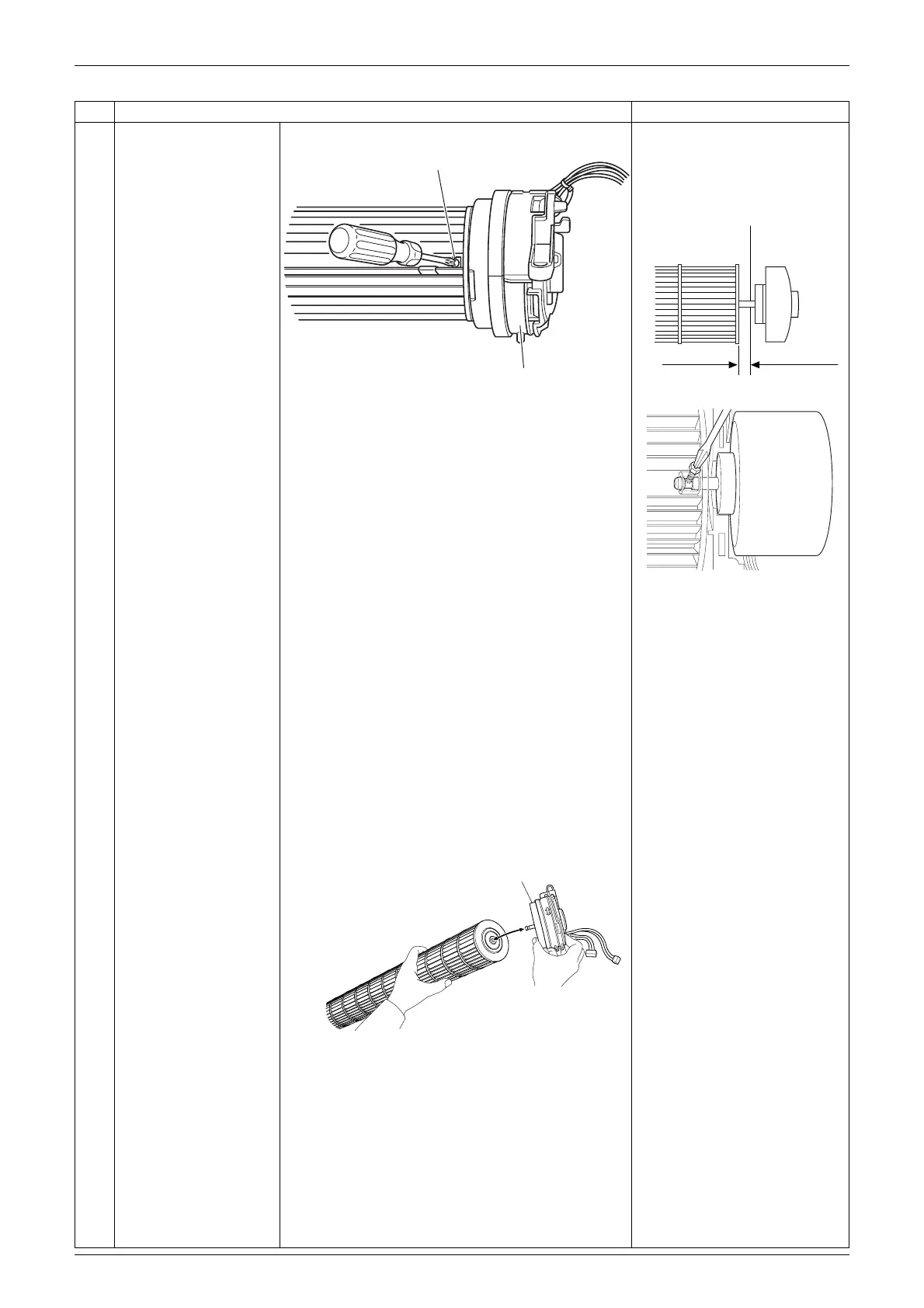

Fan
Type Cross Flow Fan Cross Flow Fan
Motor Output W 16 16
Speed Steps 5 Steps, Quiet, Auto 5 Steps, Quiet, Auto
Air Direction Control Right, Left, Horizontal, Downward Right, Left, Horizontal, Downward
Air Filter Removable / Washable / Mildew Proof Removable / Washable / Mildew Proof
Running Current (Rated) A 0.18 0.18 0.18 0.18
Power Consumption (Rated) W 40 40 40 40
Power Factor % 96.6 96.6 96.6 96.6
Temperature Control Microcomputer Control Microcomputer Control
Dimensions (H × W × D) mm 283 × 770 × 198 283 × 770 × 198
Packaged Dimensions (H × W × D) mm 263 × 840 × 344 263 × 840 × 344
Weight (Mass) kg 7 7
Gross Weight (Gross Mass) kg 11 11
Sound
Pressure
Level
H / M / L / SL dB(A) 40 / 33 / 26 / 22 40 / 34 / 28 / 25 41 / 34 / 27 / 23 41 / 35 / 29 / 26
Sound Power
Level
HdB56565757
Heat Insulation Both Liquid and Gas Pipes Both Liquid and Gas Pipes
Piping
Connection
Liquid mm
φ
6.4
φ
6.4
Gas mm
φ
9.5
φ
9.5
Drain mm
φ
18.0
φ
18.0
Drawing No. 3D065934 3D065935
Model
FTX20J2V1B FTX25J2V1B
Cooling Heating Cooling Heating
Rated Capacity 2.0 kW Class 2.5 kW Class
Front Panel Color White White
Airflow Rates
H
m³/min
(cfm)
9.1 (321) 9.4 (331) 9.2 (325) 9.7 (342)
M 7.4 (261) 7.8 (276) 7.6 (268) 8.0 (283)
L 5.9 (208) 6.3 (222) 6.0 (212) 6.3 (222)
SL 4.7 (166) 5.5 (194) 4.8 (169) 5.5 (194)
Fan
Type Cross Flow Fan Cross Flow Fan
Motor Output W 16 16
Speed Steps 5 Steps, Quiet, Auto 5 Steps, Quiet, Auto
Air Direction Control Right, Left, Horizontal, Downward Right, Left, Horizontal, Downward
Air Filter Removable / Washable / Mildew Proof Removable / Washable / Mildew Proof
Running Current (Rated) A 0.18 0.18 0.18 0.18
Power Consumption (Rated) W 40 40 40 40
Power Factor (Rated) % 96.6 96.6 96.6 96.6
Temperature Control Microcomputer Control Microcomputer Control
Dimensions (H × W × D) mm 283 × 770 × 198 283 × 770 × 198
Packaged Dimensions (H × W × D) mm 266 × 846 × 345 266 × 846 × 345
Weight (Mass) kg 7 7
Gross Weight (Gross Mass) kg 11 11
Sound
Pressure
Level
H / M / L / SL dB(A) 39 / 33 / 25 / 22 39 / 34 / 28 / 25 40 / 33 / 26 / 22 40 / 34 / 28 / 25
Sound Power
Level
HdB55555555
Heat Insulation Both Liquid and Gas Pipes Both Liquid and Gas Pipes
Piping
Connection
Liquid mm
φ
6.4
φ
6.4
Gas mm
φ
9.5
φ
9.5
Drain mm
φ
18.0
φ
18.0
Drawing No. 3D080673 3D080674
Conversion Formulae
kcal/h = kW × 860
Btu/h = kW × 3412
cfm = m³/min × 35.3
