Names of Parts

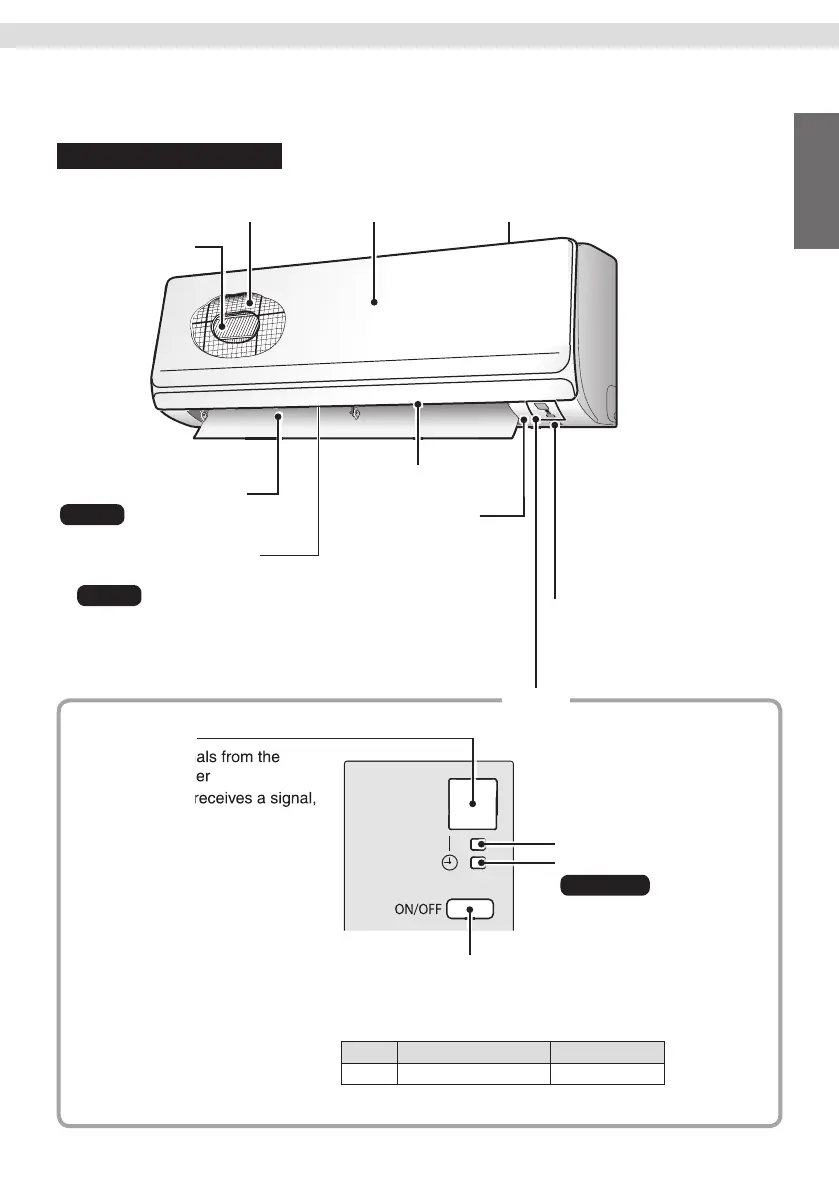

 Indoor Unit
For FTKA25/35/50/60
5
English
Signal receiver:
• It receives signals from the
remote controller
• When the unit receives a signal,
you will hear a beep sound.
• Operation start ........beep-beep
• Settings changed ....beep
• Operation stop ........beeeeep
It receives signals from the
remote controller
When the unit receives a signal,
OPERATION lamp (green)
TIMER lamp (orange):
Page 16, 17
Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• For the operation mode setting, refer to the following table.
Mode Temperature setting Air ow rate
COOL 22.0°C AUTO
• This switch is useful when the remote controller is missing.
Display
Flap (Horizontal blade):
Page 11
Room temperature sensor:
• It senses the air temperature
around the unit.
Front panel
Air  lter
Air inlet
Model name
Air outlet
Louvres (Vertical blades):
• The louvres are inside of the air outlet.
Page 11
Deodorizing  lter
(enzymeb blue)
