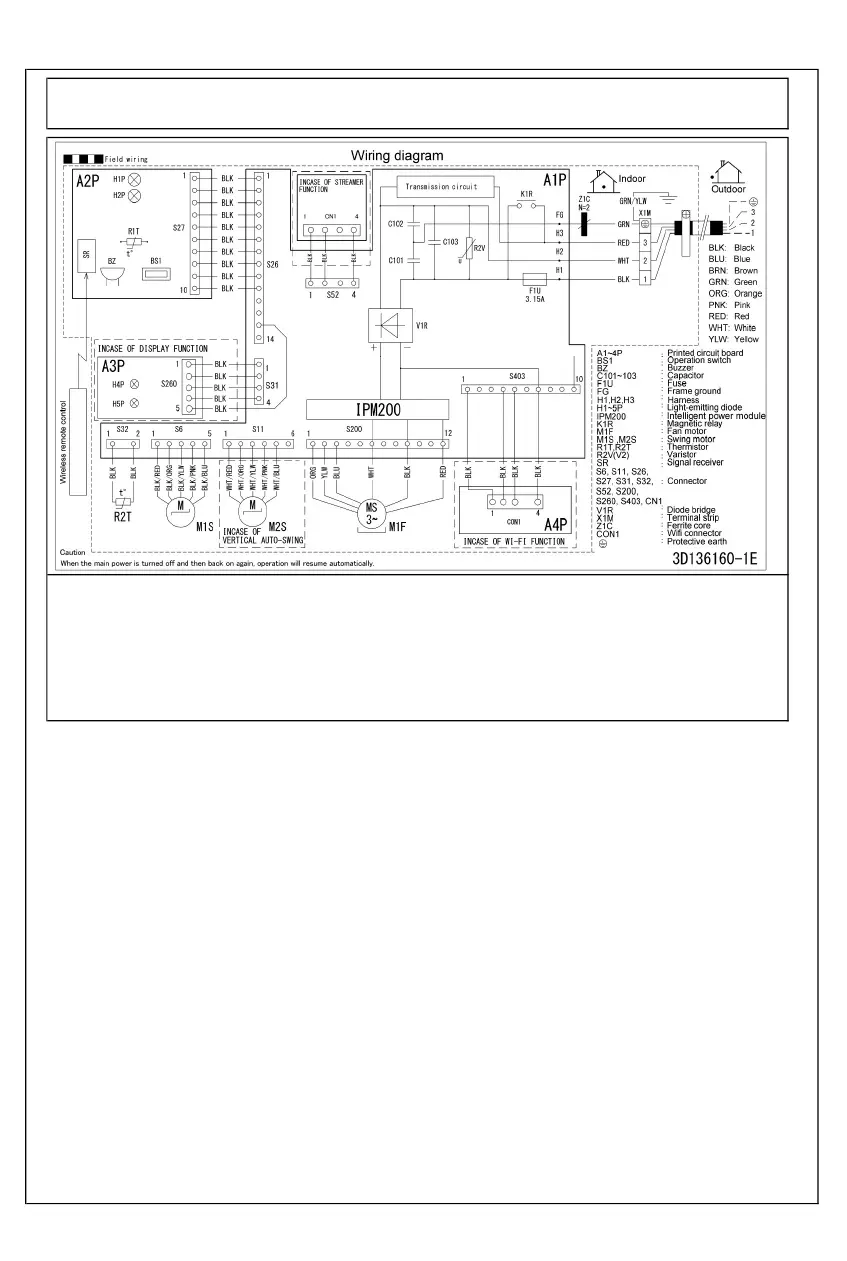

Indoor Unit -Wiring Diagram
Applicable Model :- MTKL50UV16VAF, MTKL50UV16VA, DTKL50UV16VA, DTKL50UV16VA,
DTKL50UV16VAF, FTKL50UV16VA, FTKC50UV16VF, FTKL50UV16VAF, FTKM50UV16V,
GTKC50UV16V MTKL50UV16VA, MTKL50UV16VAF, ATKL50UV16VA, ATKL50UV16VAF,
FTKL50UV16VAF, FTKC50UV16V, FTKL50UV16VA, ATKL50UV16VA, ATKL50UV16VAF,
GTKL50UV16VA, GTKC50UV16VF & GTKL50UV16VAF,FTKC42UV16V,MTKC42UV16V.
13
