Daikin FTKC71QVM - Remove Intelligent Eye Sensor PCB

PCBs Si041652EB
12 Removal Procedure
3. Remove the
INTELLIGENT EYE
sensor PCB.
1 Release the harness of
the signal receiver unit
from the 3 hooks.
2 Unfasten the 2 hooks
and remove the signal
receiver unit.

When reassembling, make
sure to fit the bottom of the
signal receiver unit before
fastening the 2 hooks.
3 Release the harness on
the back of the signal
receiver unit from the 3
hooks.

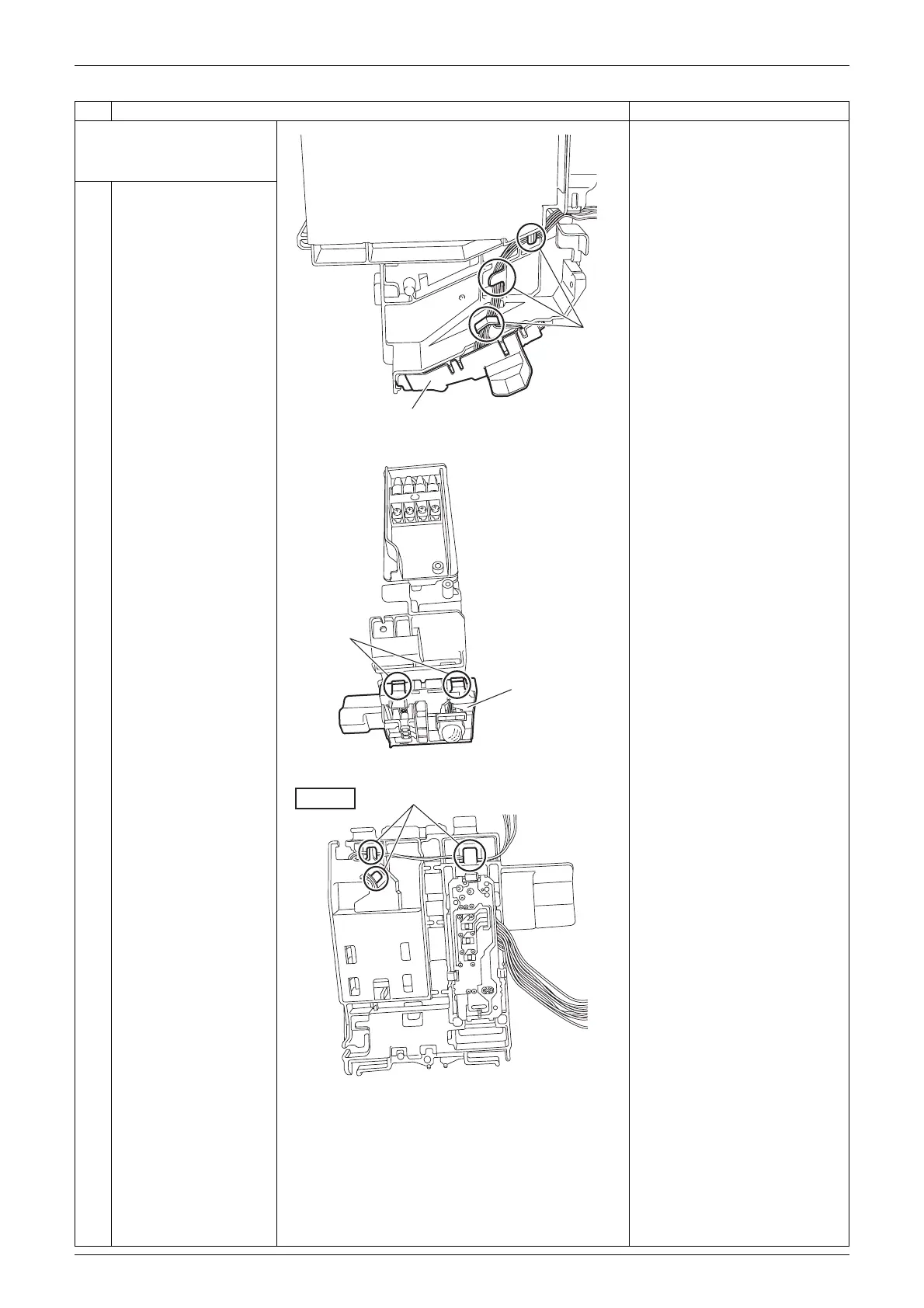

Step Procedure Points
Signal receiver unit
Hook
(R22914)
Hook
Signal receiver
unit
(R22915)
Hook
(R22916)
Back view
