Si041251EC Electrical Box
Removal Procedure 7

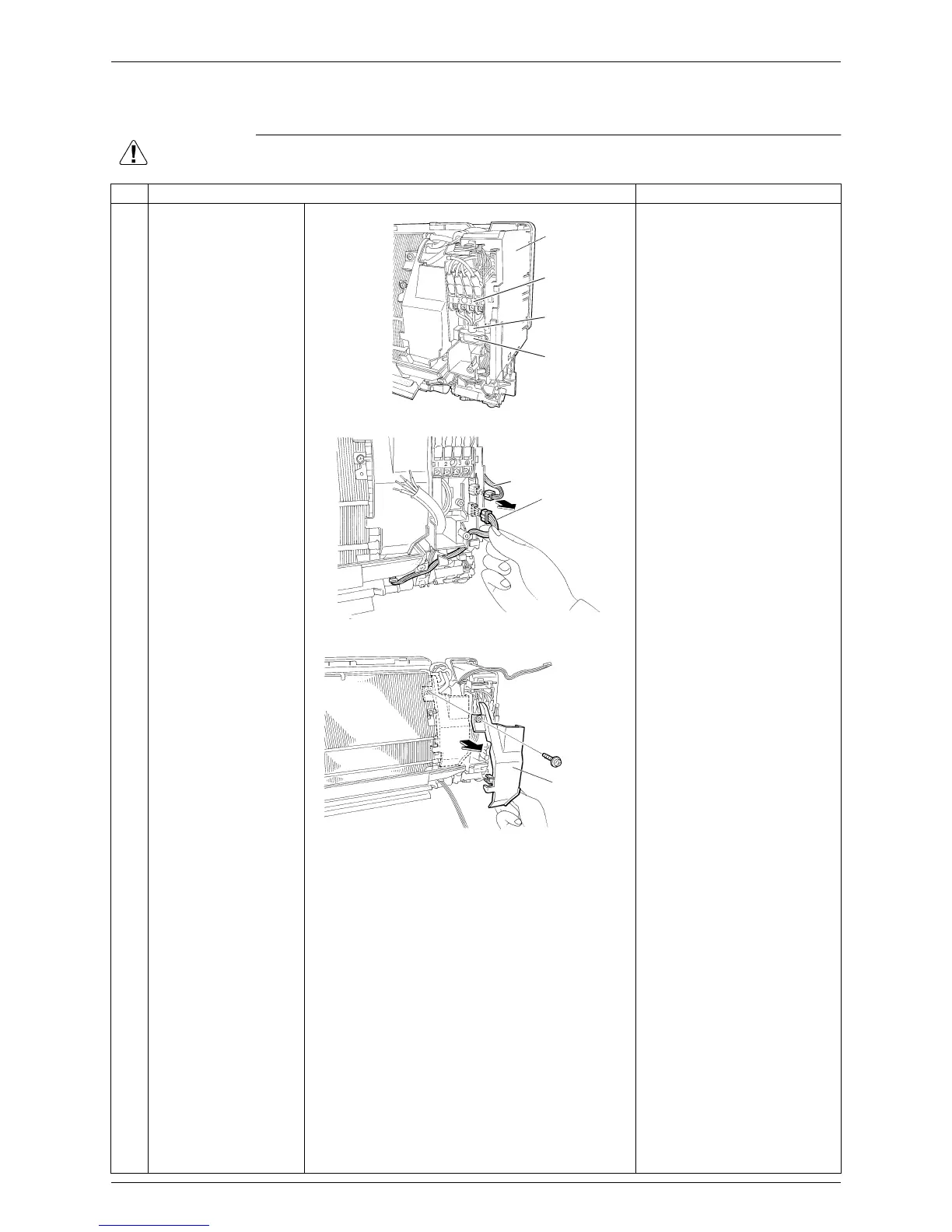

5. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the screw of
the wire fixture.
Remove the 4 screws
of the terminal board
and disconnect the
connecting wires.
3
4
Disconnect the
connector [S6].
Disconnect the
connector [S7].
[S6]: swing motor
[S7]: AC fan motor

Put any excess wires behind
the power supply lead wire.

DC fan motor models have
no harness for [S7].
5
Remove the screw and
remove the drip proof
plate.
(R17926)
Electrical box
Wire fixture
Terminal
board
Connecting
wire
(R17202)
[S6]
[S7]
Drip proof plate
(R4343)
