Instruction Si12-411A
118 System Configuration
Outdoor Unit
Indoor Unit
1.
Air filter
2. Photocatalytic deodorizing filter or
Air purifying filter:
2
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front grille
5. Grille tab
6. INTELLIGENT EYE sensor:
2
It detects the movements of people and
automatically switches between normal operation
and energy saving operation.
7. Display
8. Air outlet
9. Flap (horizontal blade)
10. Louvers (vertical blades):
2The Louvers are inside of the air outlet.
11. Operation lamp (green)
12. TIMER lamp (yellow)
13. HOME LEAVE lamp (red):
2
Lights up when you use HOME LEAVE
Operation.
14. Indoor Unit ON/OFF switch:
2
Push this switch once to start operation.
Push once again to stop it.
2
The operation mode refer to the following table.
2
This switch is useful when the remote controller
is missing.
15. Room temperature sensor:
2
It senses the air temperature around the unit.
16. Signal receiver:
2
It receives signals from the remote controller.
2
When the unit receives a signal, you will hear a
short beep.
2
Operation start .............beep-beep
2
Settings changed..........beep
2
Operation stop ..............beeeeep

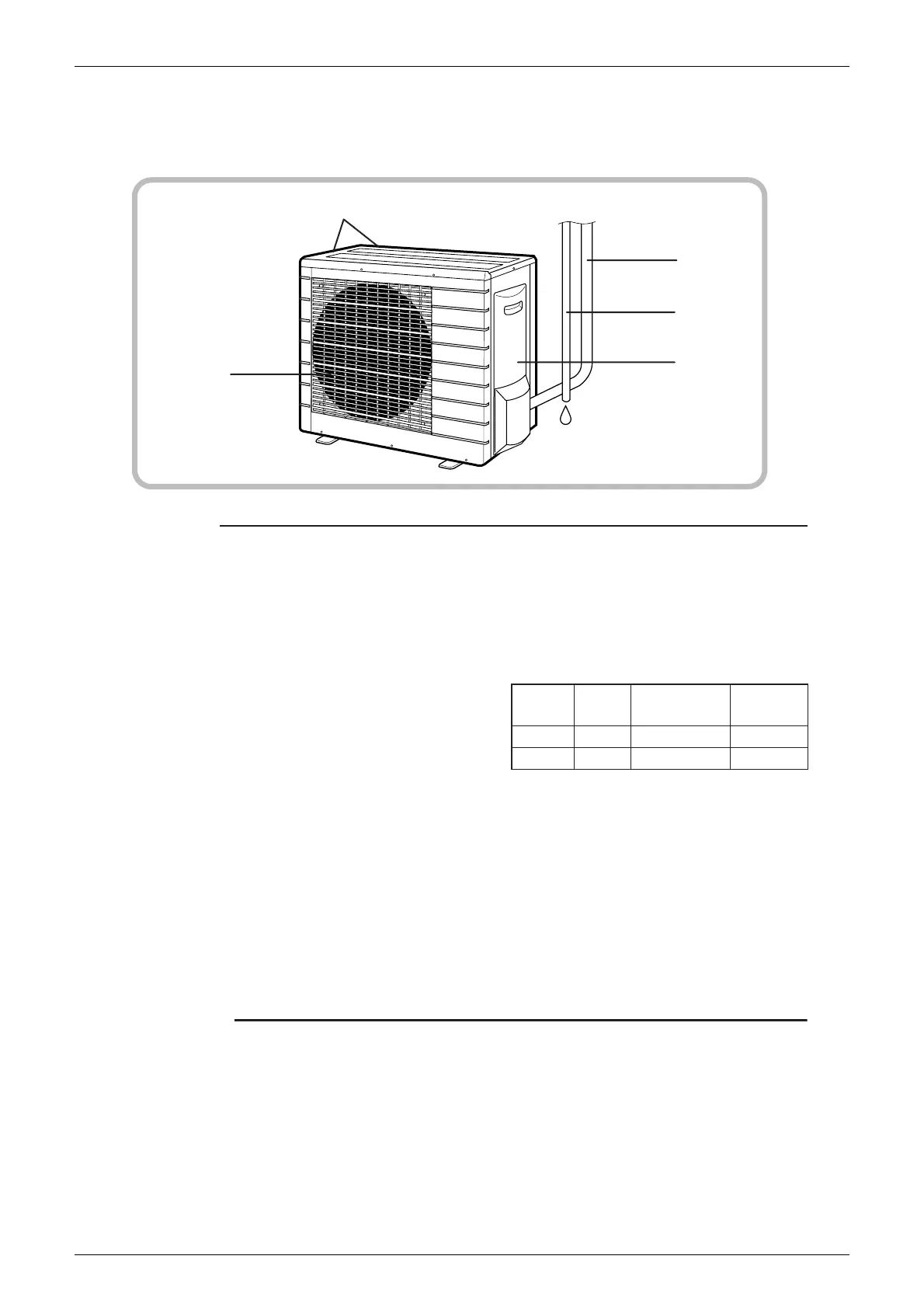

Outdoor Unit
17. Air inlet:
(Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
19
20
21
18
17
Mode
Temperature
setting
Air flow
rate
FTKD COOL
22
°
C
AUTO
FTXD AUTO
25
°
C
AUTO
