Daikin FTKD50BVM User Manual

Instruction Si12-411A
124 System Configuration
 Outdoor Unit

Indoor Unit
1. Louvres (vertical blades)
The louvres are inside of the air outlet.
2. Air outlet
3. Flap (horizontal blade)
4. Grille tab
5. Air inlet
6. Display
7.
Air filter
8. Photocatalytic deodorizing filter or
Air purifying filter:
2 These filters are attached to the inside of the air
filters.
9. Front grille
10. Operation lamp (green)
11. TIMER lamp (orange)
12. HOME LEAVE lamp (red):
Lights up when you use HOME LEAVE
Operation.
13. Indoor unit ON/OFF switch
2 Push this switch once to start operation.
Push once again to stop it.
2 Push the switch using an object with a sharp
tip, such as a pen.
2 This switch is useful when the remote controller
is missing.
14. Signal receiver:
2 It receives signals from the remote controller.
2 When the unit receives a signal, you will hear a
short beep.
2 Operation start .............beep-beep
2 Settings changed..........beep
2 Operation stop ..............beeeeep
2
The operation mode refers to the following
table.


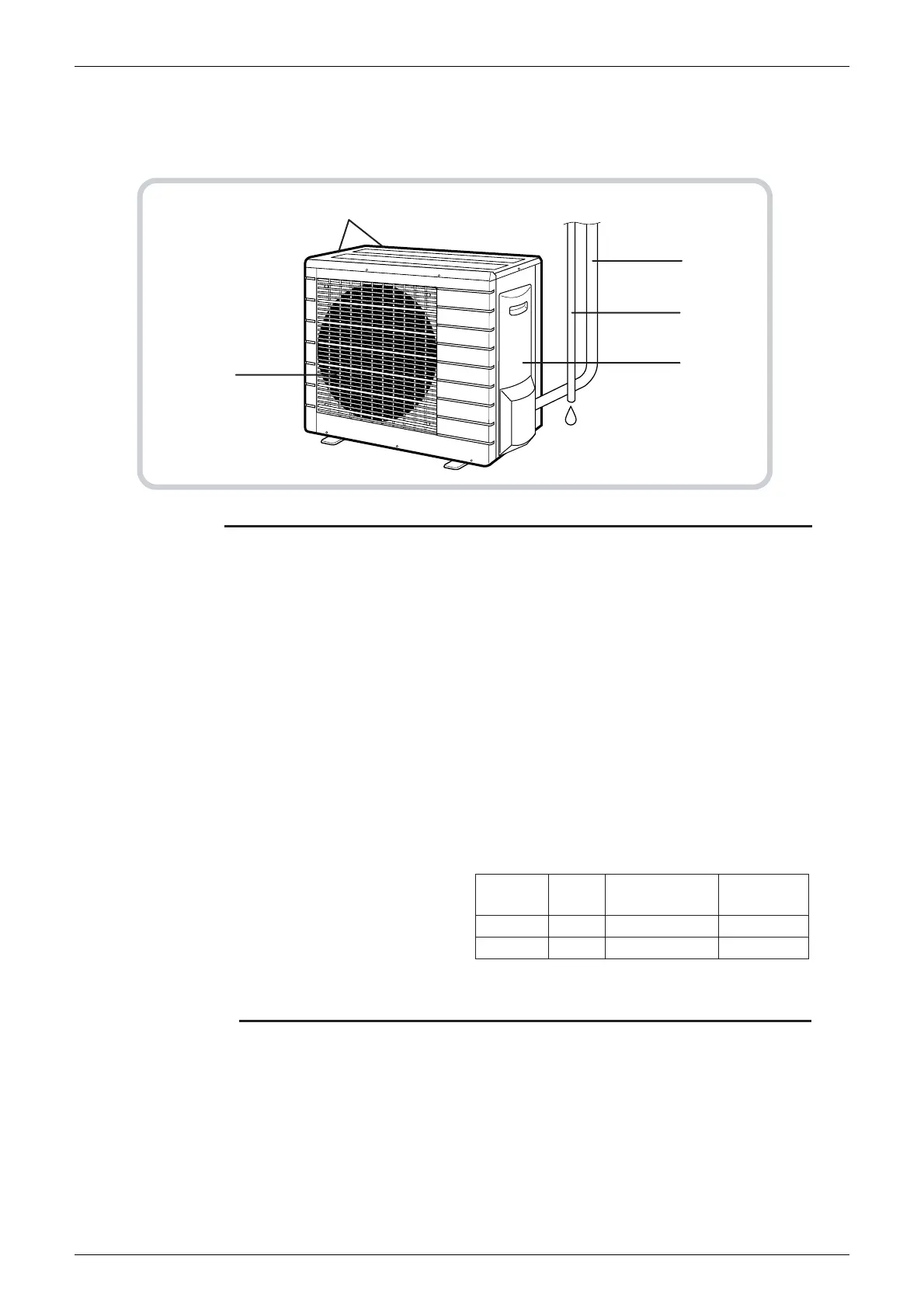

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
2 It is inside of this cover.
A
pp
earance of the outdoor unit ma
y
differ from some models.
17
18
19
16
15
Mode
Temperature
setting
Air flow
rate
FLK COOL
22
°
C
AUTO
FLX AUTO
25
°
C
AUTO

Daikin FTKD50BVM Specifications

General

Brand	Daikin
Model	FTKD50BVM
Category	Air Conditioner
Language	English
