VARIABLE Operation

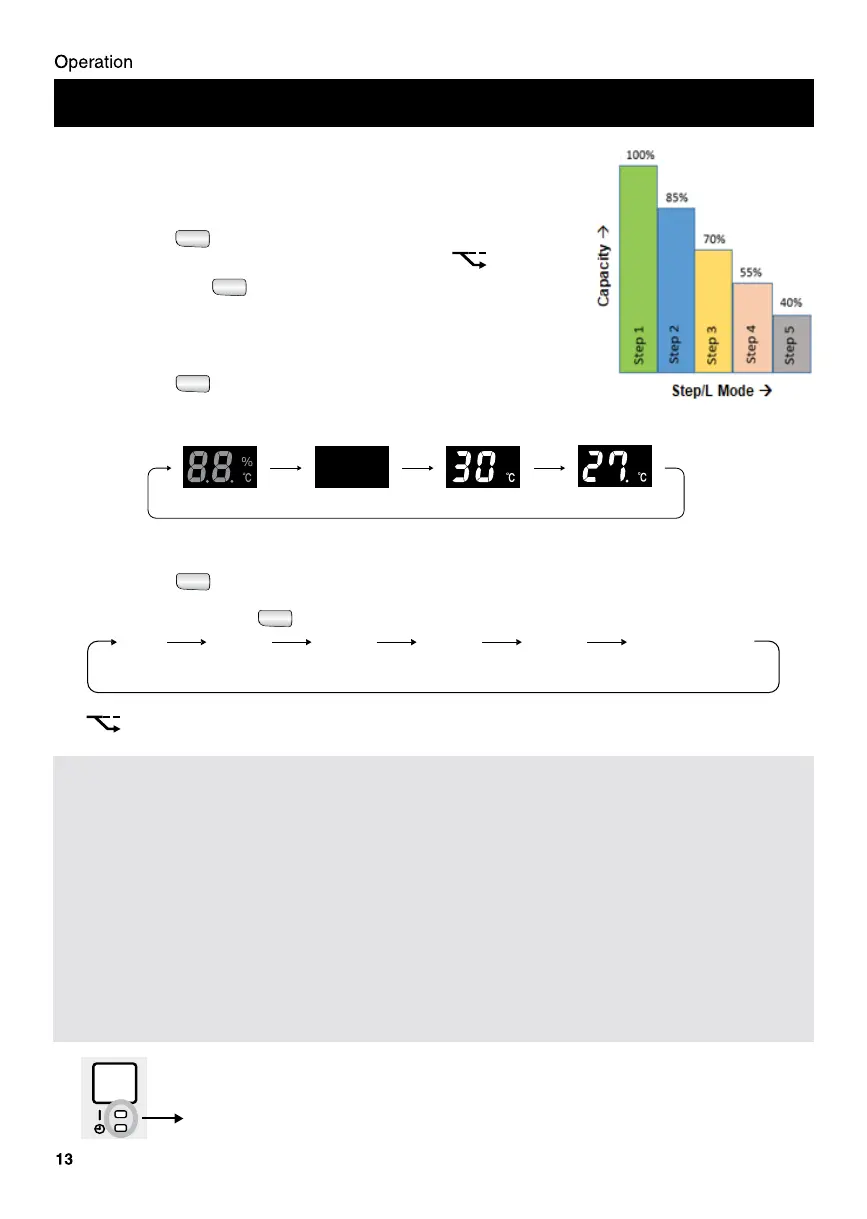

Variable operation provides users with manual control to select the air conditioner's
capacity based on the number of persons, room size, and outside conditions.
Users can adjust the air conditioner capacity to 100% (L1), 85% (L2), 70% (L3), 55%
(L4), and 40% (L5) of the rated capacity.
To start the Variable operation :
Using the remote, turn on the air conditioner.
Press the “ ” button on the remote controller.
If the user turns on variable operation for the first time, the “ ” symbol along
with the L1 step will be displayed on the remote LCD.
By pressing the “ ” button on the remote controller, the user can select
different capacities ranging from L2/L3/L4/L5.
After receiving a command from the remote controller, the IDU 7-segment display
will also show the corresponding capacity step.
To check the Variable operation capacity step :
If the user wants to check which capacity step is currently in operation, they need to
press the “ ” button on the remote controller.
The last capacity step will be displayed on the remote LCD.
Users can also check capacity step details on the IDU 7-segment display.
IDU : 7 Segment Display
To cancel the Variable operation :
If Variable operation is already turned ON, and the user wants to turn OFF the variable operation, then the user needs to
press the “ ” button on the remote controller.
The remote LCD will display the last selected capacity step; for example, "L2" will be shown on the remote LCD.
User needs to press the “ ” button in the following manner until normal operation.
VARIABLE
VARIABLE
VARIABLE
VARIABLE
VARIABLE
Variable Step Set TemperatureIndoor TemperatureNo Display (Default)
*
L1
Notes on the Variable Operation :
In the event of a power failure, the selected capacity step will be memorized and retained when power is restored.
This function operates only in Dry, Cool, Heat, and Auto modes.
Power Chill, Power Full, Dew Clean, and Fan Mode operations cannot be used together with the Variable function. Priority
will be given to the last selected function.
If the user removes the battery and reinserts it while using the Variable function, the variable feature is turned off on the
remote. The user will need to restart the Variable operation and select the desired capacity step again.
For the safety and reliability of the AC, the Variable function may not work in lower and higher outdoor ambient conditions.
It is recommended that the user does not turn off the operation lamp and timer lamp LEDs (using the Brightness control
function). Otherwise, the user will not be notified in case they select the wrong step in accordance with the heat load
condition.
If the user selects a capacity step that is not in accordance with the room heat load conditions, this function will notify the
user to change the capacity step, as defined below:
After 30 minutes of the machine working, the Operation Lamp (Green) and Timer Lamp (Orange) will blink for about 30
seconds to indicate to the user that they should change the capacity step.
If the user does not change the capacity step, the next judgment will be taken after the next 15 minutes of machine
working. Until the user changes the capacity step, the Operation Lamp (Green) and Timer Lamp (Orange) will blink for
about 30 seconds to remind the user to change the capacity step.
In the event of a power failure during the above judgment, the timing will restart from zero once power is restored.
Green & Orange LED blinking for about 30 seconds.
L1 / L2 / L3 / L4 / L5
L1 L2 L3 L4 L5
Normal Operation
Mode or Turn OFF
Variable Operation
*
*
Last Memorised Step
“ ” symbol will be removed from the remote LCD.
