Daikin FTM28NV2S - Page 14

PCBs Si041352ED

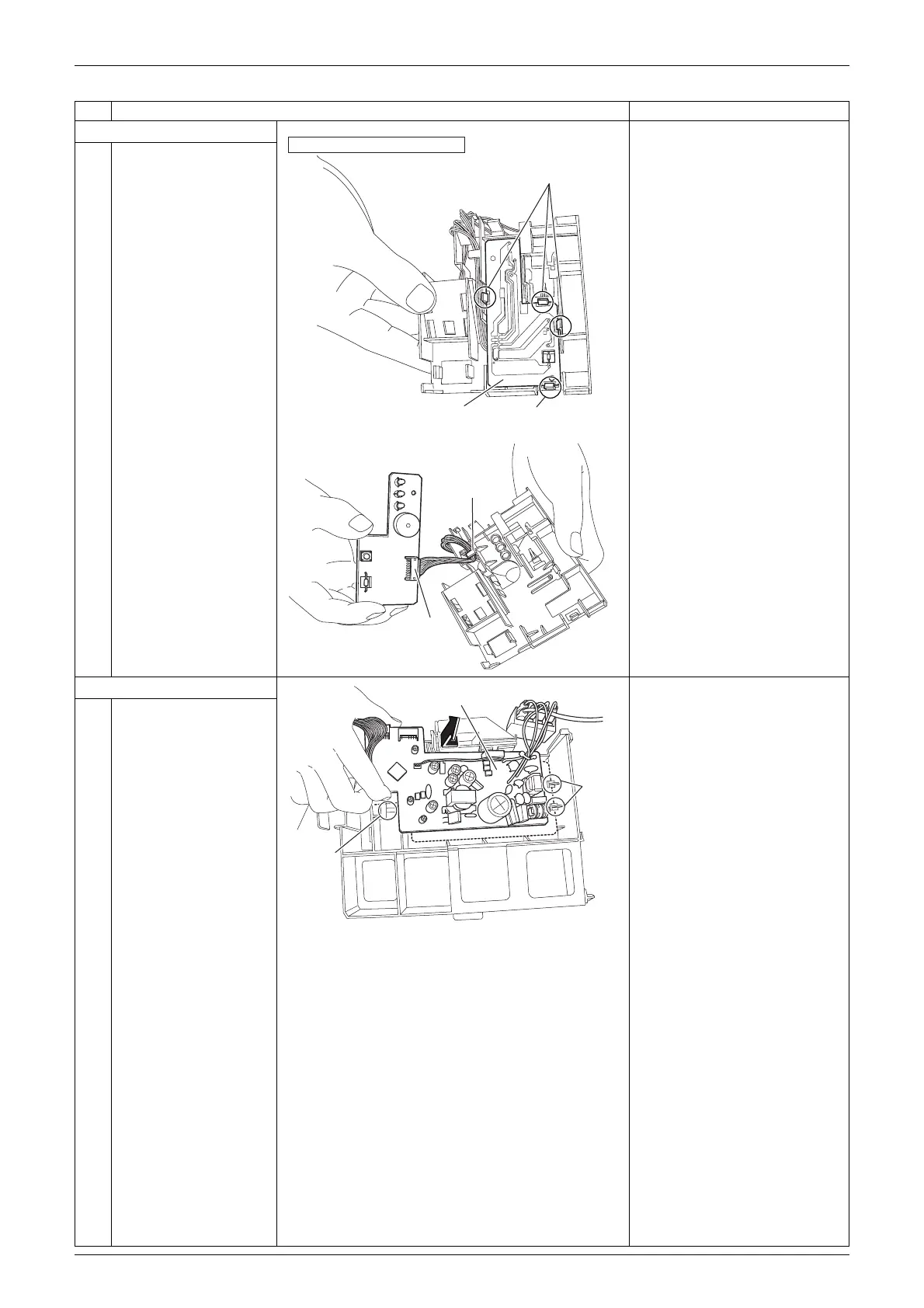

12 Removal Procedure
3. Remove the display PCB.
1 Unfasten the 4 hooks
and remove the display
PCB.
2
3
Release the harness
from the hook.
Disconnect the
connector [S49].
[S49]: control PCB
4. Remove the control PCB.
1 Unfasten the 3 hooks
and remove the control
PCB.
Step Procedure Points
(R24488)
Display PCB Hook
Hook
Back of the signal receiver unit
(R18718)
Hook
[S49]
(R9517)
Hook
Hook
Control PCB
