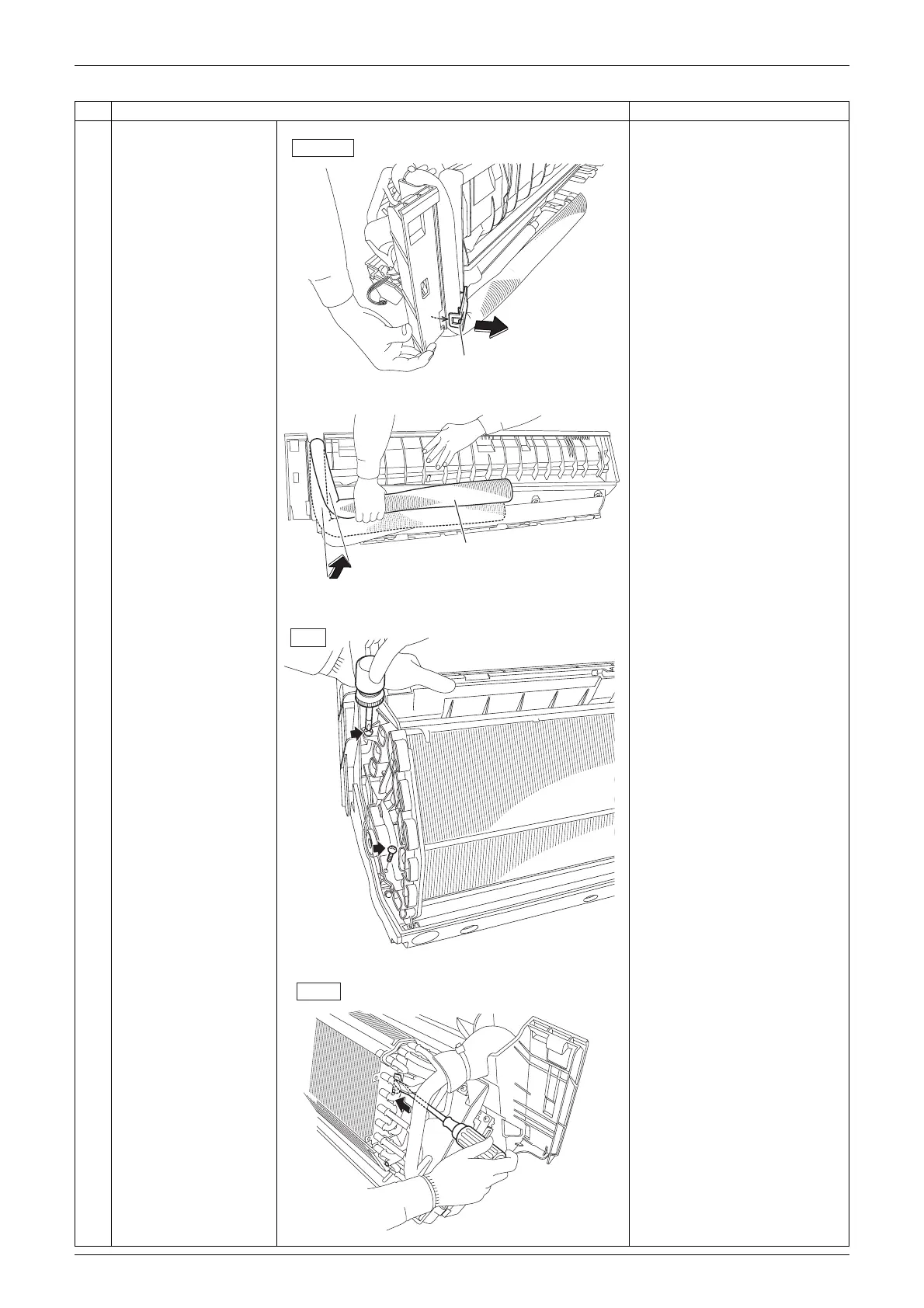

Si041352ED Indoor Heat Exchanger
Removal Procedure 25
7 Release the piping
fixture and remove it.
8 Slightly pull out the
auxiliary piping.
9 Remove the 2 screws
on the left side.
10 Push the hook on the
right side and unfasten
it.
Step Procedure Points
Piping fixture
(R24504)
Back view
(R22046)
Auxiliary piping
Left
(R24505)
(R24506)
Right
