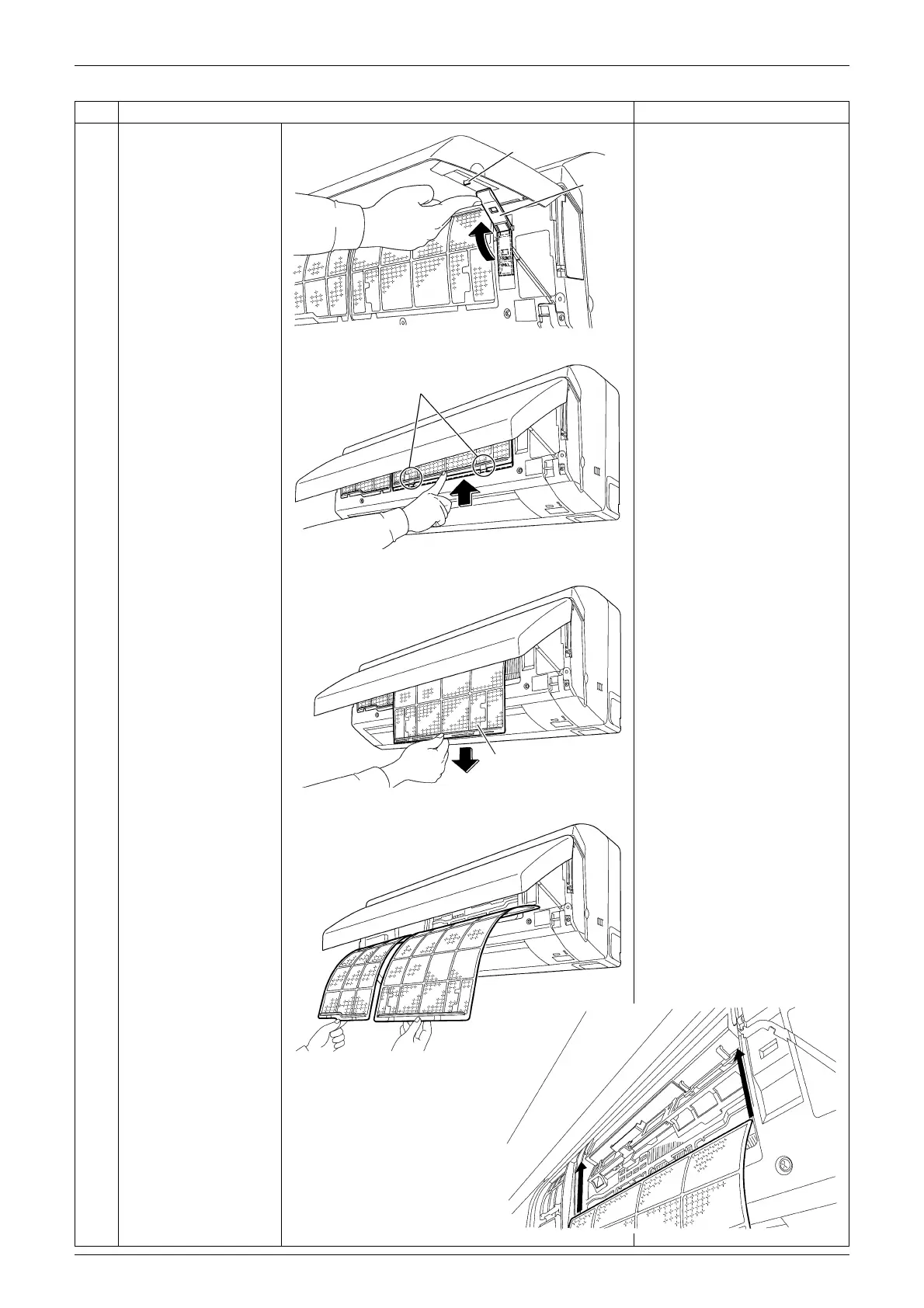

Si04-756 Removal of Air Filters / Front panel
Removal Procedure 3
2
Keep the front panel
open with the support
plate.
3
Push the center part of
the air filter up to
unfasten the 2 hooks.
4
Remove the air filter.
5
The shapes of the right
and left filters are
different.

Insert the filters along the
guide for easy installation.
Step Procedure Points
(R5624)
Support point
Support
plate
Hook
(R5625)
(R13945)
Air filter
(R5627)
(R5628)
