6
C
ON
AMPM
AMPM
TEMP
ON/OFF
MODE
ON
OFF
TIMER
FAN
SWING
CANCEL
POWERFUL
Transmitter
It sends signals to the indoor unit.
ON/OFF button
Press it once to start operation.
To stop it, press it once again.
CLOCK button
(See page 8.)
TIMER CANCEL button
It cancels the timer setting.
FAN setting button
It selects the air flow rate setting.
SWING button
(See page 10.)
It changes the temperature
setting.
Display
It displays the
current settings.
(In this illustration,
each section is
shown with all its
displays ON for the
purpose of
explanation. Some
models may not
show all its
indications.)
ON TIMER button
(See page 11.)
TIMER Setting button
It changes the time setting
MODE selector button
It selects the operation mode.
POWERFUL button
(See page 10.)
TEMPERATURE
adjustment buttons
Open
the
cover.
OFF TIMER button
: DRY
: COOL
: FAN
: AUTO
: DRY
: COOL
: HEAT
<FT> <FTY>
<
ARC423A17, A18
>
(See page 11.)
Drain hose
Earth terminal
Air outlet
Air inlet
Refrigerant piping
and inter-unit cable
(Back and side)
It is inside of this part.
Appearance of the outdoor unit may differ
from some models.
Outdoor unit

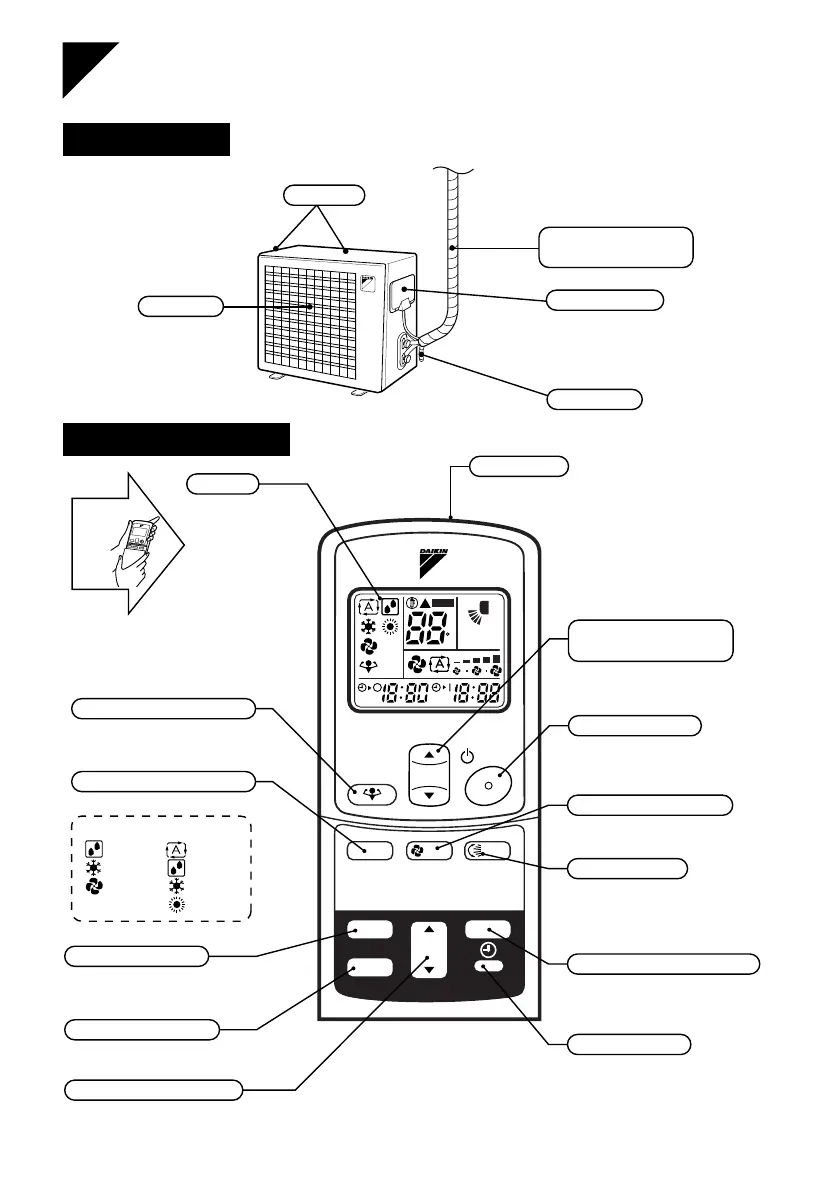

Names of Parts
Remote controller
To Next Page
