■ Outdoor Unit
■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. Display
8. Air outlet
9. Flap (horizontal blade):
(page 12.)
10. Louvers (vertical blades):
•
The Louvers are inside of the air outlet.
(page 12.)
11. Operation lamp (green)
12. TIMER lamp (yellow):
(page 14.)
13. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refer to the following table.
•
This switch is useful when the remote controller
is missing.
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep
■

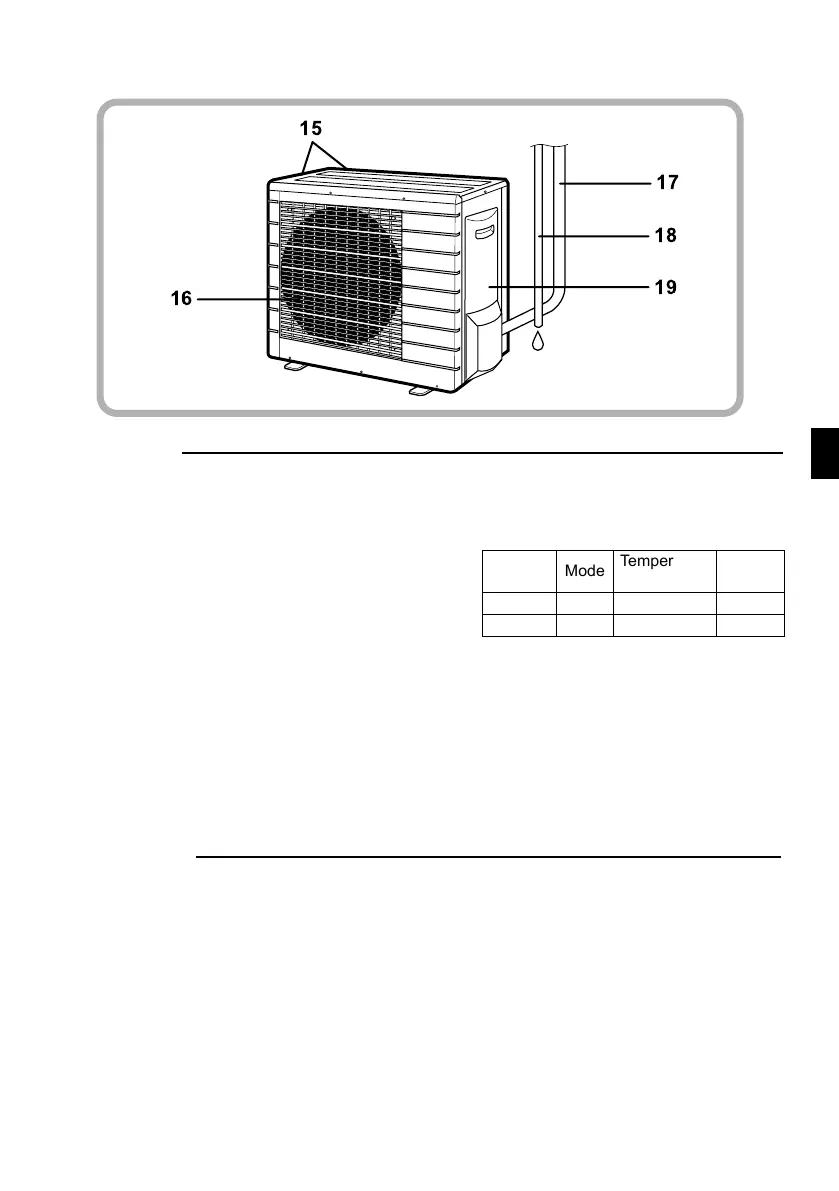

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
•
It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
%
&
'
$
#
Mode
Temperature
setting
Air flow
rate
FTN COOL
22°C
AUTO
FTYN AUTO
25°C
AUTO
