INDOOR UNIT INSTALLATION
Fixing Procedure
• Fix the indoor unit by using embedded bolt, etc. to prevent falling down of the vertically-long shaped unit.
1. Detach the air intake grille.
Remove the screw (Right, Left, total 2) holding the grille. Then, (1) lean the grille forward you, and (2) lift upward
and out. Refer Figure C.

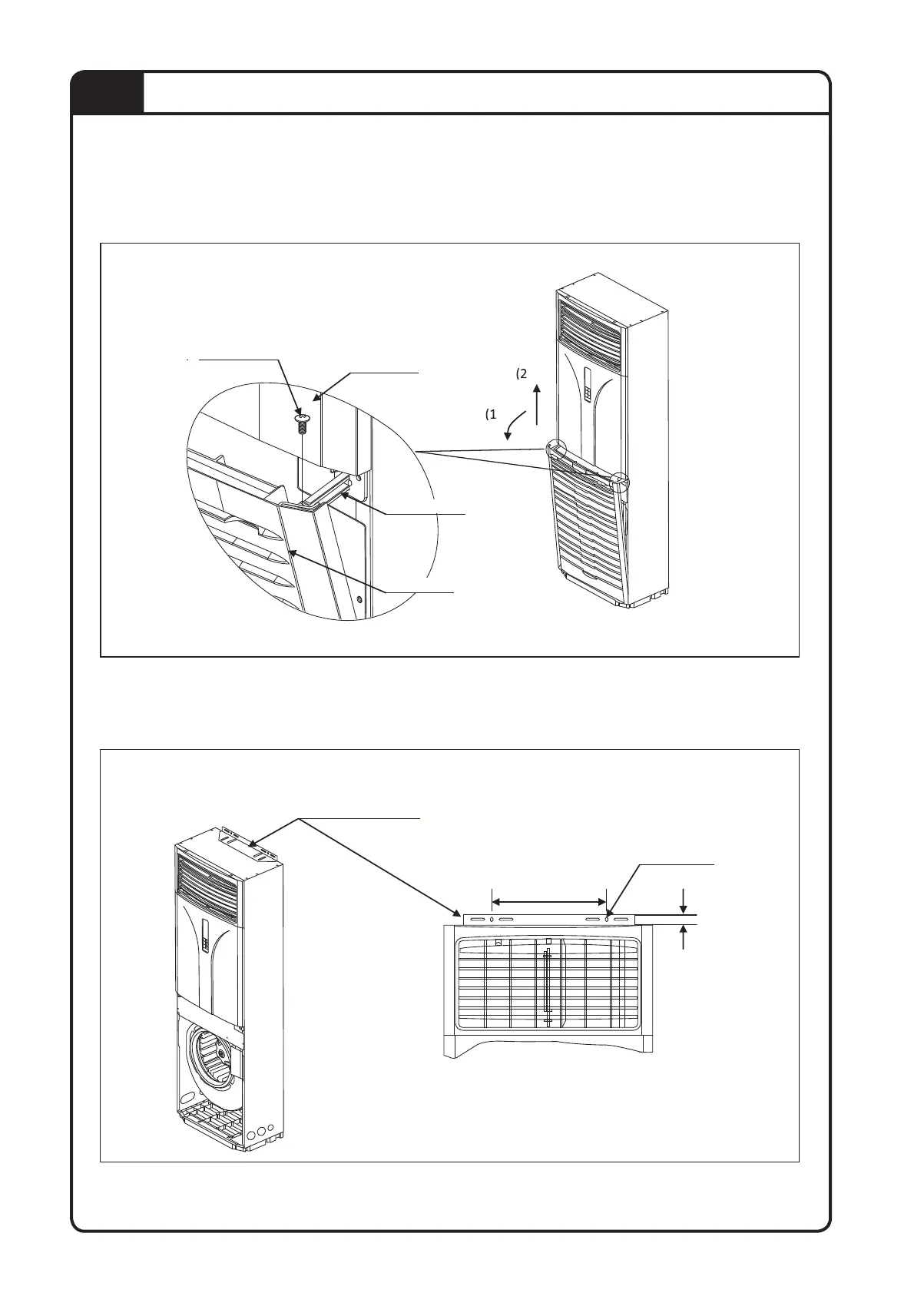

Figure C
M4 x 12 Screw
Front Panel
Grille stopper
Intake grille
2. Install the indoor units.
< Method 1 >
Fix the bracket with the attached screws to the top panel as shown in Figure D.
Then fix the indoor unit to the wall surface.
Figure D
All dimensions are in mm
Bracket for installation
330
2-7 X 15 slot
18
