9
< Method 2 >
Fix the indoor unit to the floor with Anchor bolts (to be locally procured) using fixing holes (x4) on the bottom frame.

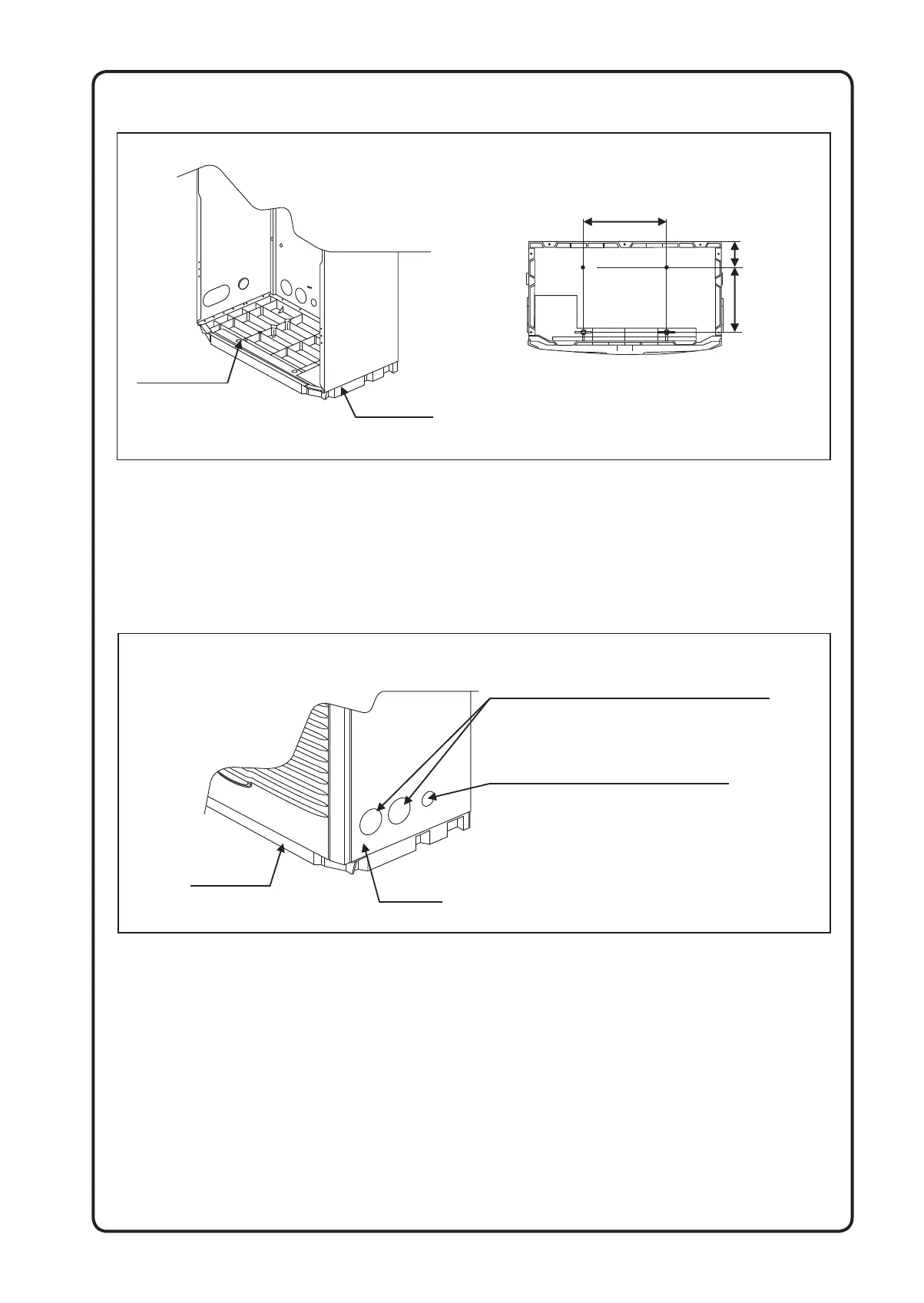

Figure E
All dimensions are in mm
Fixing Hole (x 4)
Bottom frame
<Bottom>
260
57, (79)
144, (202)
* Dimension in ( ) for 40-60 models.
For more safety precaution, fix the indoor unit with < Method 1 > and < Method 2 > during installation.
Piping and Drain Hose Installation.
• Detach the pipe retainer,
< In case of left or right piping >
1. Open the holes on the Right (Left) side panel. (Refer to Figure F).
2. Pass refrigerant pipes, drain pipes, and unit wiring through the hole on the side panel.
Figure F
Bottom frame
Side Panel
Through hole (left and right side panel, rear panel)
Through hole for wiring (left and right side panel)
