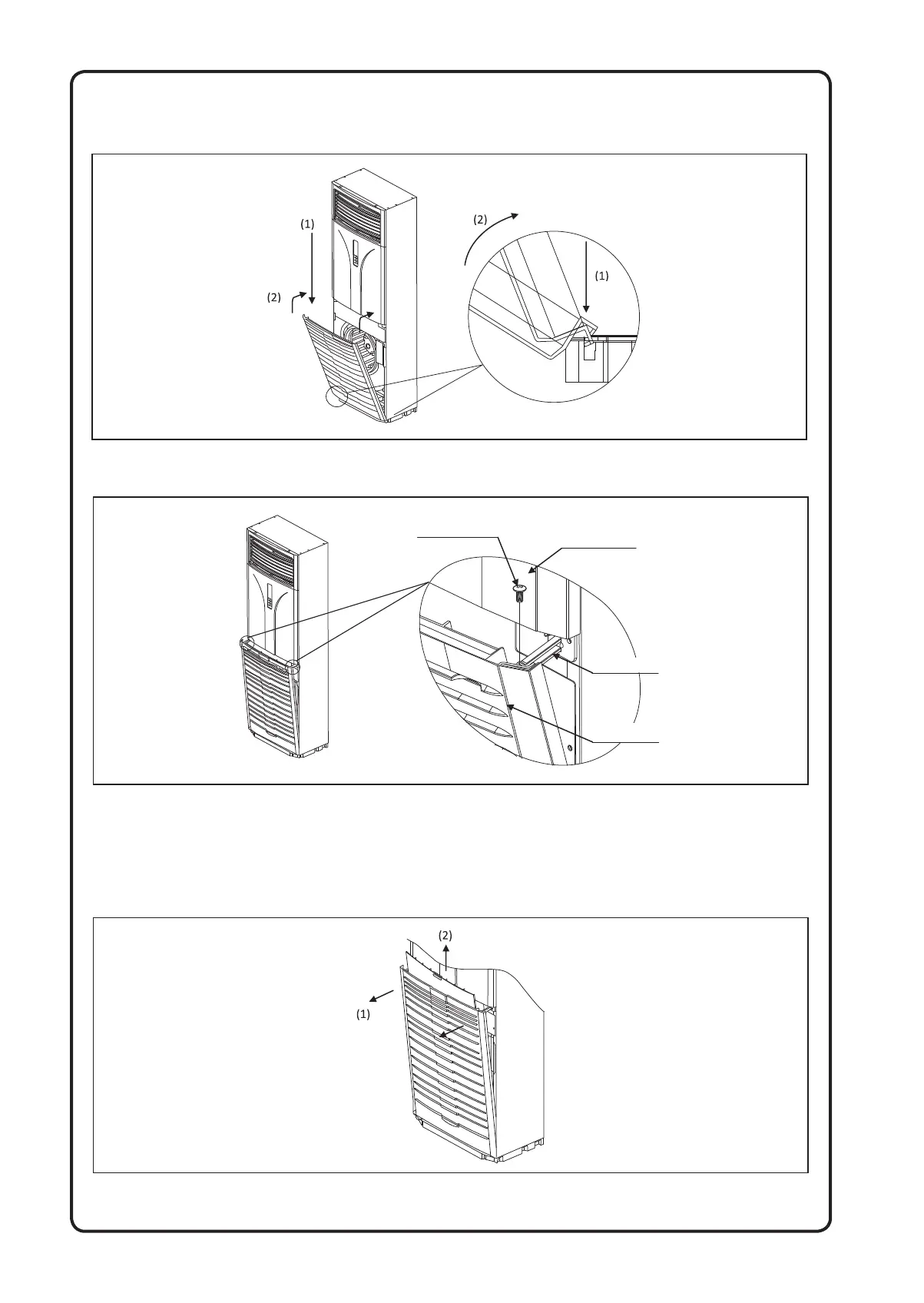

Intake Grille
Intake grille must be installed as step below.
1. Hook the air intake grille on the groove on the unit’s bottom frame in order of (1) -> (2). (Refer to Figure J).
Figure J
2. Fit the grille stopper (front panel) into the groove on the air intake grille and lock the grille down in its
original place by screw. (Refer to Figure K).
M4 x 12 Screw
Front Panel
Grille stopper
Intake grille
Figure K
If the unit needs to be service, steps below shall be followed:
1. Confirm that the unit had been switched off before servicing the unit.
2. Use screwdriver to unlock the screw on the intake grille.
3. Install the intake grille and screw the grille stopper after service and make sure the unit is proper install.
Filter Cleaning work
1. Take out the filter from the unit in order of (1) -> (2). (Refer to Figure L).
Figure L
2. Clean the filter, either use a vacuum cleaner, or wash them in water and dry in the shade.
3. Re-insert the fi lter to the original position.
