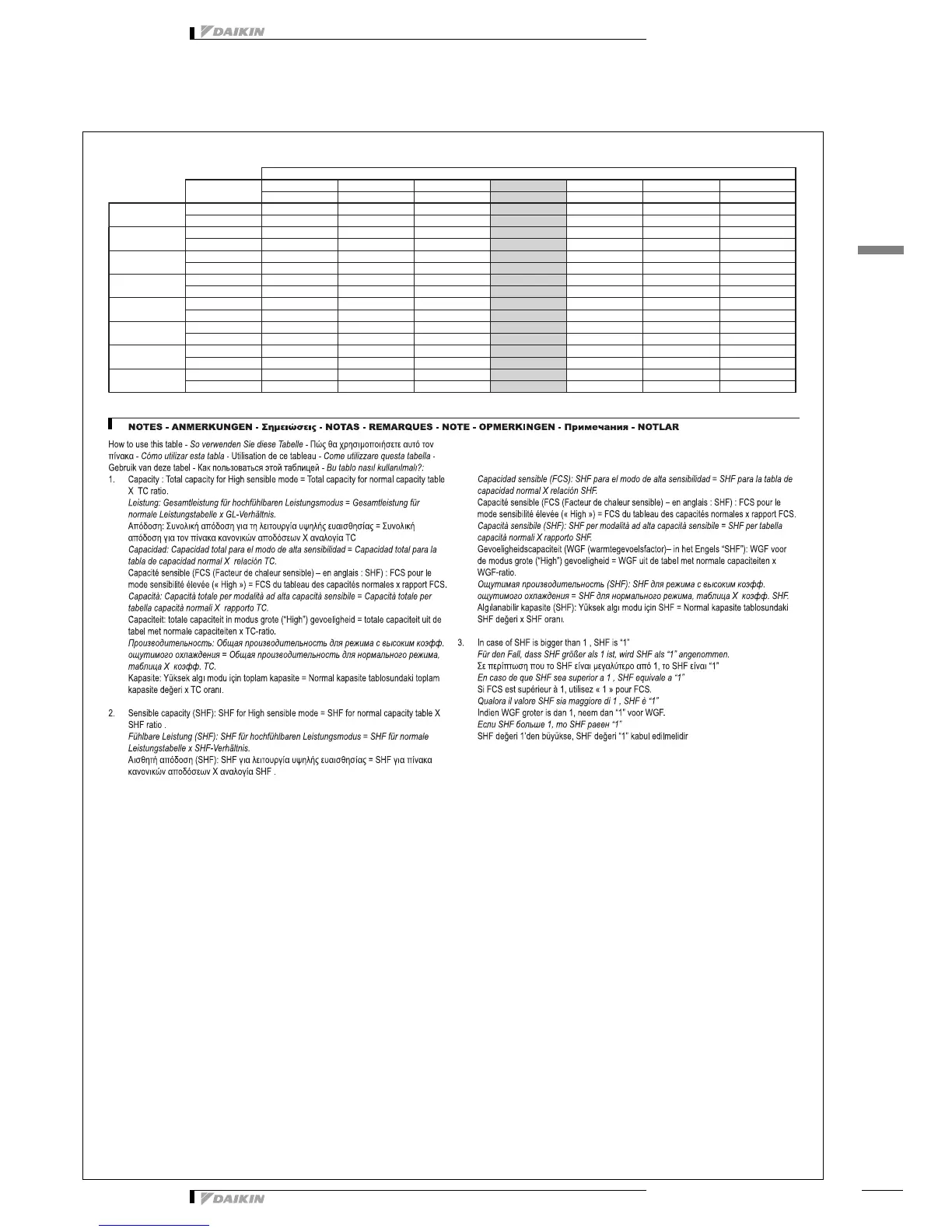

Daikin FXCQ-A - Page 13

3
1
6
• VRV Systems • Indoor Unit
11
• Indoor Unit • 2-way blow ceiling mounted cassette • FXCQ-A
6 Capacity tables
6 - 3 Capacity Correction Factor
Indoor air
temperature
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
FXCQ20
TC 0.536 0.552 0.578 0.612 0.641 0.691 0.732
SHF 1.172 1.273 1.294 1.233 1.187 1.125 1.086
FXCQ25
TC 0.546 0.559 0.570 0.603 0.637 0.690 0.730
SHF 1.147 1.250 1.306 1.245 1.192 1.127 1.089
FXCQ32
TC 0.546 0.559 0.570 0.603 0.637 0.690 0.730
SHF 1.147 1.250 1.306 1.245 1.192 1.127 1.089
FXCQ40
TC 0.540 0.548 0.571 0.611 0.645 0.697 0.744
SHF 1.167 1.273 1.300 1.231 1.182 1.122 1.080
FXCQ50
TC 0.534 0.543 0.578 0.619 0.651 0.707 0.755
SHF 1.177 1.282 1.287 1.221 1.176 1.117 1.074
FXCQ63
TC 0.546 0.562 0.571 0.604 0.633 0.688 0.727
SHF 1.144 1.245 1.307 1.246 1.198 1.129 1.091
FXCQ80
TC 0.538 0.547 0.576 0.617 0.650 0.706 0.753
SHF 1.166 1.270 1.289 1.223 1.177
1.117 1.076
FXCQ125
TC 0.549 0.561 0.579 0.617 0.651 0.708 0.751
SHF 1.132 1.228 1.280 1.218 1.171 1.113 1.084
FXCQ-A
3D079901
Capacity correction factor Te = 11°C
