ESIE15-11A | Part 1. Introduction 2. System description
23/09/16 Page 7
VRV4 indoor units
1. Outdoor units exist in different capacities. Two types of casings are used:
- “Medium” casing: REMQ5T7Y1B, REYQ8~12T7Y1B
- “Large” casing: REYQ14~20T7Y1B
- The unit REYQ8~20T7Y1B can be used as “single” unit or combined into a “multi” outdoor combination of maximum three
units (refer to databook).
- The unit REMQ5T7Y1B can only be used in multi 2* REMQ5T7Y1B or REMQ5T7Y1B + REYQ8T7Y1B.

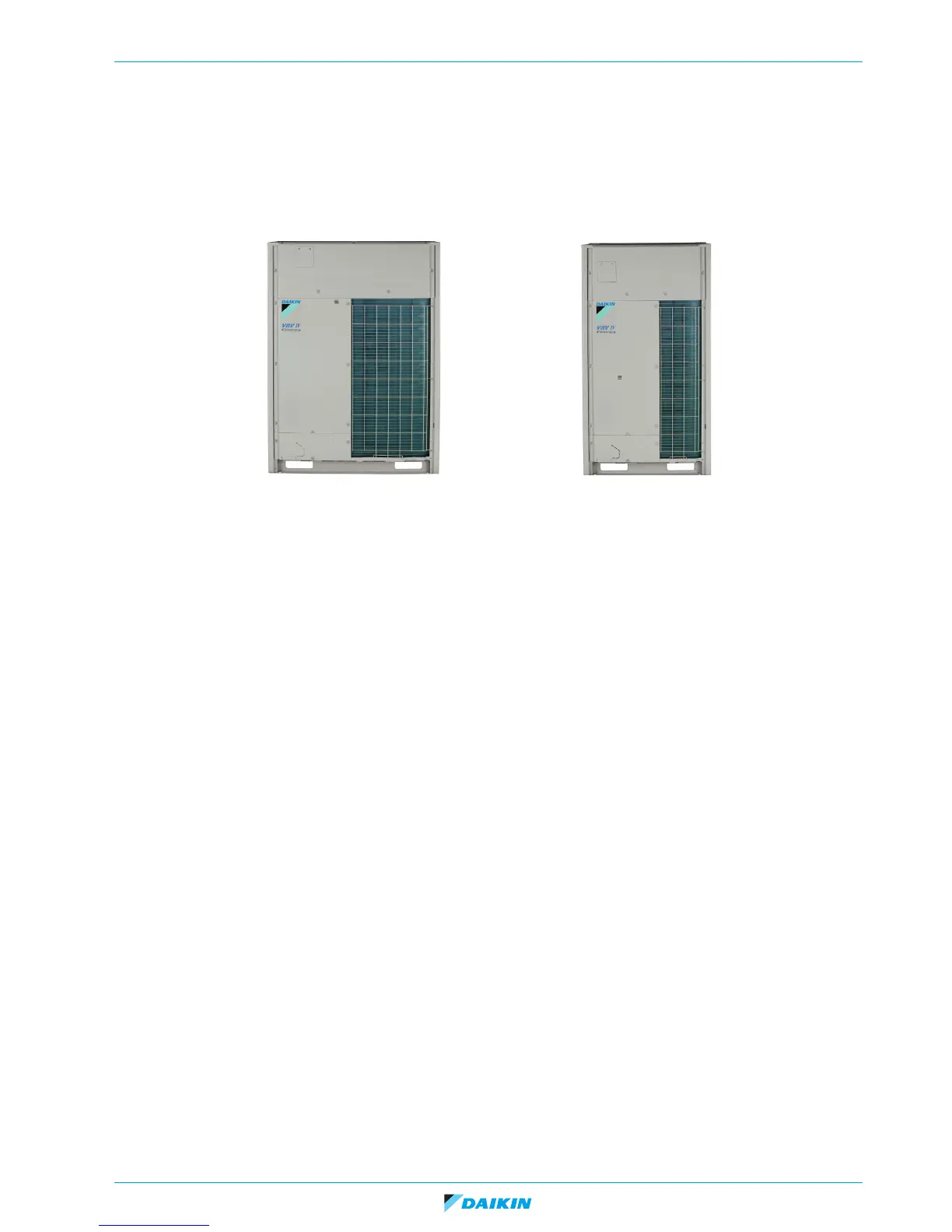

“Medium” casing“Large” casing
