Removal of Compressor Si01-782
12 Removal Procedure

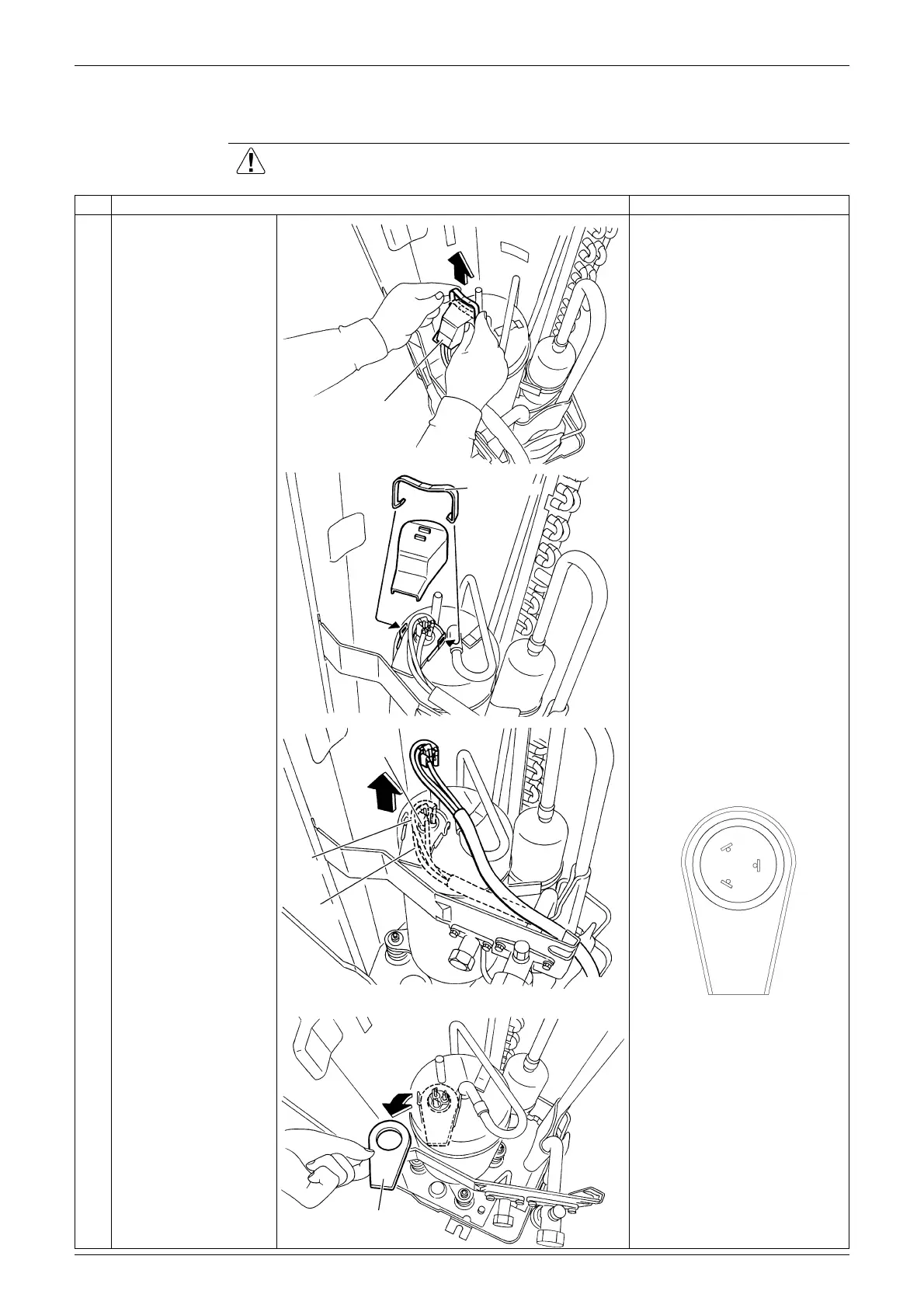

5. Removal of Compressor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1 Remove the terminal
cover.
2 Disconnect the
compressor lead wires.

Be careful so as not to burn
the compressor terminals or
the name plate.
S : Yellow
C : Blue
R : Red
3 Remove the gasket.
(R5455)
Terminal cover
Terminal cover
fixture
(R5456)
(R5457)
Yellow (S)
Blue (C)
Red (R)
(R12819)
S
R
C
Gasket
(
R5458
)
