Daikin R410A Split Series User Manual

11
English

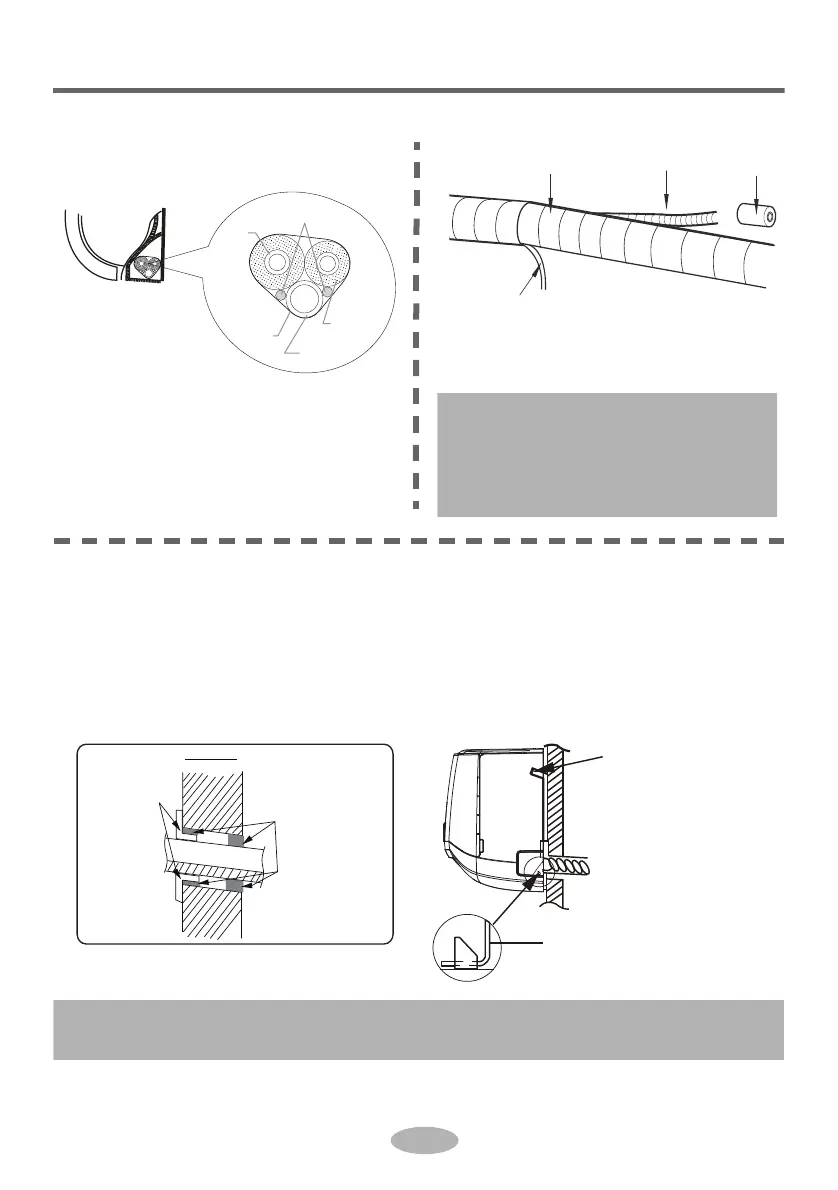

Installation of indoor unit
Step eight: bind up pipe
Step nine: hang the indoor unit
1. Put the bound pipes in the wall pipe and then make them pass through the
wall hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
5. Check if the indoor unit is installed firmly and closed to the wall.
1. Bind up the connection pipe, power
cord and drain hose with the band.
2. Reserve a certain length of drain hose
and power cord for installation when
binding them. When binding to
a certain degree, separate the indoor
power and then separate the drain
hose.
indoor unit
indoor and
outdoor power cord
band
drain hose
liquid pipe
gas
pipe
3. Bind them evenly.
4. The liquid pipe and gas pipe should
be bound separately at the end.
connection pipe drain hose
band
indoor power cord
Note:
● The power cord and control wire
can't be crossed or winding.
● The drain hose should be bound
at the bottom.
outdoorindoor
wall pipe
sealing gum
upper hook
lower hook of
wall-mounted frame
Note:
● Do not bend the drain hose too excessively in order to prevent blocking.

Daikin R410A Split Series Specifications

General

Refrigerant	R410A
Cooling Capacity	Varies by model
Heating Capacity	Varies by model
Energy Efficiency Ratio (EER)	Varies by model
Coefficient of Performance (COP)	Varies by model
Indoor Unit Noise Level	Varies by model
Outdoor Unit Noise Level	Varies by model
Indoor Unit Dimensions (HxWxD)	Varies by model
Outdoor Unit Dimensions (HxWxD)	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
