Daikin R410A Split Series User Manual

10
English

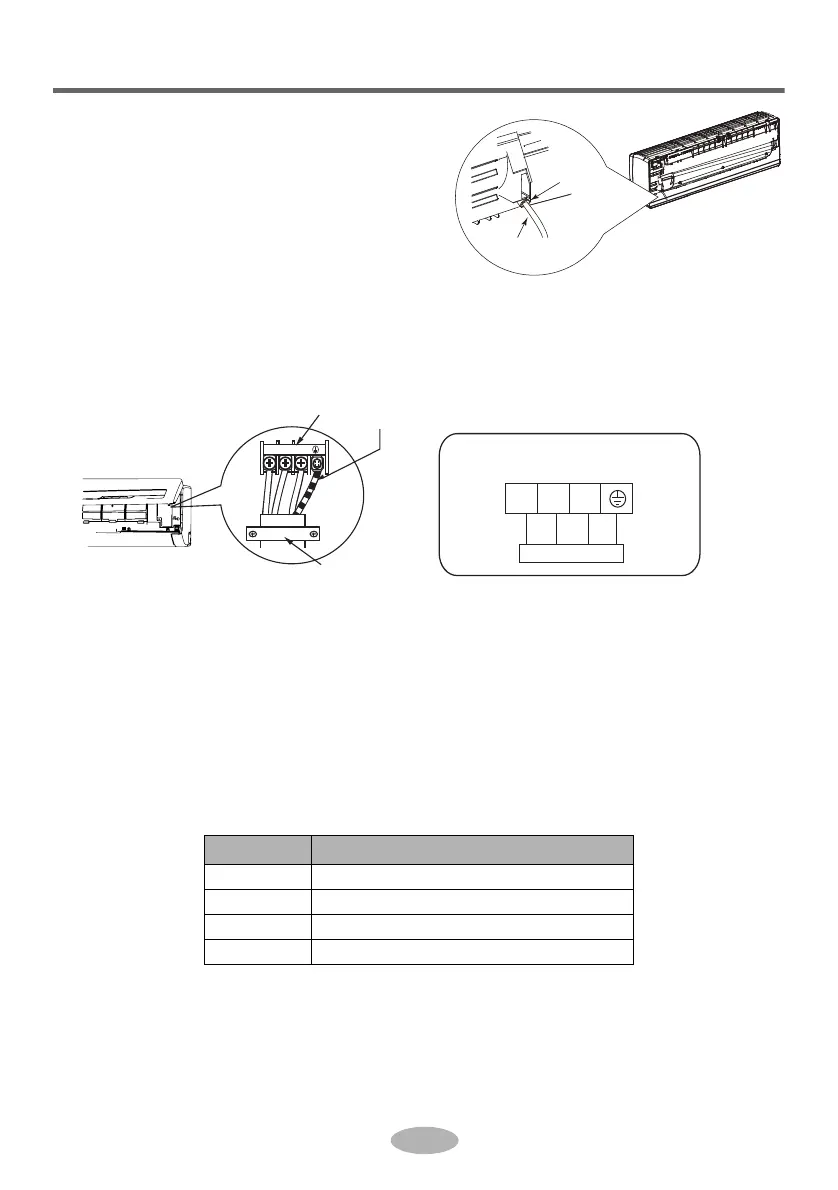

Installation of indoor unit
2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from the
front side.
3. Remove the wire clip; connect the power
connection wire to the wiring terminal
according to the color; tighten the screw
and then fix the power connection wire
with wire clip.
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
● If the length of power connection wire is insufficient (see table below), please
contact the supplier for a new one. Avoid extending the wire by yourself.
● A circuit breaker must be installed for the air conditioner in serial connection.
Class: Length of Connecting Wire (mm)
25 1800
35 1800
50 1800
60 1800
cable-
cross hole
power connection
wire
N(1) 2 3
2
N
(
1
)
3
wiring board grounding
wire
wire clip
Note: the wiring board is for reference only,
please refer to the actual one.
Outdoor unit connection
(for reference)
blue black brown
yellow-
green
