Si011360EC Compressor ASSY
Removal Procedure 13
5 Remove the 3 screws,
and then the partition
plate.
6 Remove the 3 nuts of
the compressor.
7
8
9
10
Remove the putties, if
any.
Heat up the brazed part
of the discharge side
pipe and disconnect.
Heat up the brazed part
of the suction side pipe
and disconnect.
Lift the compressor
ASSY up and remove it.

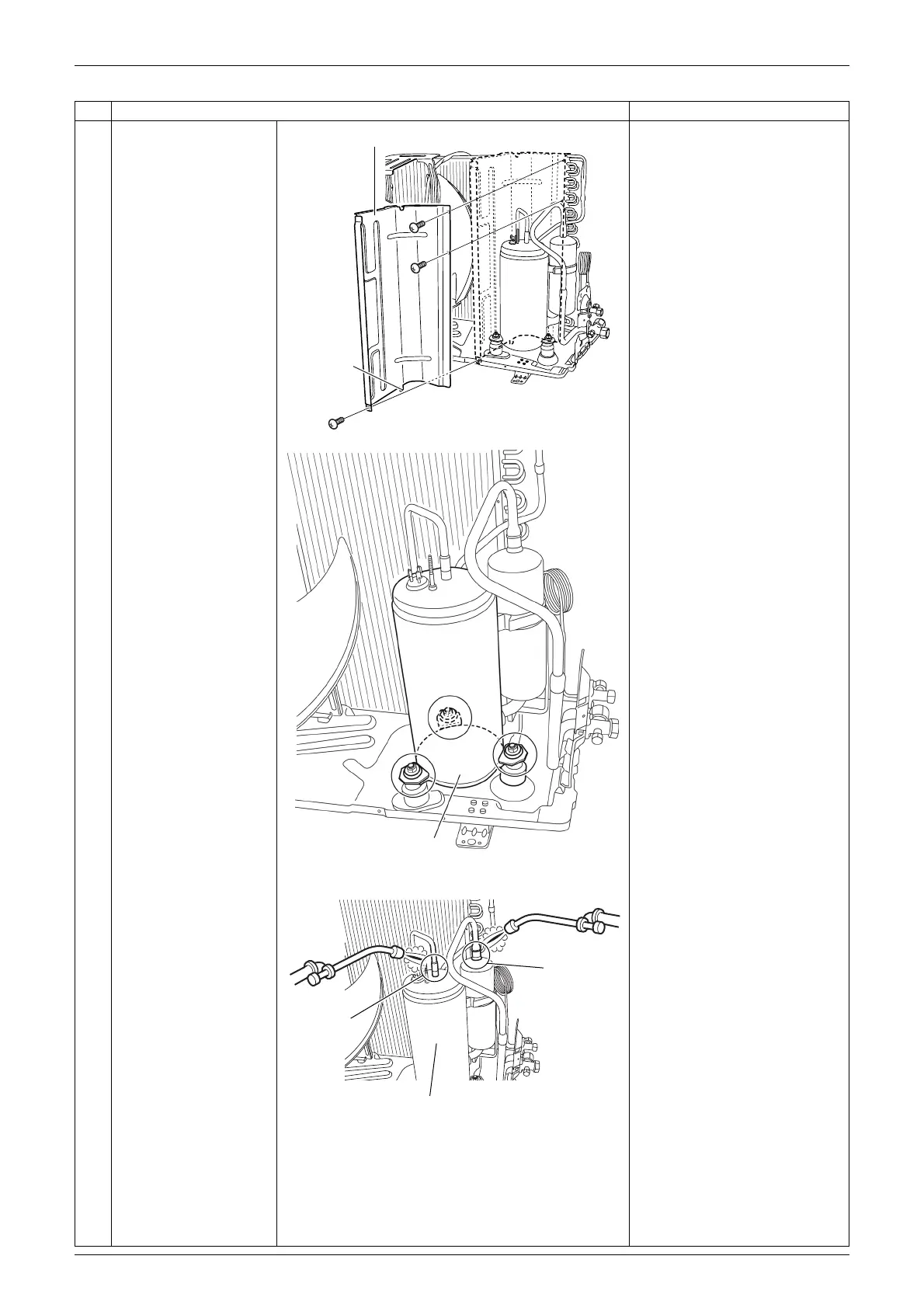

Step Procedure Points
Partition plate
(R19499)
Hook
(R19501)
Compressor
Compressor ASSY
(R19502)
Suction side
Discharge
side
