Outer Panels Si011360EC
2 Removal Procedure
1. Outer Panels
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the 4 screws,
and then the top panel.
Remove the 7 screws
of the front panel.
3
4
Unfasten the 2 right
side hooks and remove
the front panel.
Remove the screw, and
then the discharge
grille.

The discharge grille has 2
projections to prevent its
rotation. Press the projection
from the rear side and rotate
the discharge grille to
remove it.

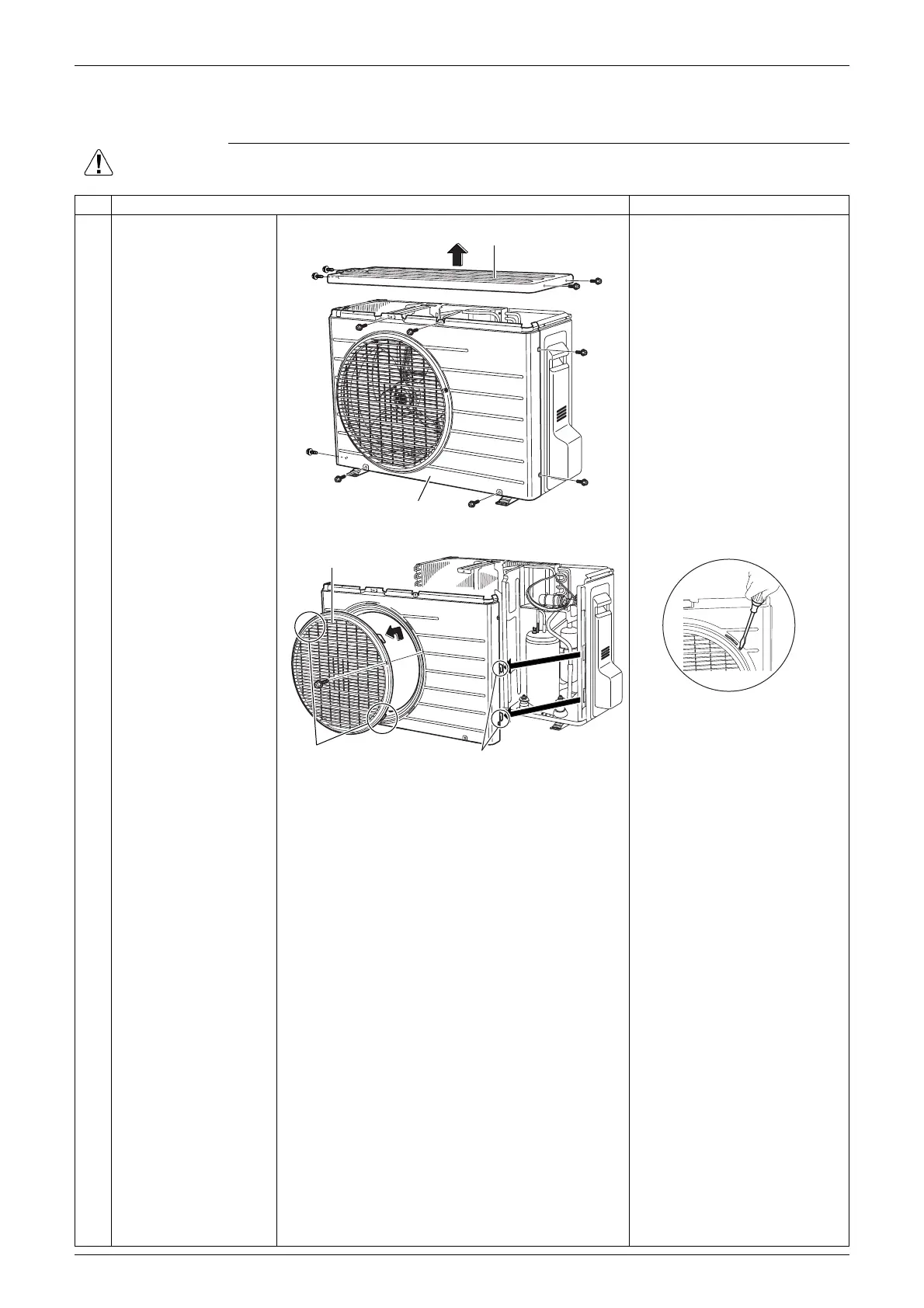

Top panel
Front panel
(R19481)
Discharge grille
Projection
(R23463)
Hook
rear side
(R19405)
