Si001560EB Outer Panels
Removal Procedure 3
5
6

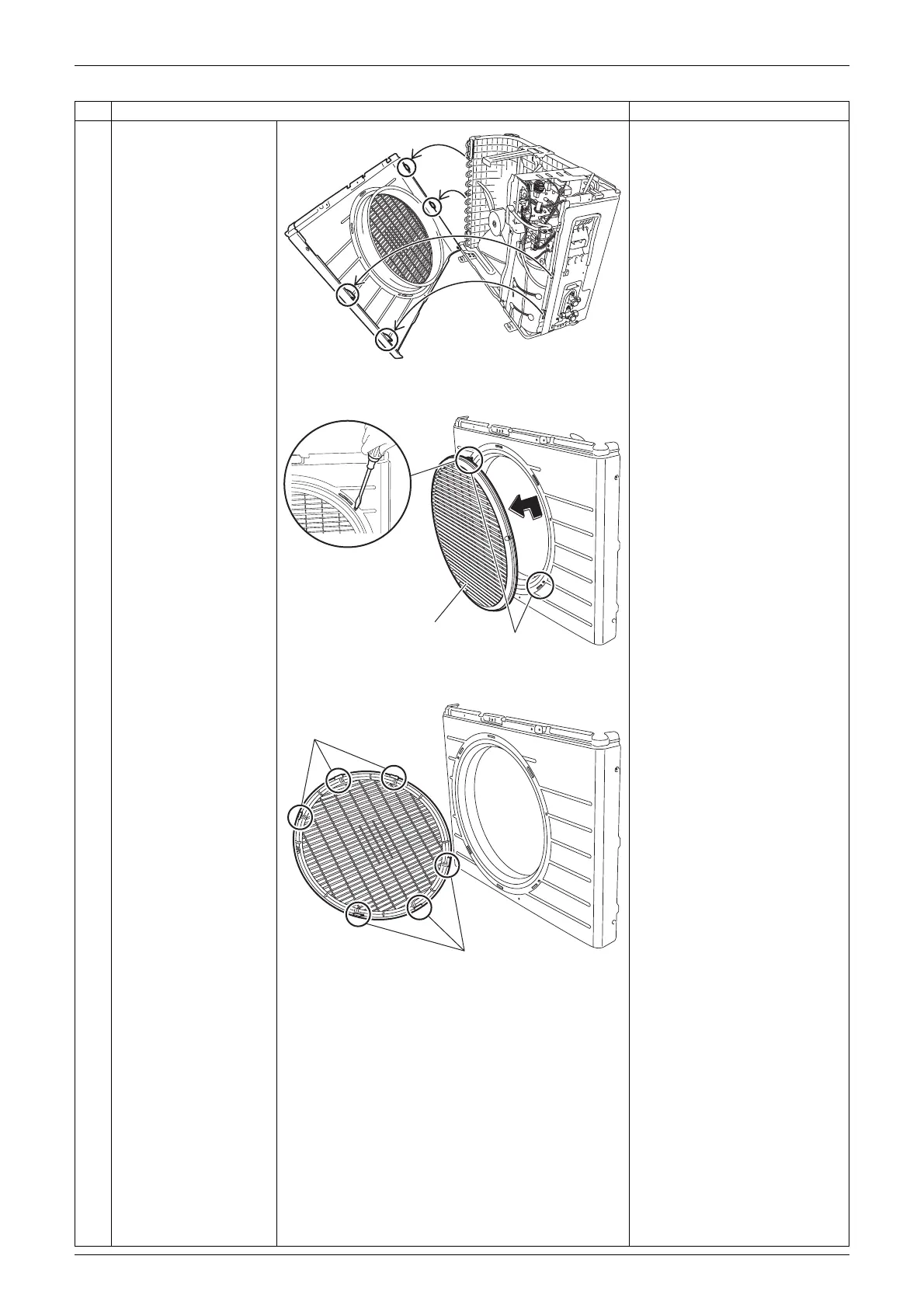

Lift up the right side of
the front panel and
unfasten the 2 hooks.
Unfasten the 2 left side
hooks and remove the
front panel.
7 Press the 2 projections
from the rear side and
rotate the discharge
grille.
8 Unfasten the 6 hooks
and remove the
discharge grille.
Step Procedure Points
(R22382)
Rear side
Projection
(rear side)
Discharge grille
(R22383)
Hook
Hook
(R22384)
