Indoor Unit SiENBE04-808_A

157 Removal Procedure

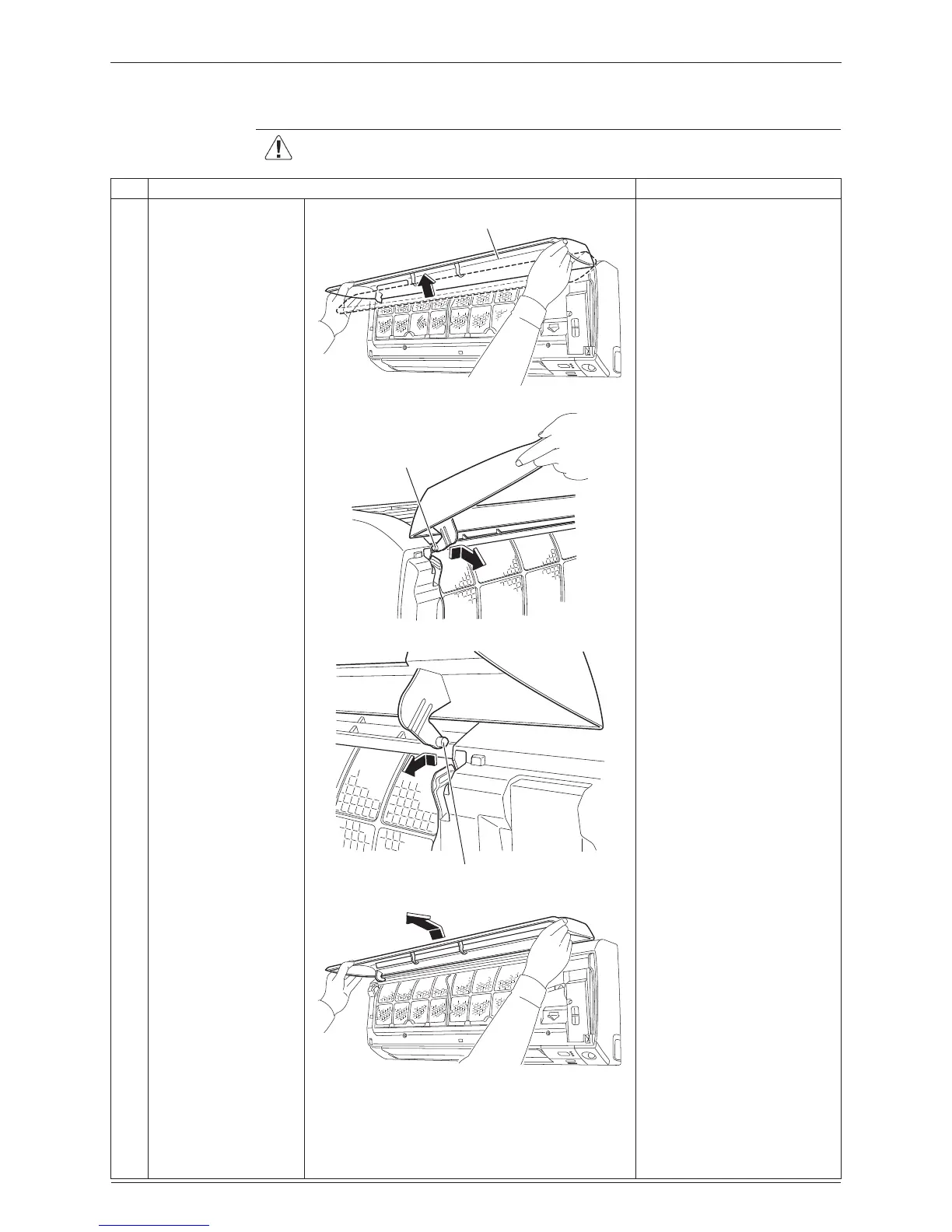

1.2 Removal of Front Panel

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

Hold the both sides of

the front panel, and

open the panel over the

position where it stops.

Slide the left rotary

shaft to the right and

release it.

Slide the right rotary

shaft to the left and

release it.

Remove the front panel.

(R7906)

Front panel

(R7907)

Rotary shaft

(R7909)

Rotary shaft

(R7910)

SiENBE04-808_A.pdf 169 21/02/2011 13:20:04
