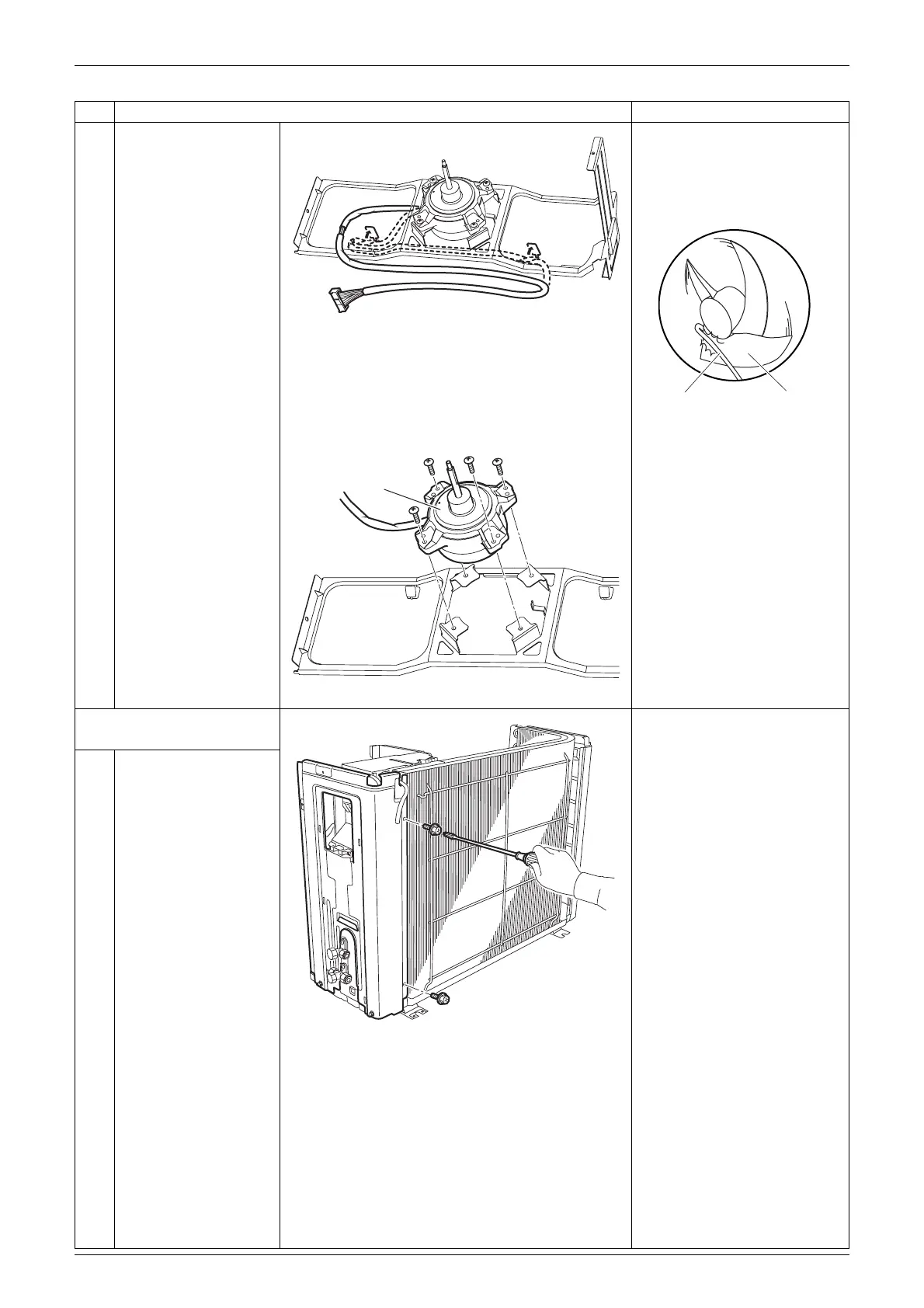

Daikin RKS20J2V1B Service Manual Removal Procedure

Removal of Outer Panels / Fan Motor Si001067
8 Removal Procedure
8
Open the 2 hooks and
release the fan motor
lead wire.

When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
9
Remove the 4 screws
and remove the fan
motor.
4. Remove the right side
panel.
1
Remove the 2 screws
on the rear side.
Step Procedure Points
(R11835)
(R3249)
Lead wire Outdoor fan
(R12311)
Fan motor
(R12162)
