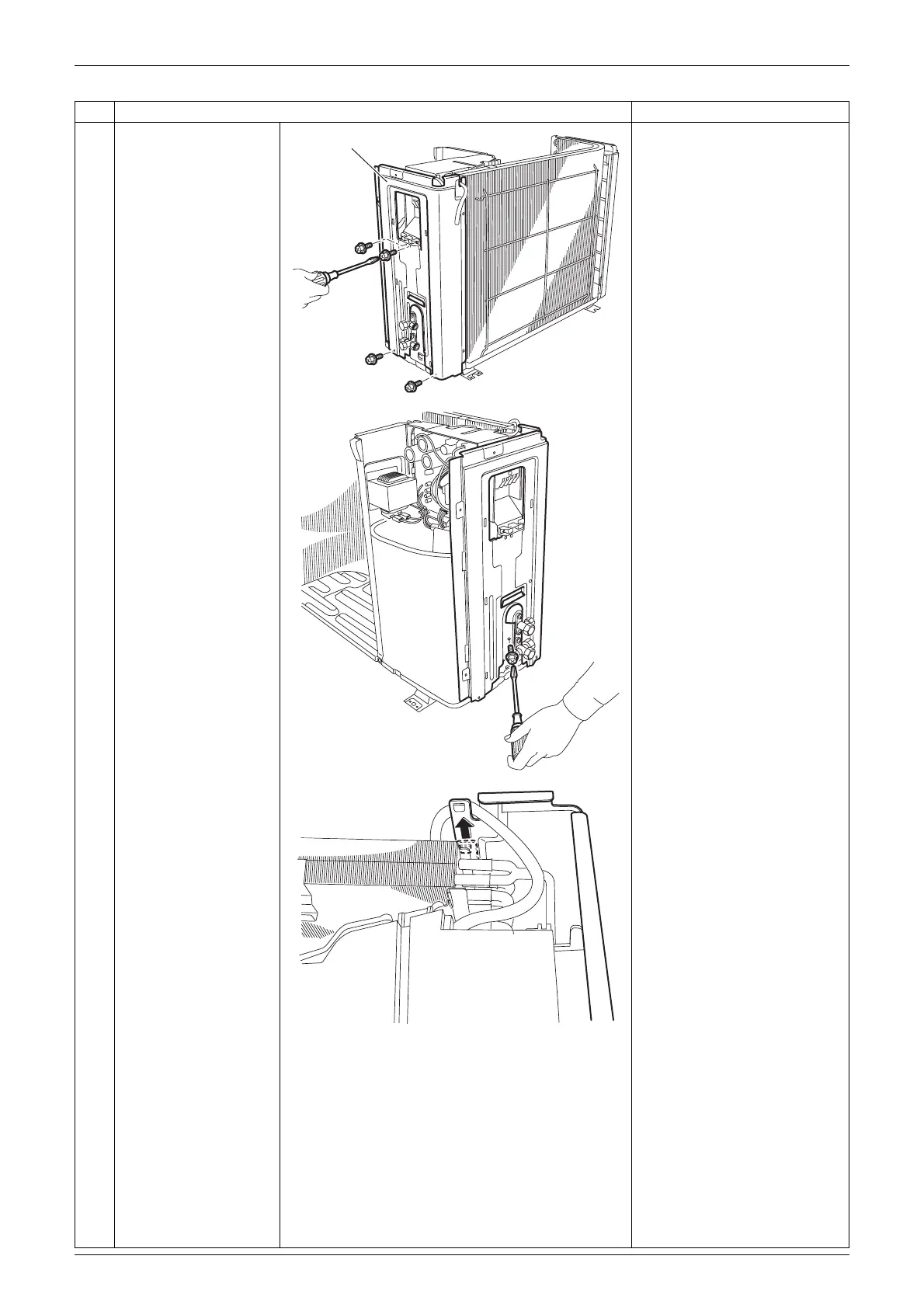

Si001067 Removal of Outer Panels / Fan Motor
Removal Procedure 9
2
Remove the 4 screws
on the right side panel.
3
Remove the screw near
the stop valves.
4
Unfasten the hook on
the rear side.
When reassembling, make
sure to fit the hook.
Step Procedure Points
(R12163)
Right side panel
(R11839)
(R11842)
