Daikin RKS20J2V1B Service Manual Removal Procedure

Si001067 Removal of Outer Panels / Fan Motor
Removal Procedure 5

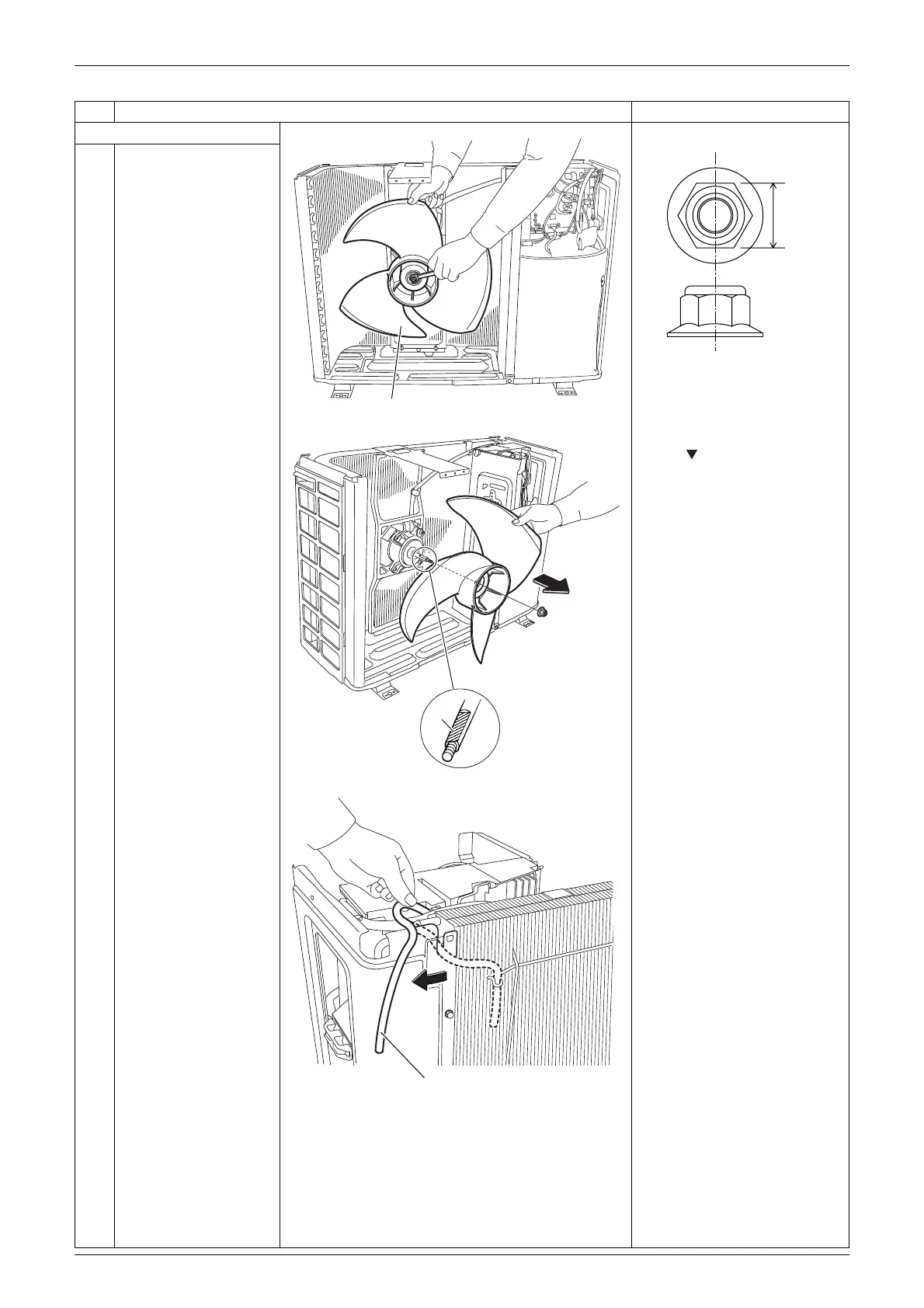

3. Remove the fan motor.

Nut size: M6
1
Remove the nut of the
outdoor fan.
2
Remove the outdoor
fan.

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
3
Release the outdoor
temperature thermistor.
Step Procedure Points
(R13741)
Outdoor fan
10 mm
(R12236)
(R11828)
D-cut
(R11829)
Outdoor temperature
thermistor
