Removal of Outer Panels / Fan Motor Si001067
6 Removal Procedure
4

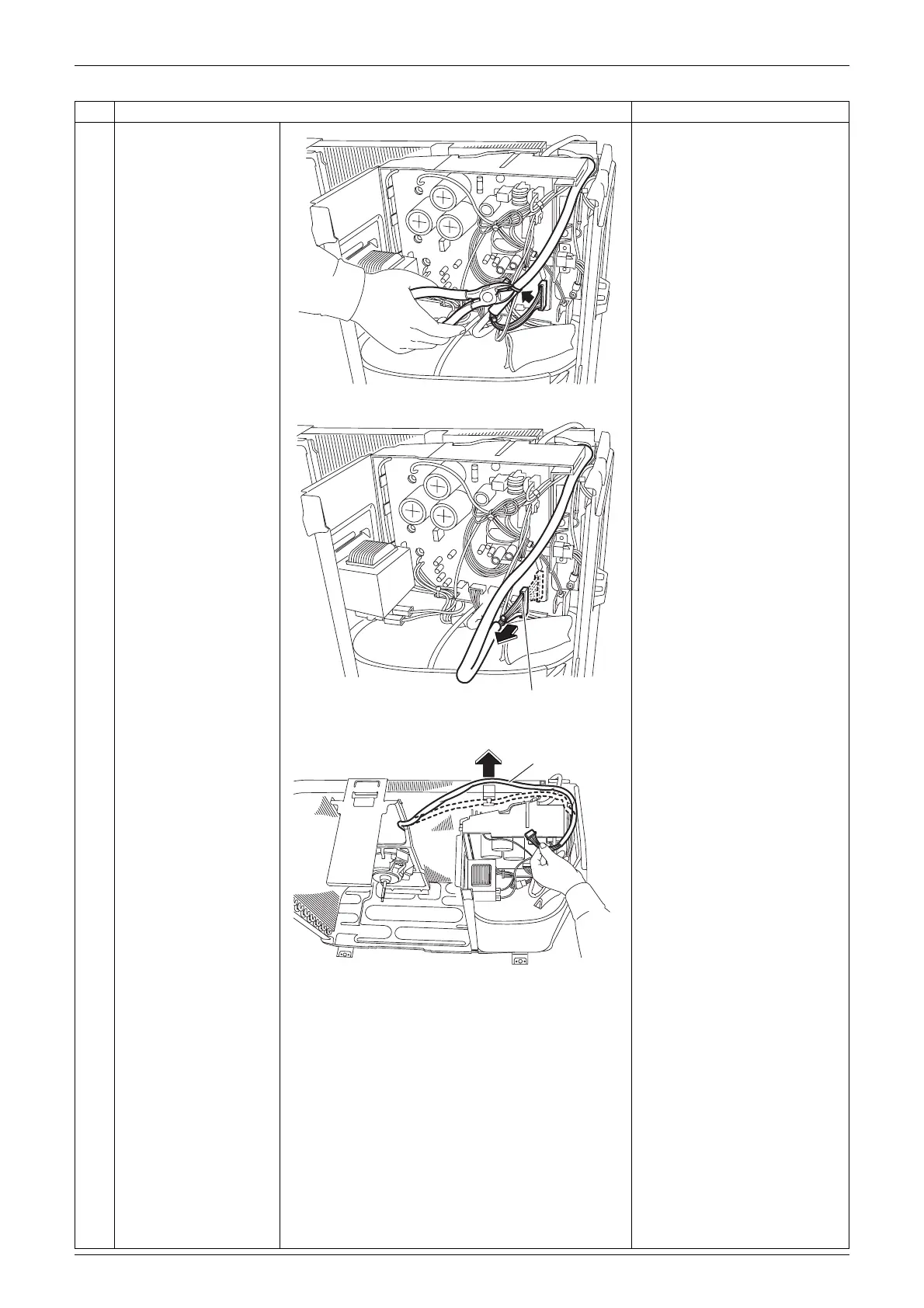

Cut the clamp.
Some models do not have
the clamp.
5
Disconnect the
connector for the fan
motor [S70].
6
Release the fan motor
lead wire from the hook.
Step Procedure Points
(R11830)
(R16678)
[S70]
(R11832)
Fan motor
lead wire
