SiENBE04-808_A Piping Diagrams
Appendix 296

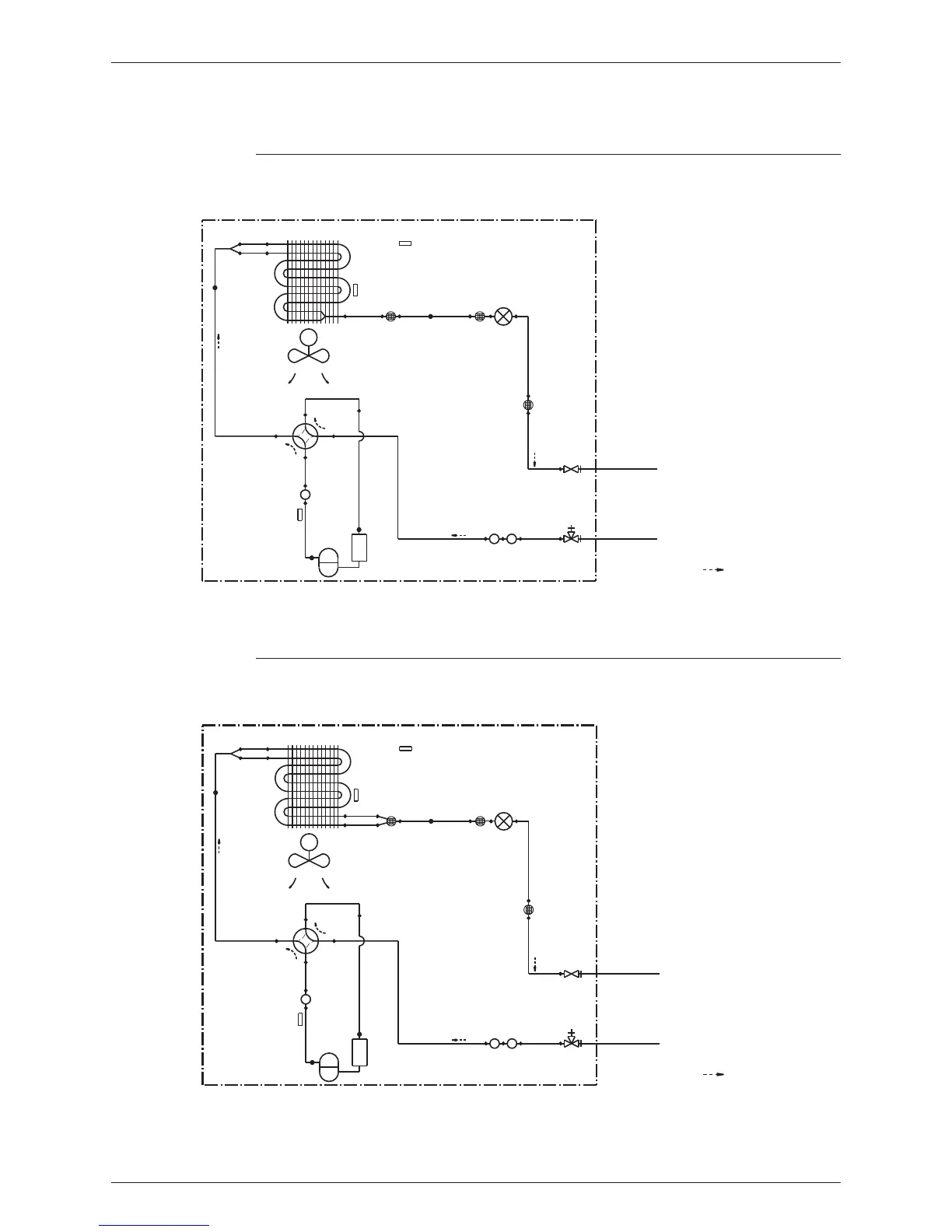

1.2 Outdoor Unit
1.2.1 Cooling Only
RKS20G2V1B, RKS20G2V1B9
RKS25/35G2V1B, RKS25/35G2V1B9
9.5CuT
7.0CuT
(6.4CuT)
9.5CuT
6.4CuT
7.0CuT
ACCUMULATOR
FIELD PIPING
9.5CuT
7.9CuT
(9.5CuT)
MUFFLERMUFFLER
9.5CuT
7.0CuT
HEAT EXCHANGER
6.4CuT
M
OUTDOOR UNIT
MUFFLER
COMPRESSOR
9.5CuT
PROPELLER FAN
FIELD PIPING
6.4CuT
7.9CuT
9.5CuT
φ.4.0xD. 2.0CuT
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER
THERMISTOR
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MOTOR OPERATED
VALVE
LIQUID STOP
VALVE
GAS STOP
VALVE
FOUR WAY
VALVE
NORMALLY:OFF
DISCHARGE PIPE
THERMISTOR
REFRIGERANT FLOW
COOLING
3D059588A
9.5CuT
MUFFLER
COMPRESSOR
7.0CuT
9.5CuT
9.5CuT
HEAT EXCHANGER
4.8CuT
(6.4CuT)
(9.5CuT)
PROPELLER FAN
M
FIELD PIPING
ACCUMULATOR
9.5CuT
6.4CuT
7.9CuT
6.4CuT 6.4CuT
FIELD PIPING
MUFFLER
7.0CuT
4.8CuT
OUTDOOR UNIT
MUFFLER
9.5CuT
9.5CuT 7.9CuT
φ.4.0xD. 2.0CuT
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER
THERMISTOR
MOTOR OPERATED
VALVE
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
LIQUID STOP
VALVE
GAS STOP
VALVE
FOUR WAY
VALVE
NORMALLY:OFF
DISCHARGE PIPE
THERMISTOR
REFRIGERANT FLOW
COOLING
3D059589B
