1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

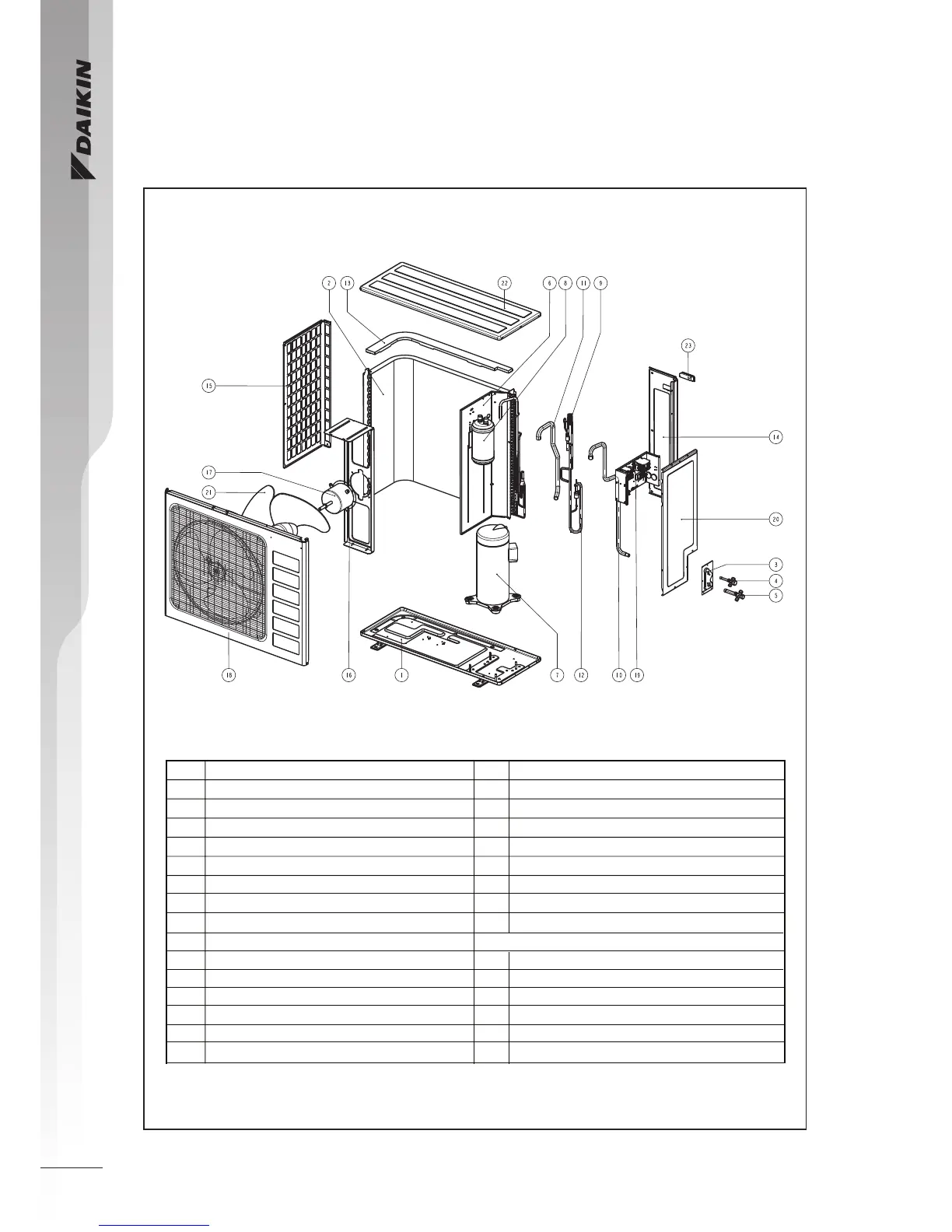

NO. PARTS DESCRIPTION NO. PARTS DESCRIPTION
1 ASSY., BASE PAN
2 ASSY., COIL
3 PALTE, FLARE VALVE
4 FLARE VALVE 3/8”
5 FLARE VALVE 5/8”
16 MOTOR BRACKET
17 FAN MOTOR
18 ASSY., FRONT PANEL
19 ASSY., CONTROL PANEL
20 SERVICE PANEL
21 FAN BLADE
22 TOP PANEL
23 PLASTIC HANDLE
6 PARTITION
7 COMPRESSOR
8 ACCUMULATOR
9 ASSY., CAPILLARY TUBE
10
SUCTION PIPE
11 TUBE ACCUMULATOR TO SUCTION
12 DISCHARGE PIPE
13 INSULATION
14 BACK PANEL, RIGHT
15 SIDE PANEL, LEFT
PARTS NOT IN THE DIAGRAMS
Model : R35DV1, R40/50/61DY1, RN35DV1, RN40/50/61DY1
PHASE SEQUENCER
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
CAPACITOR, FAN MOTOR
CAPACITOR, COMPRESSOR
TXV
