Functional Parts Layout SiBE31-801_C
65 Refrigerant Circuit

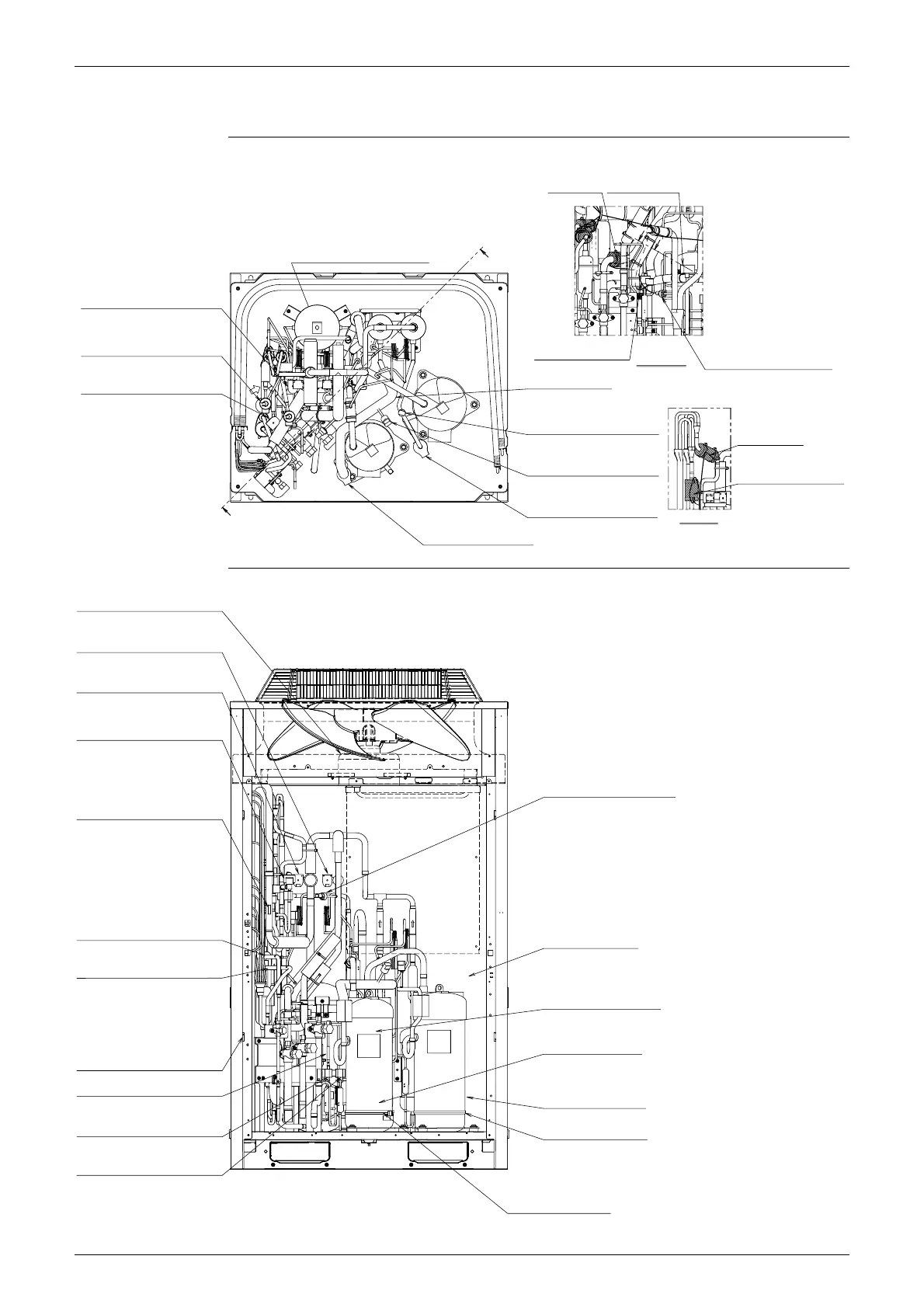

2.2 RTSQ10P, 12P
Plan
Front View
REFRIGERANT REGULATOR
SOLENOID VALVE
(SVL)
(Y4S)
ELECTRONIC EXPANSION VALVE
(SUBCOOLING)
(Y3E)
SOLENOID VALVE
(SVE)
(Y6S)
N
M
THERMISTOR
(INV. DISCHARGE PIPE)
(R31T)
M
THERMISTOR
(SUCTION)
(R8T)
SOLENOID VALVE
(HOT GAS)
(Y5S)
ELECTRONIC EXPANSION
VALVE (CHARGE)
(Y2E)
SECTION M-M
INSULATION TUBE
HIGH PRESSURE SWITCH
(S2PH)
HIGH PRESSURE SWITCH
(S1PH)
THERMISTOR
(STD1 DISCHARGE PIPE)
(R32T)
LOW PRESSURE SENSOR
(S2NPL)
THERMISTOR
(LIQUID)
(R9T)
THERMISTOR
(SUBCOOLING HEAT EXCH. GAS)
(R5T)
VIEW N
INVERTER FAN
(M1F)
FOUR WAY VALVE (PIPE)
(Y2S)
FOUR WAY VALVE (HEAT EXC.)
(Y3S)
ELECTRONIC EXPANSION VALVE
(MAIN)
(Y1E)
THERMISTOR
(HEAT EXC. GAS)
(R2T)
THERMISTOR
(R7T)
THERMISTOR
(R6T)
THERMISTOR
(HEAT EXCH. DEICER)
(R4T)
EARTH WIRE
SOLENOID VALVE (SVG)
(Y1S)
SOLENOID VALVE (SVO)
(Y7S)
HIGH PRESSURE SENSOR
(S1NPH)
THERMISTOR (AIR)
(R1T)
SOLENOID VALVE (SVT)
(Y8S)
COMPRESSOR (INV.)
(M1C)
COMPRESSOR (STD1)
(M2C)
CRANKCASE HEATER
(E2HC)
CRANKCASE HEATER
(E1HC)
