Daikin RX25E2V1B - Control PCB Screw and Hook Removal

26 pages

To Next Page

To Previous Page

Si00-772 Removal of PCB

Removal Procedure 13

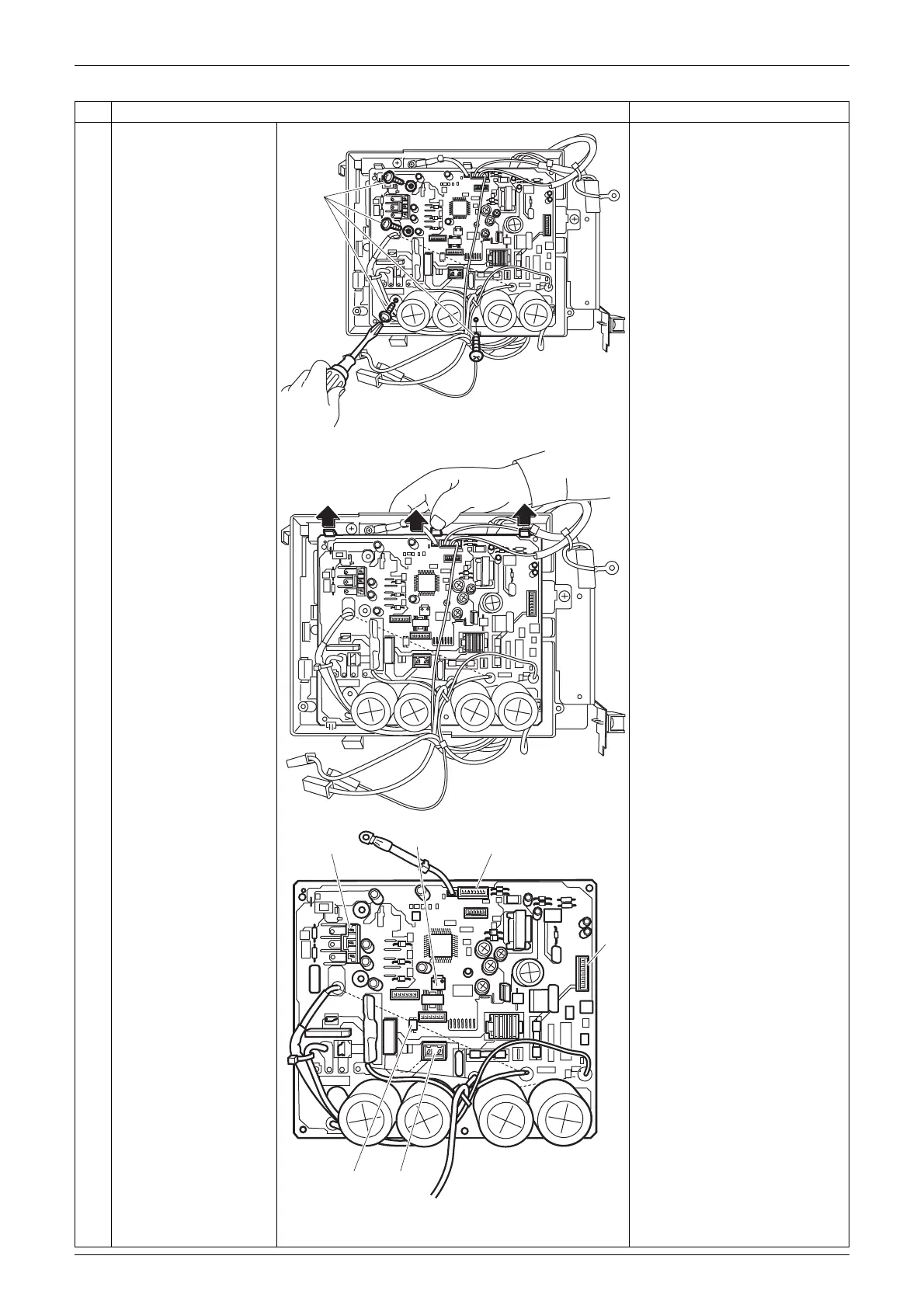

Remove the 4 screws.

Unfasten the 3 hooks

on the upper side.

Lift and pull out the

control PCB.

[S20]: electronic expansion

valve coil

[S30]: compressor

[S40]: overload protector

[S70]: fan motor

[S80]: four way valve coil

[S90]: thermistors

Step

Procedure Points

(R7258)

Screw

(R7259)

(R19144)

[S80][S20]

[S90][S30]

[S40]

[S70]
