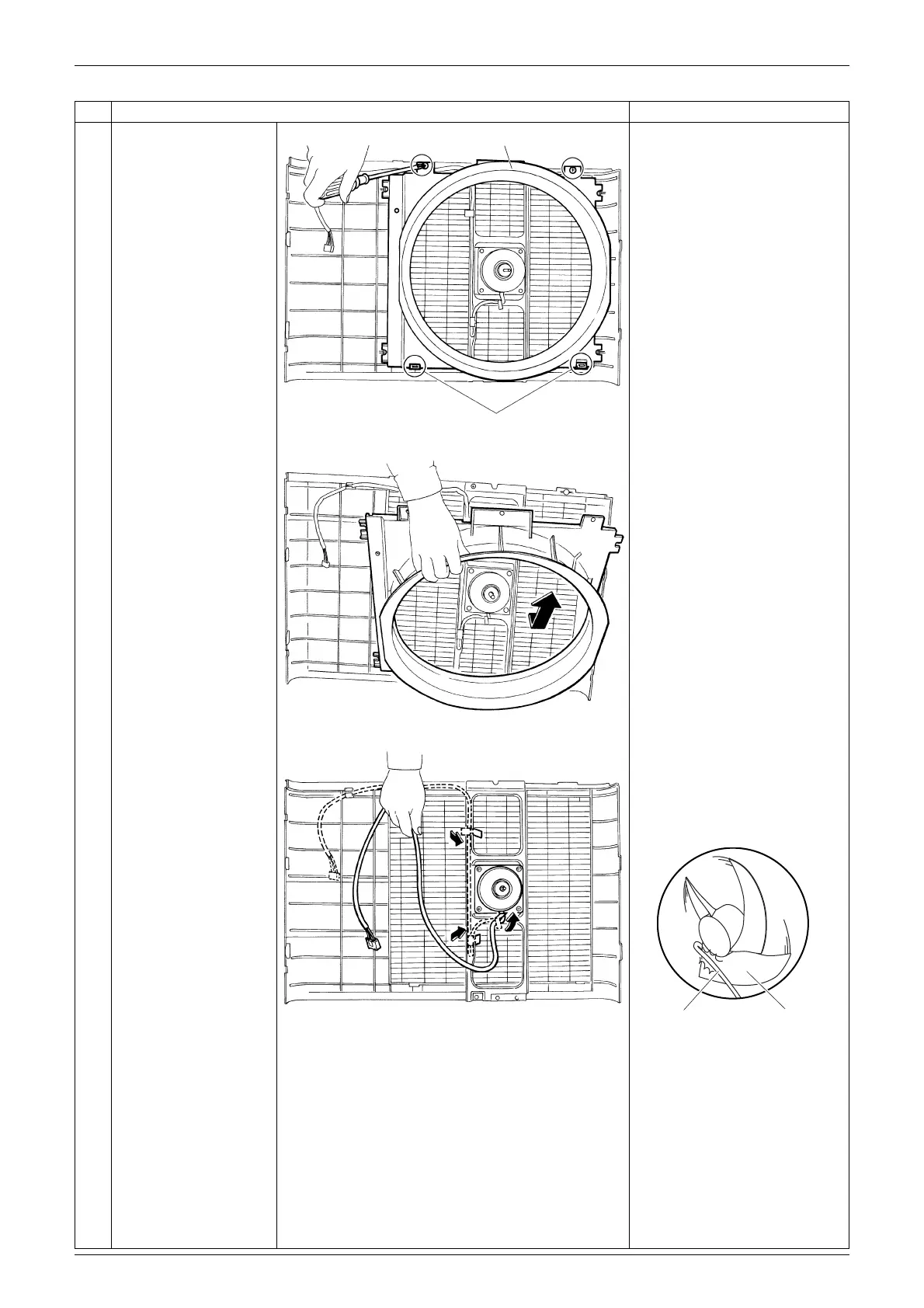

Si00-772 Removal of Outer Panels / Fan Motor
Removal Procedure 5
3
Remove the 2 screws
and lift the bell mouth to
unfasten the hooks.
4
Remove the bell mouth.
5
Open the hooks and
release the fan motor
lead wire.
When reassembling, put the
fan motor lead wire through
the back of the fan motor (so
as not to be entangled with
the outdoor fan)
Step
Procedure Points
(R12422)
Hooks
Bell mouth
(R3247)
(R3248)
(R3249)
Lead wire Outdoor fan
To Next Page
