Removal of Outer Panels / Fan Motor Si00-772

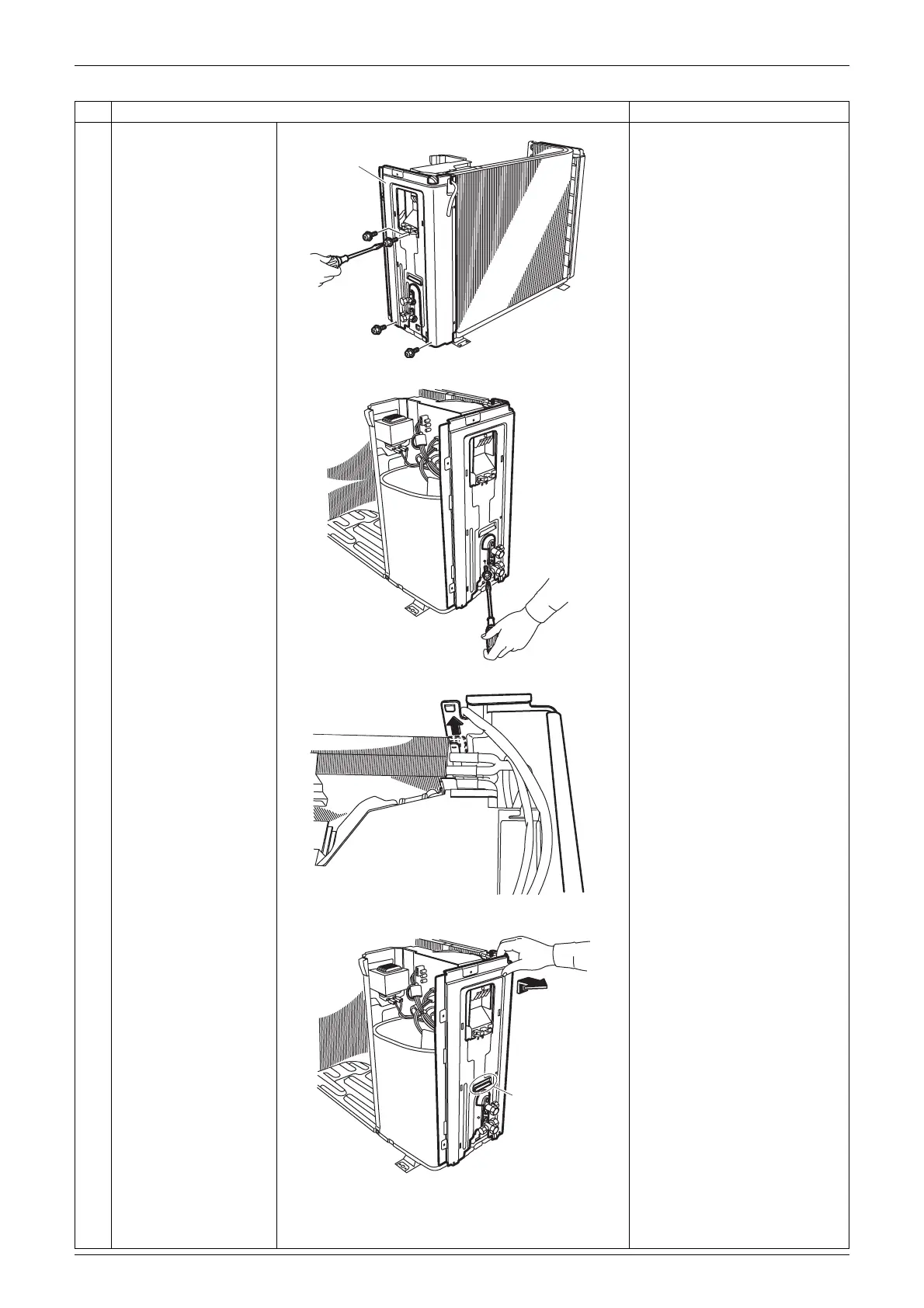

8 Removal Procedure
4
Remove the 4 screws
on the right side panel.
5
Remove the screw near
the stop valves.
6
Unfasten the hook on
the rear side.

When reassembling, make
sure to fit the hook.
7
Lift up the right side
panel and remove it.

When reassembling, make
sure to fit the hook.
Step
Procedure Points
(R7210)
Right side panel
(R7211)
(R7212)
(R7213)
Hook
